IMT CMD.CTRL - Base Unit (70735199)

Radio Remote 93 Section - 13
Operator’s - Manual # 99906363

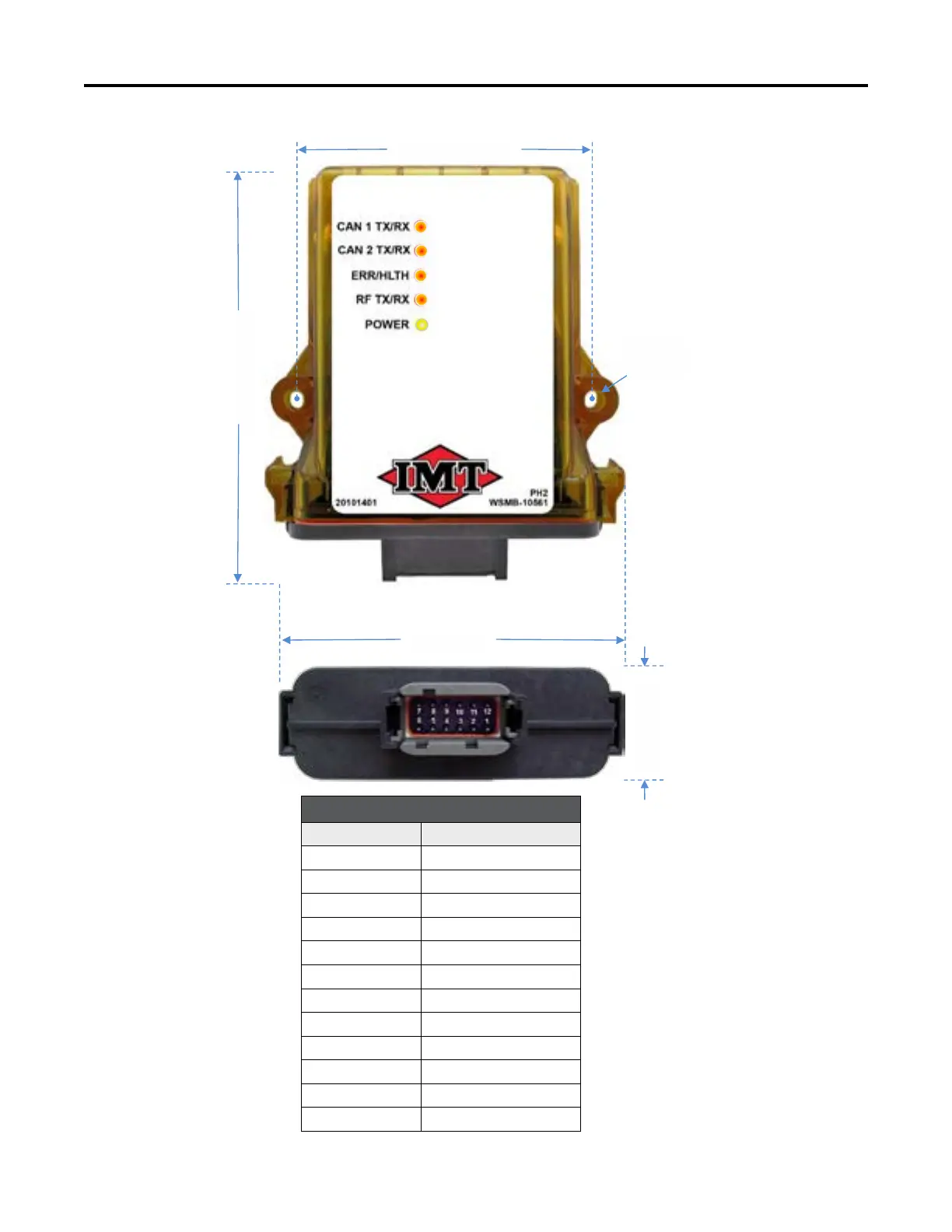

Base Unit (70735199)
BASE UNIT WIRING TABLE
PIN SIGNAL NAME
P1:1 +VDC IN
P1:2 UNUSED
P1:3 UNUSED
P1:4 CAN H1
P1:5 CAN L1
P1:6 UNUSED
P1:7 CAN H2
P1:8 CAN L2
P1:9 UNUSED
P1:10 RS-232TX
P1:11 RS-232RX
P1:12 –VDC IN
118 mm (4.7")
36
mm
(1.4
"
)
P1
102 mm (4") centers
7.4 mm
(
0.29") dia.
133 mm (5.25")
