IMT CMD.CTRL - Glossary of Icons - Radio Remote

Crane Glossary Icons 98 Section - 14
Operator’s - Manual # 99906363
Glossary of Icons - Radio Remote

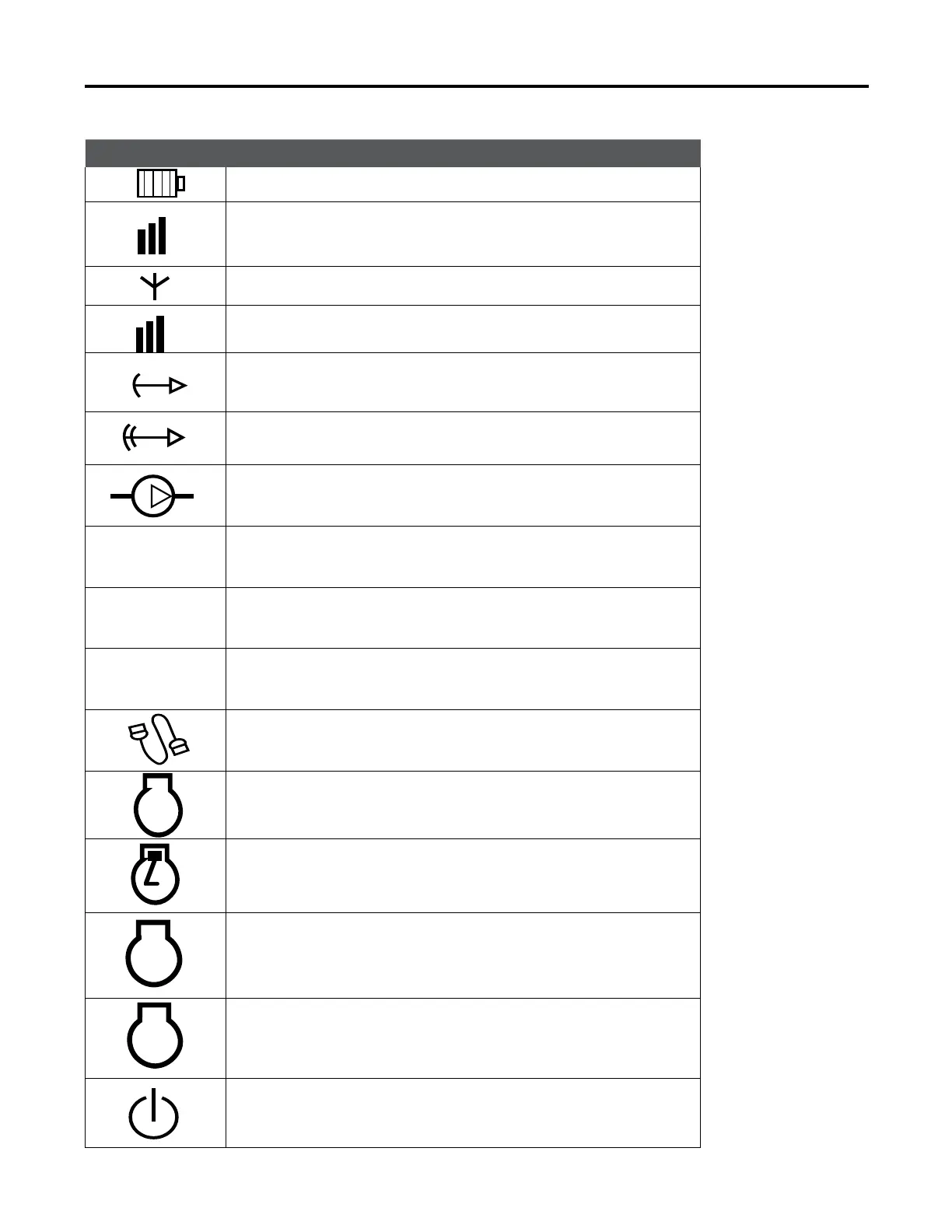

ICONS DESCRIPTION
A visual indication of the battery’s state of charge
Recieved signal strength at the remote
Indicates wireless connection
Received signal strength at the Base
Indicates Crane is in Snubbing Mode
Indicates Crane is in Overload Mode.
Indicates compressor is enabled
Aux 1
Indicates Auxiliary output No. 1 status is ON
Aux 2
IIndicates Auxiliary output No. 2 status is ON
01
Indicates what screen your currently using
Tethered to the Remote, connection is disabled
STOP
Indicates Engine Stop
Indicates Engine Start
1
Indicates Engine Speed1 is enabled
2
Indicates Engine Speed2 is enabled
Indicates Power ON / OFF
