IMT CMD.CTRL - Setup; Diagnostic - Operator - Min; Max

Setup / Diagnostics 134 Section - 18
Operator’s - Manual # 99906363
Setup / Diagnostic - Operator - Min / Max

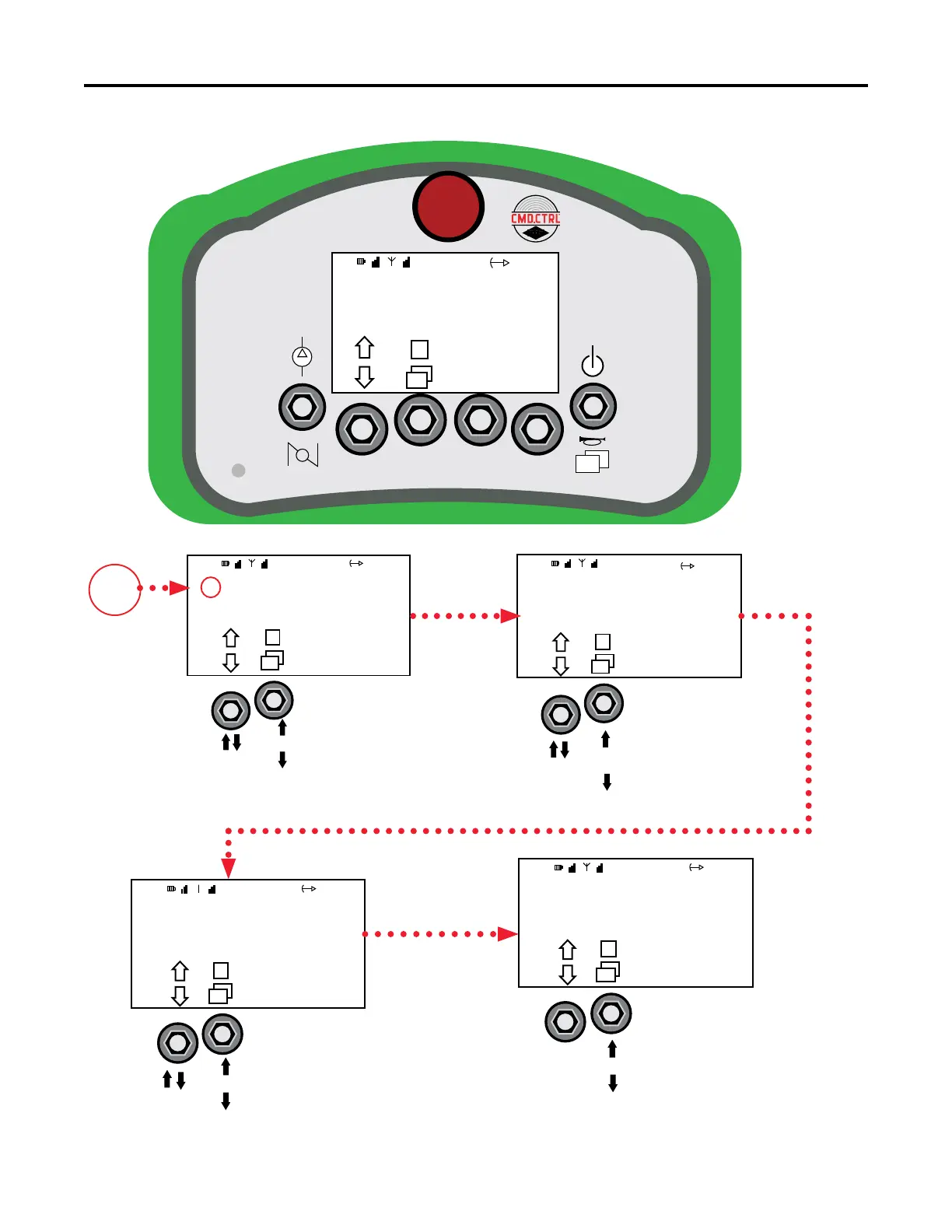

M-STOP
1
2 3
4
01
Setup/Diag.

> Operator Setup
Diagnostics
Calibrations
START
01
Setup/Diag.

>
Operator’s Setup
Diagnostics
Calibrations
1
2
Navigate to
Menu
Enter
Escape
01
Operator’s Setup

>
Boom Lift Up Min: 400 milliamps
Boom Lift Up Max: 1850 milliamps
Boom Lift Down Min: 400 milliamps
Boom Lift Down Max: 1900 milliamps
2
1
Escape
Navigate
to Parameter
Select
1
01
Operator’s Setup

Modify Values with Up and Down Buttons
When Done, Press Enter to Set New Value
Boom Lift Up Min: 400 milliamps
Modify
Value
2
Enter
Escape
01
Operator’s Setup

Pres Enter to Accept New Value
Press Escape to Cancel
Boom Lift Up Min: 400 milliamps
1
2
Accept
Cancel
