Diagnostic 35 Section - 8
Operator’s - Manual # 99906363
Diagnostics—Hours
From the Main Menu Navigate to Hour Meter Menu.
Press
to display Hours mode.
Press to return to Main Menu.
When the IPU chassis is congured, the “Crane” hour meter will be replaced by an “IPU”
hour meter.
CHASSIS HOUR METER
The Chassis Hour Meter accumulates time whenever the Body Module is powered up for a minimum of
two minutes. It will accumulate up to 33,000 maximum hours. At this point accumulation will stop and
33,000 hours will be displayed.
CRANE HOUR METER
The Crane Hour Meter shall accumulate time whenever the Crane Output is active for a minimum of
one minute. It will accumulate up to 16,500 maximum hours. At this point accumulation will stop and
16,500 hours will be displayed. When the IPU Chassis is selected the Crane Hour Meter will be used as
the IPU Enabled Hour Meter and the display will show IPU Hour Meter.
COMPRESSOR HOUR METER
If the IPU Chassis is not selected, the Compressor Hour Meter shall accumulate time whenever the
Compressor Hour Meter input is active for a minimum of one minute. It will accumulate up to 16,500
maximum hours, at this point accumulation will stop and only display the 16,500 maximum hours.

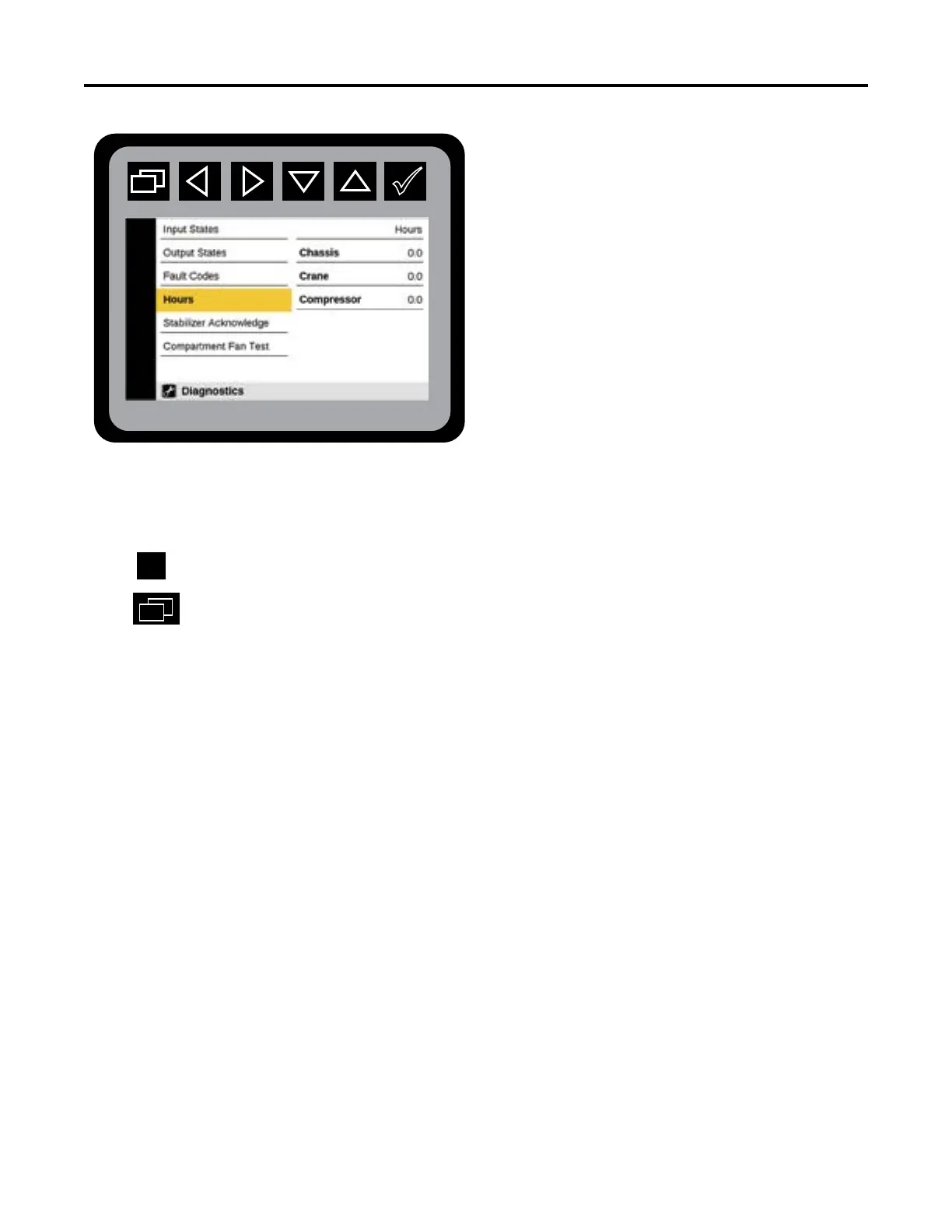

Diagnostics Hour Meter Menu
