Glossary of Icons 72 Section - 12
Operator’s - Manual # 99906363

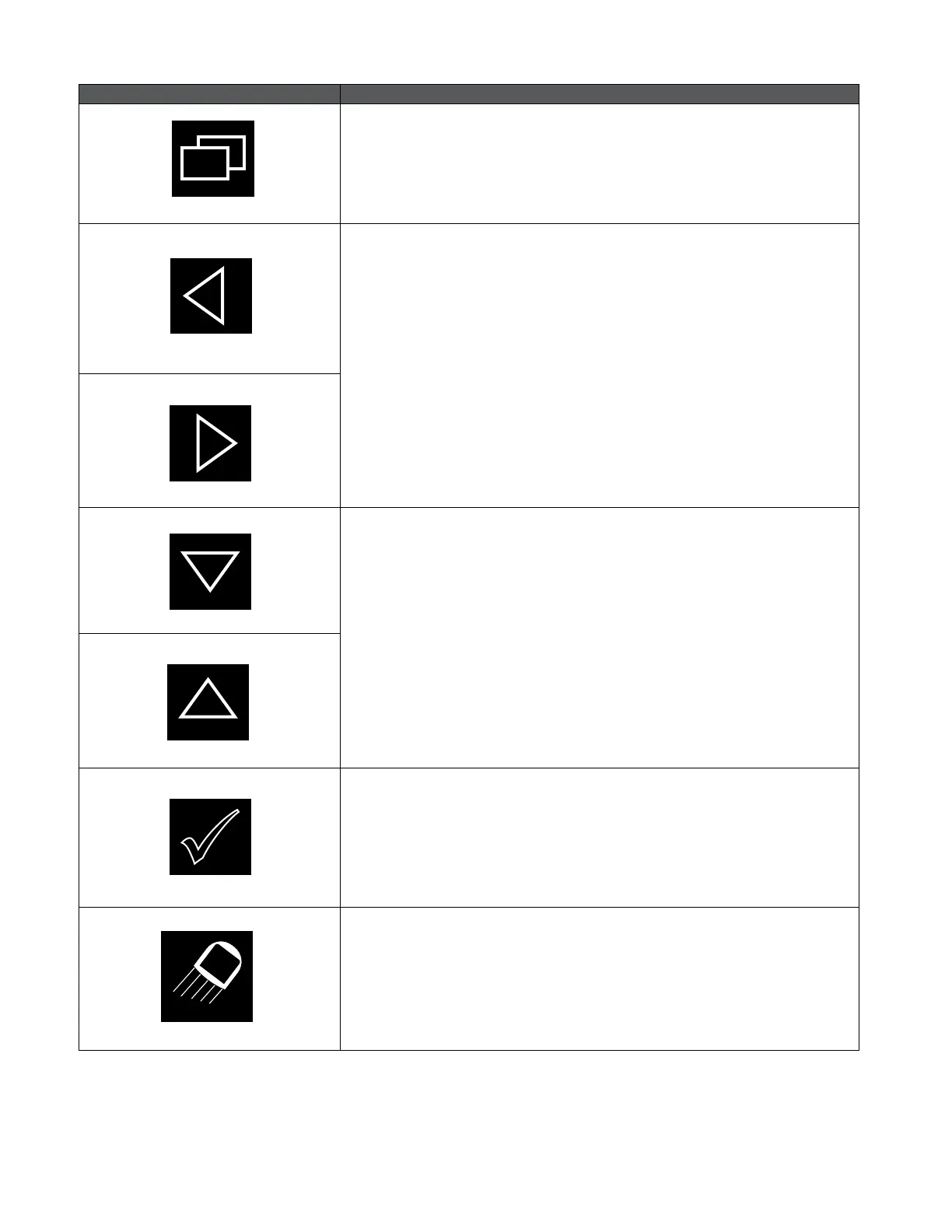

ICONS DESCRIPTION
Backspace Icon: Exit back to the previous screen, or back to the Main
Menu
Arrow Left: Move directionally to the left
Arrow Right: Move directionally to the right.
NOTE: Used for navigating the menus.
NOTE: In crane recovery mode, the arrow buttons are used for operating
the crane.
Arrow Down & Arrow Up: Used to navigate to a currently highlighted item
displaed on the Main Screen in both the left and right sidebars. Moves
directionally up and down.
NOTE: In stabilizer mode, the arrow buttons are used for operating the
stabilizer.
Select: Selects current highlighted conguration
Light Icon
NOTE: Used in Navigation Screens
To Next Page
