FACEPLATE - 3RD SECTION ICONS

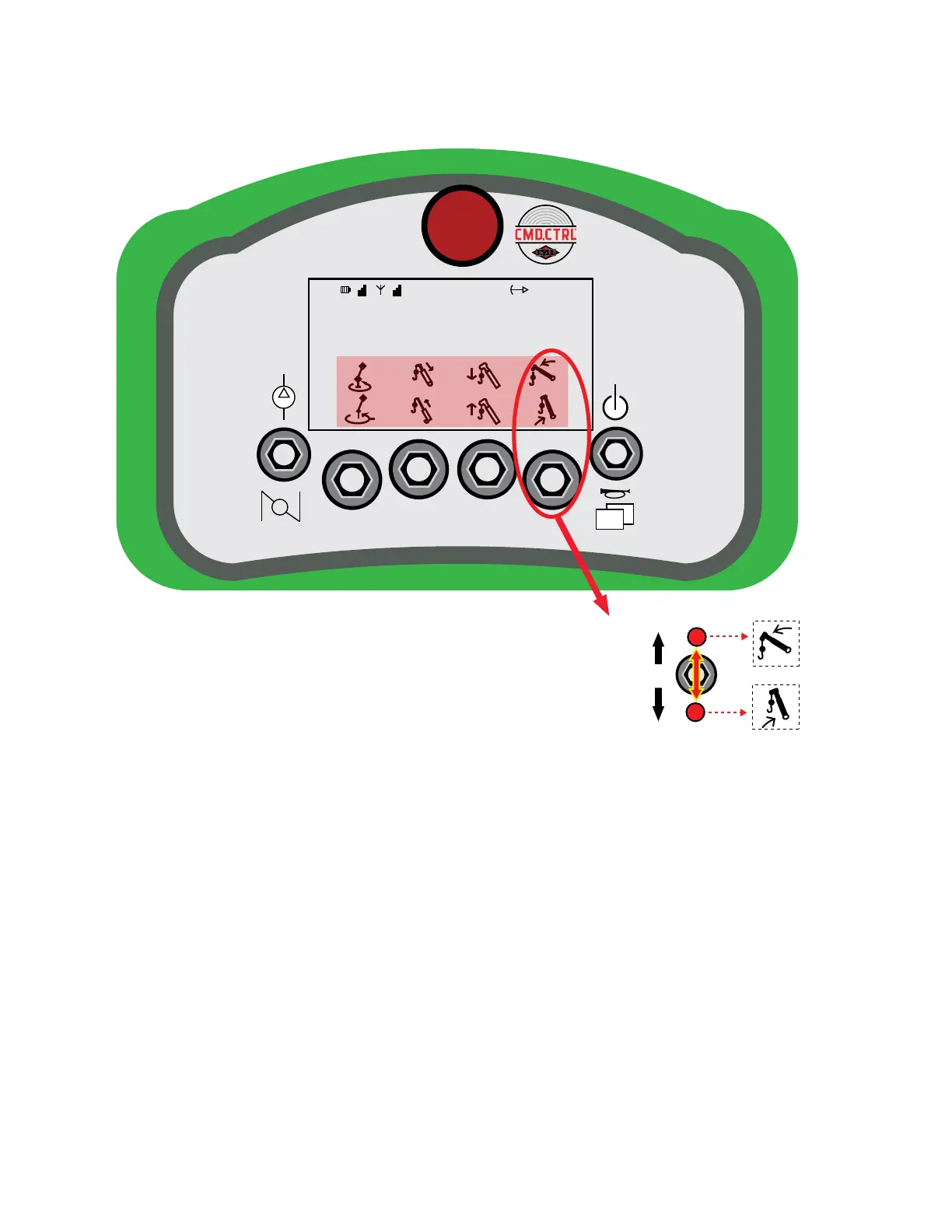

Example of 3rd Section
Soft Toggle icons indicate the current soft toggle function. The function is based on which screen is
shown.
Top row functions in the highlighted area activate when the corresponding soft toggle is clicked UP.
Bottom row functions in the highlighted area activate when the corresponding soft toggles is clicked
DOWN.
