- 137 -
IS810N-INT Series Servo System User Manual (Brief)Chapter 5 Keypad
2. Parameter Display (Take the parameter of the operating axis 2 as an example)
The IS810N series servo drive has 14 function groups based on parameter functions. A
function code can be located quickly based on the group it belongs to. For the function code
table, refer to chapter 8.
1) Function code group
Display Name Description
HXX.YY Function code group
XX: function code group
YY: function code No.

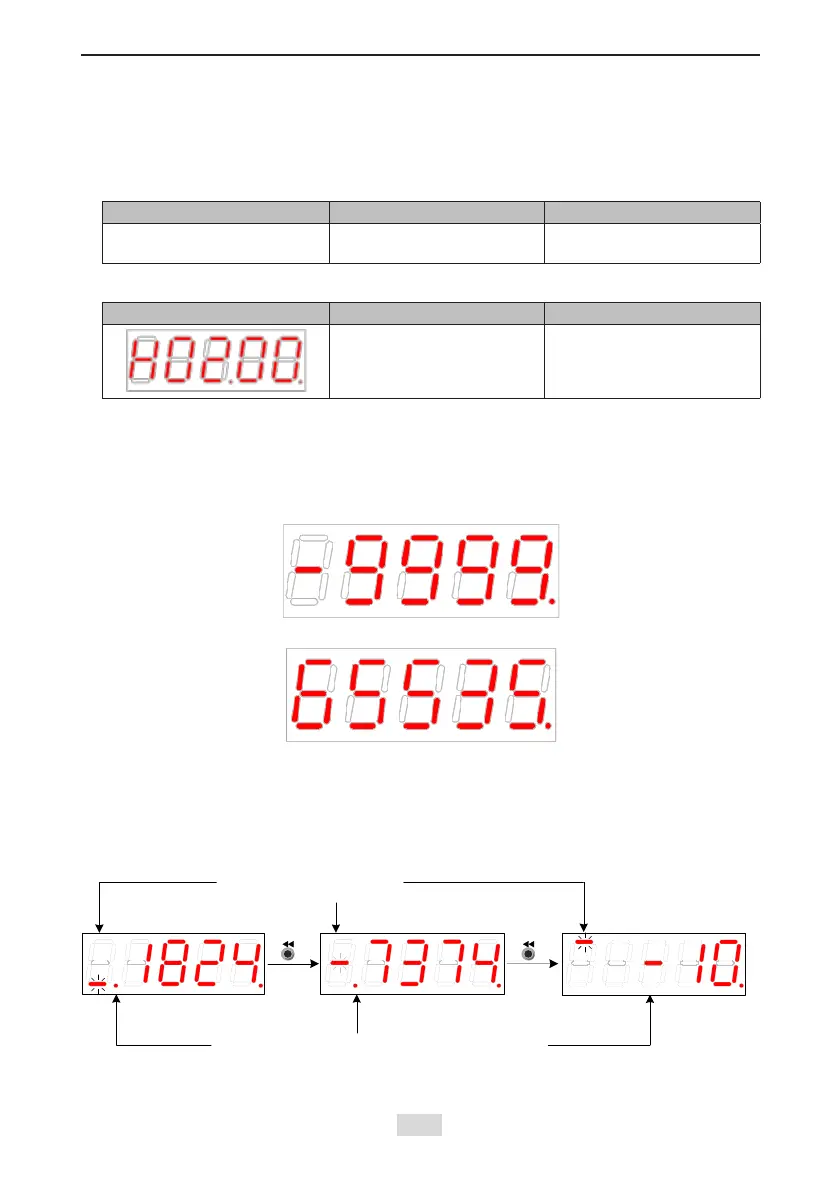

For example, H02-00 is displayed as follows:
Display Name Description
Function code H02-00
02: function code group
00: function code No.
2) Display of data of different lengths and negative number
a) Signed number with 4 digits or less and unsigned number with 5 digits or less
Such a number is displayed on a single page (5-digit LEDs). The highest digit "-" indicates
the negative symbol.
For example, –9999 is displayed as follows:
For example, 65535 is displayed as follows:
b) Signed number with more than 4 digits and unsigned number with more than 5 digits
The number is displayed in digits from low to high on pages. Each ve digits are displayed on a
page. The display method is: content on the current page + number of the current page. As shown
in the following gure, hold down SHIFT for more than two seconds to switch to the next page.
For example, -1073741824 is displayed as follows:
Figure 5-3 Display of -1073741824
Low 4 digits Middle 4 digits
High 4
digits
Segment "–" in the first left LED indicates the
current page.
Segment "." ON in the first left LED for low/middle 4 digits indicates the negative symbol.
Segment "-" ON in the second left LED for high 4 digits indicates the negative symbol.
Page 1 Page 2 Page 3
