CEAST 9340 - Instructions for Use and Maintenance 7510.000MN1r ed. 1 rev. 1 - Page 101

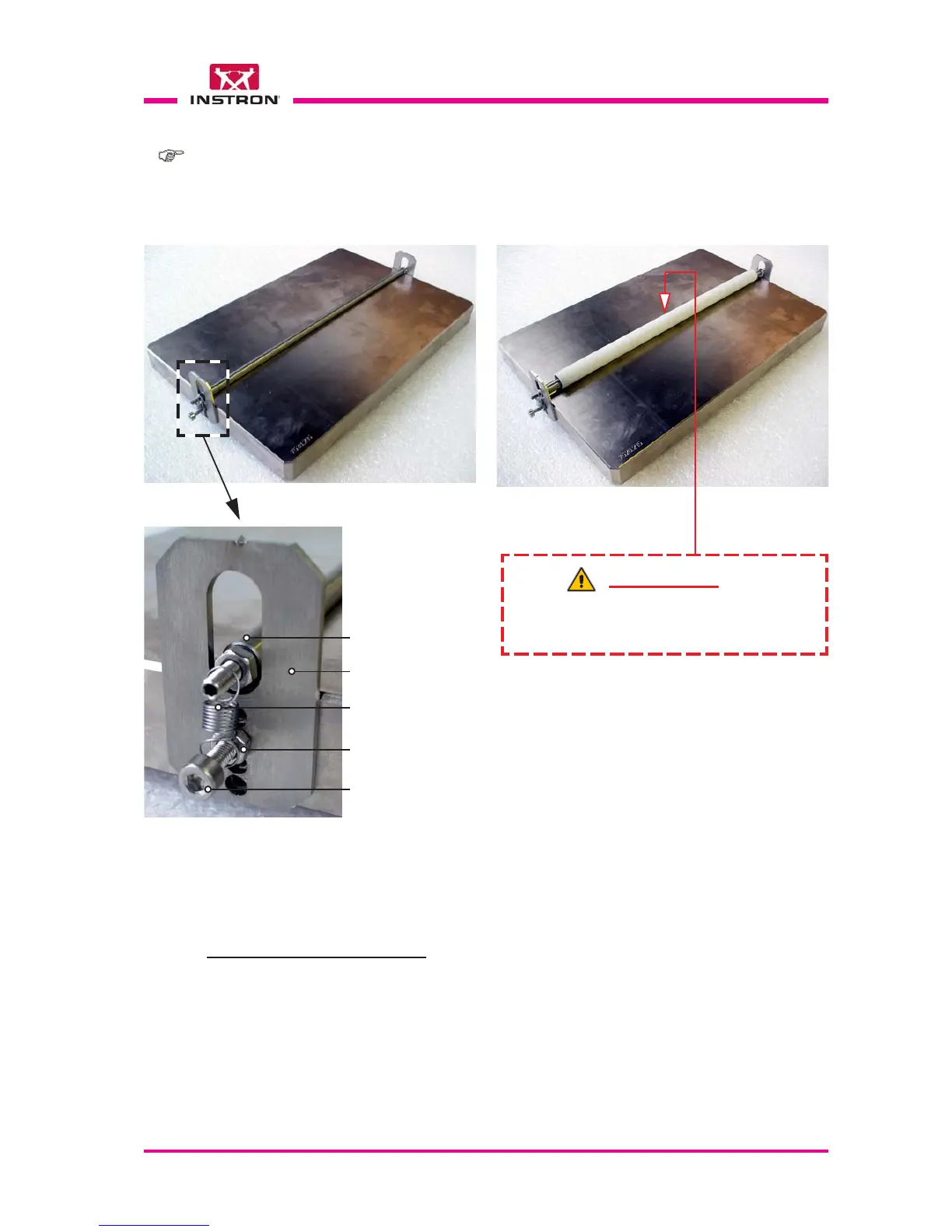

Fig. 3 - Support Plate code 7520.215 according to ASTM D-2444, type B standard
for fittings and small tubes (to be used together with the adjustable height support
code 7520.035 and the adapter code 7520.039)
Lock bar
Spring (x 2)
Bracket (x 2)
Screw (x 2)
Lock nut (x 2)
X
a) Open the door of the chamber.
b) Lift manually the spring eyelet, disengage the lock bar from the bracket slot and
disengage the tube or the fitting from the lock bar.
X
PIPE REMOVAL (REF. FIG. 3)
Note:- To assemble the supports (Fig. 1, 2 and 3) follow the instructions of the Chapter.
8.6.2.2 Specimen fixtures for adjustable height stand.
WARNING !
Avoid the striker impact against the locking
bar during the tests.
