CEAST 9340 - Instructions for Use and Maintenance 7510.000MN1r ed. 1 rev. 1 - Page 107
Authorized Personnel: ELECTRICIAN
In the figures that follow are indicated the points of the instrument where the fuses are
located.
Try to identify which fuse has to be replaced referring to the wiring diagrams shown in
the section 12.
a) Remove the panel that close the electric board (Fig. 1 or 2).
b) Working with your fingers open the fuse holder and remove the fuse.
c) Verify the eletric continuity between the ends of the fuse using a tester.
d) If the fuse is shorted, replace it with a new one of the same type and same electrical
specifications.
e) Place the new fuse in the fuse holder and close the fuse holder.
f) Fit the panel back and fasten it with screws.

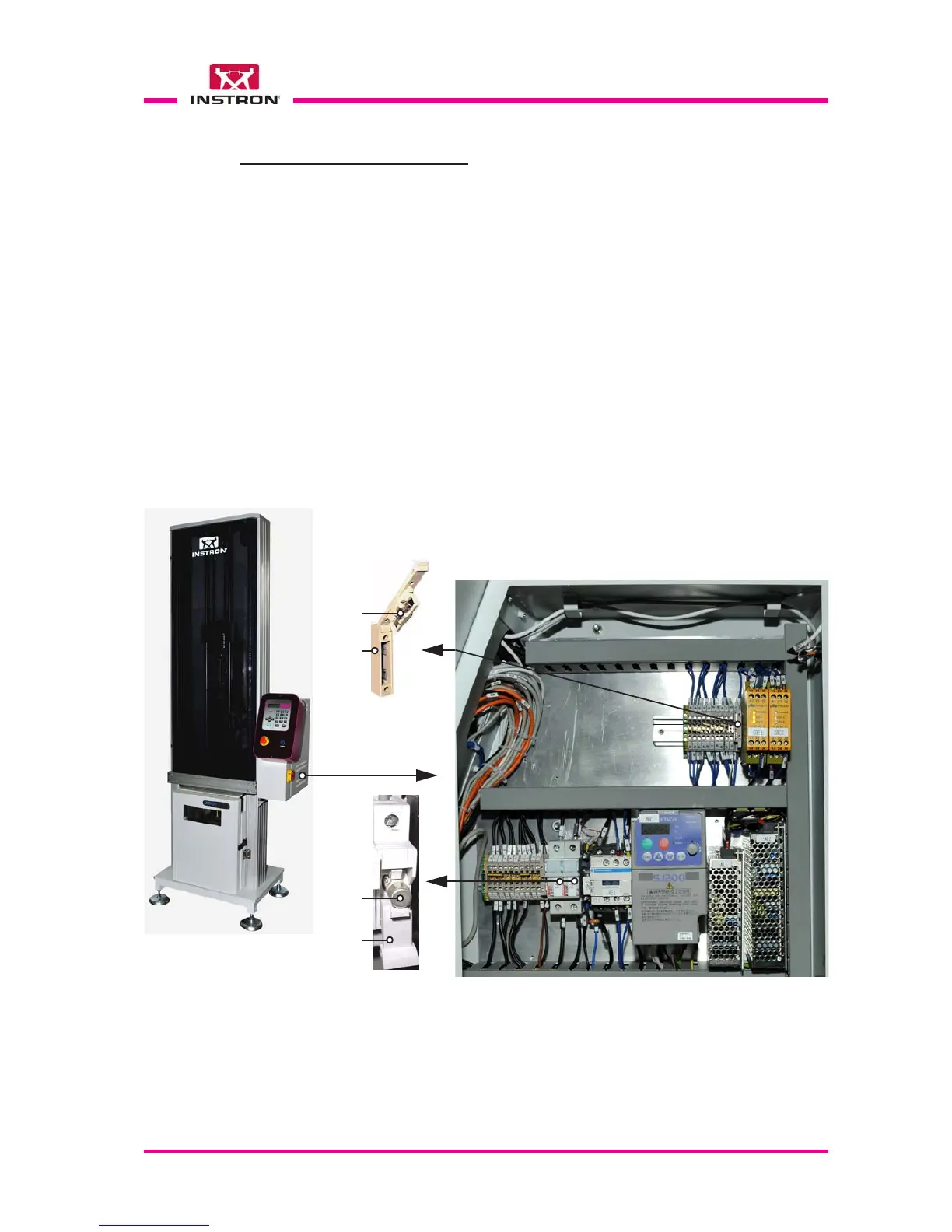

Fig. 1 - CEAST 9340 electric board (right side of instrument)
9.2 FUSES REPLACEMENT
X
X
X
X
X
X
Fuse
holder
CEAST 9340 electric board
Fuses to be used as spare parts:
CEAST code 0201.183 Quick Fuse 10A Code ITW1421010 (x2)
CEAST code 0201.184 Quick Fuse Omega 16A Code GL138316 (x2)
Fuse
Fuse
Fuse
holder
