Instron CEAST 9340 - Replacement of the Striker Holder

Page 74 - CEAST 9340 - Instructions for Use and Maintenance 7510.000MN1r ed. 1 rev. 1
8.6.3 REPLACEMENT OF THE STRIKER HOLDER
Authorized Personnel: Operator
Note: for the striker holders weights refer to the tables of para. 8.6.4.
DISASSEMBLY
X
X
a) Release the striker using the proper command under “Service Menu”.
b) Open the front door of the turret accessing to the lifting system, using the special key
provided.
c) Remove the screw fastening the guide plate on the upper left side of the striker
holder and remove manually the guide plate moving the striker holder.
d) Remove the striker holder from the guide columns of the instrument and place it on a
table.

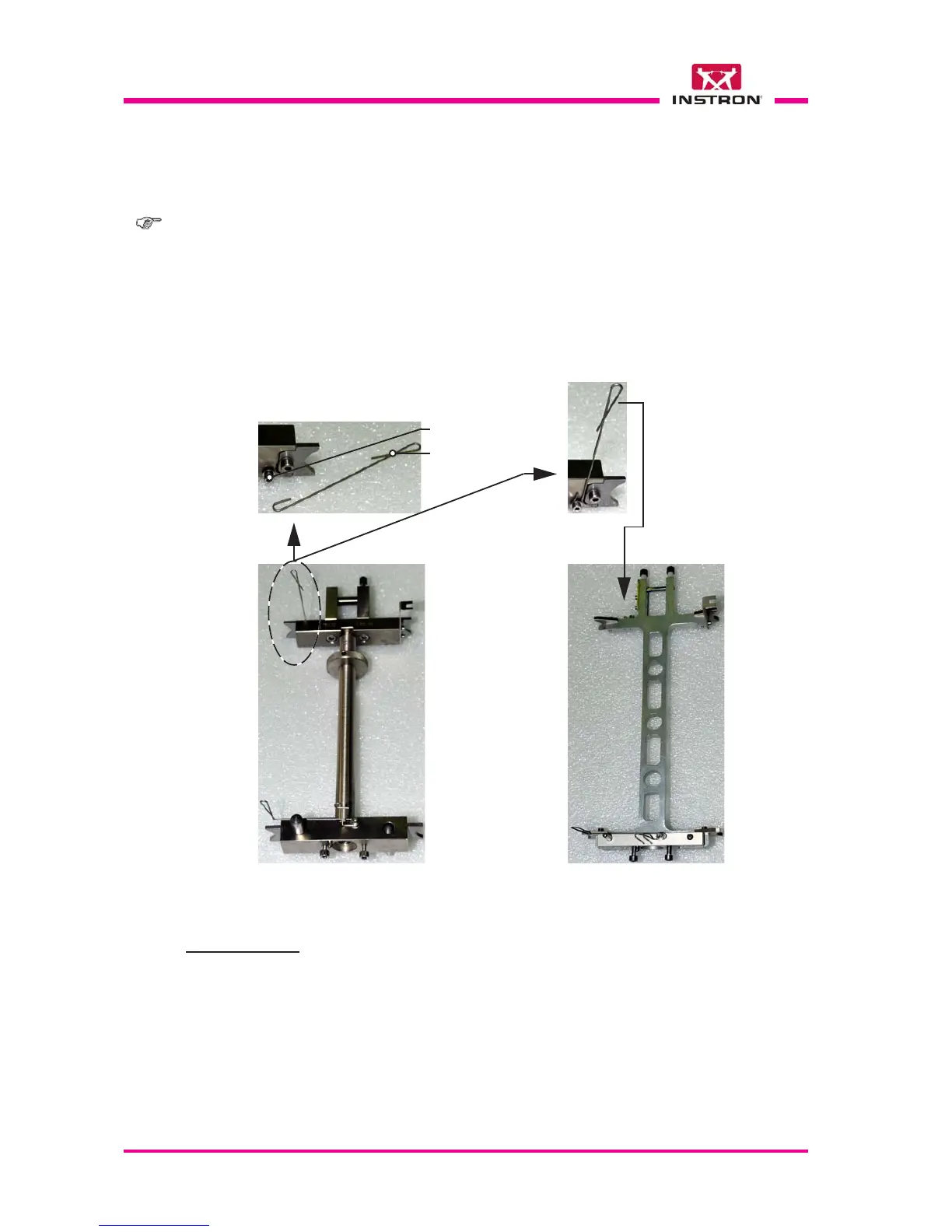

Fig. 1
Standard striker holder
Fig. 2
Light striker holder
X
- Check that the striker holder is free from weights and striker.
- Fasten the harmonic wire eyelet to the striker holder using the screw and washer
shown in the details below. The eyelet is normally removed when change the striker
holder with the light one or when store the striker holder inside the wooden box (op-
tion).
X
X
Harmonic wire
eyelet
Screw
X
