Instron CEAST 9340 - Replacement of Striker

Page 78 - CEAST 9340 - Instructions for Use and Maintenance 7510.000MN1r ed. 1 rev. 1
8.6.5 REPLACEMENT OF STRIKER
Authorized Personnel: Operator
X
X
X
X
X
DISASSEMBLY
X
b) If the striker is of instrumented type (Fig. 1) unscrew the connector of the striker
signal cable from the panel of the DAS (Data Acquisition System).
c) Disengage the clamp (Fig. 2, detail D) and remove the cable from the slot.
d) Disengage the signal cable holder from the clamp, pulling it downward (Fig. 2,
detail B).
e) Disengage the striker signal cable from the three harmonic wire eyelets (Fig. 2)
(these parts are attached to the striker holder).
f) Remove the two screws fastening the striker
g) Remove the striker from the striker holder.
a) Open the front door of the turret accessing to the lifting system, using the
special key provided.

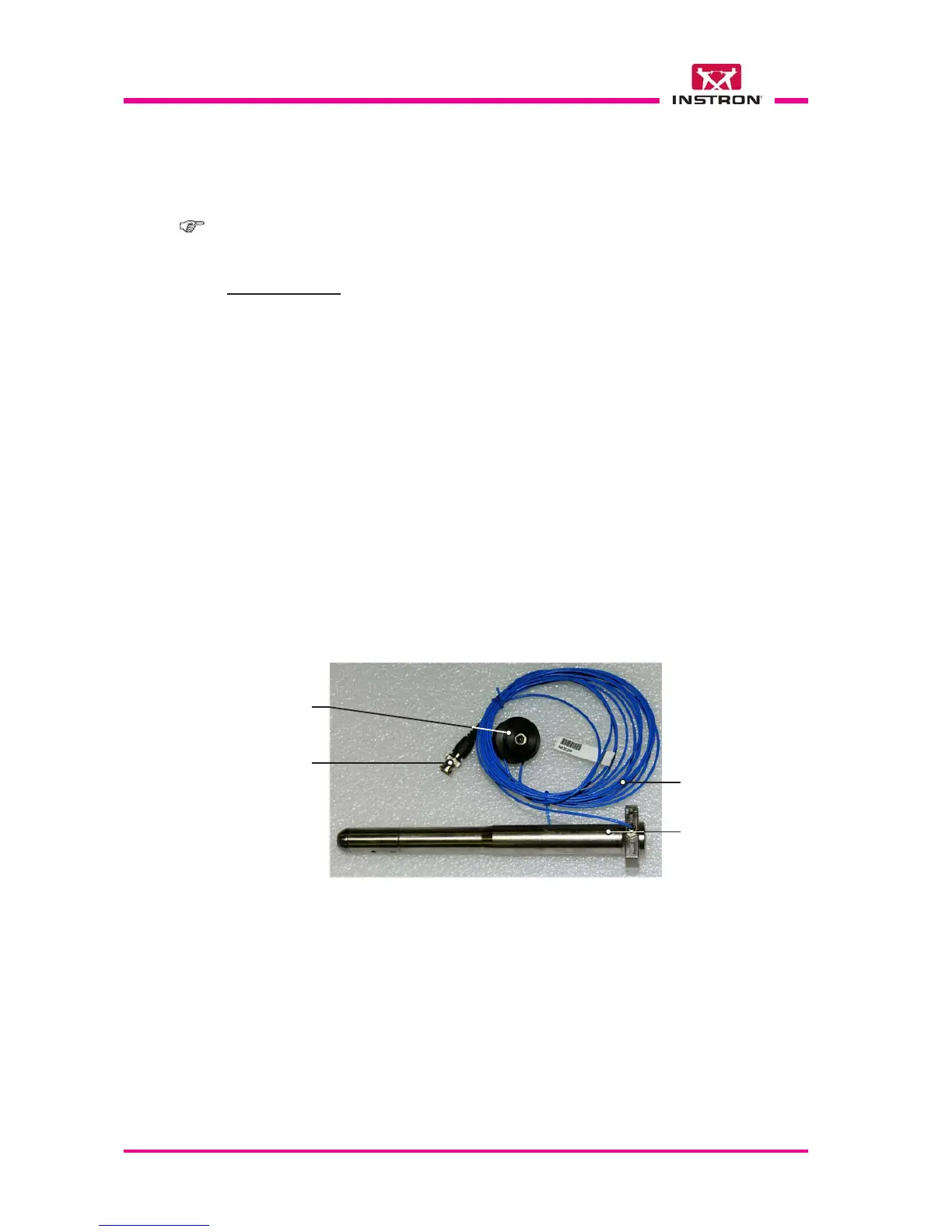

Fig. 1 - Instrumented striker
(usable with both striker holder)
Signal cable
holder
Instrumented
striker
Connector
Signal cable
X
Note: for the Strikers Technical Features refer to the Appendix B at the end of
this document.
