Page 116 - CEAST 9340 - Instructions for Use and Maintenance 7510.000MN1r ed. 1 rev. 1

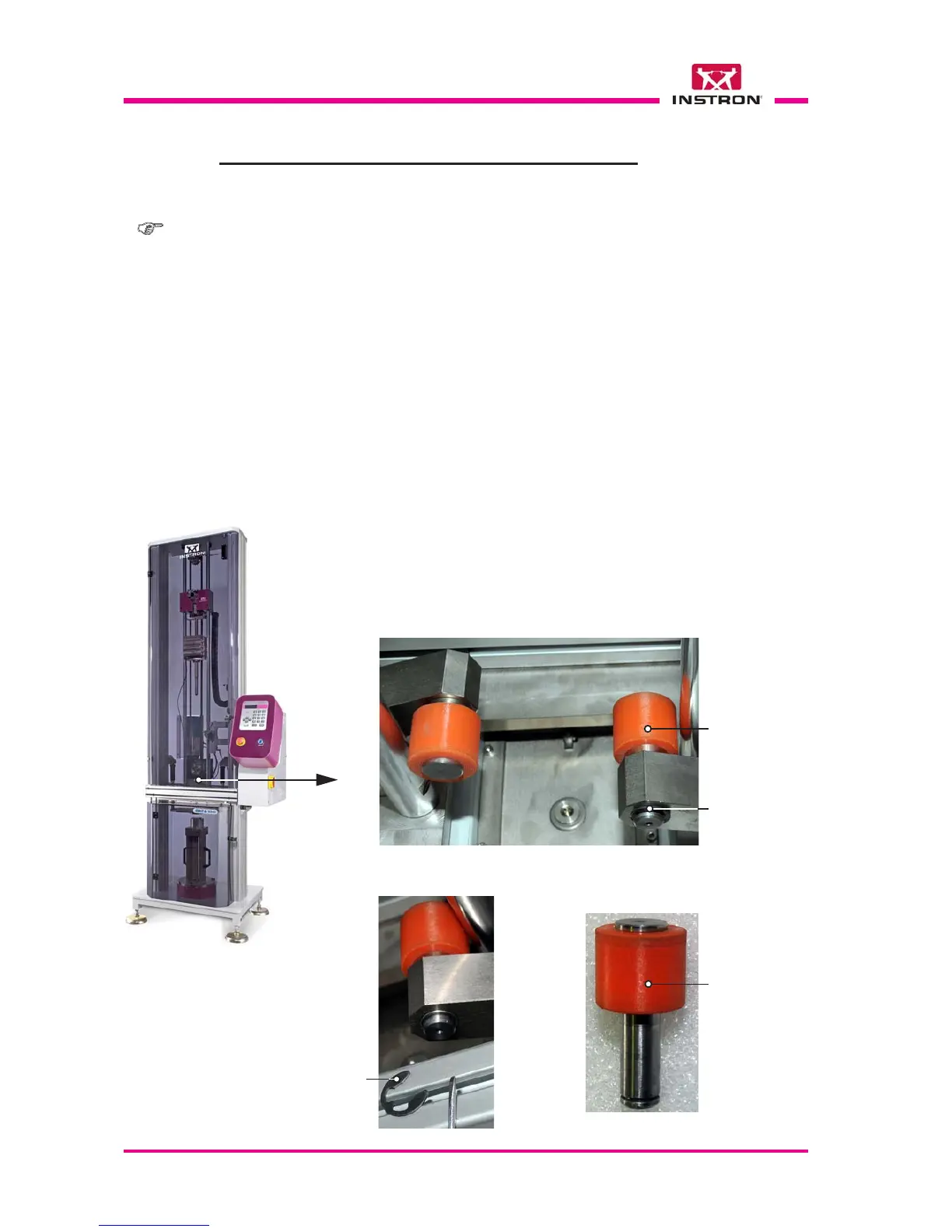

9.5 REPLACEMENT OF THE IMPACT ROLLERS
Authorized Personnel: MECHANICS
Note:- The impact rollers are used as residual energy absorbers for the striker after the
impact on the specimen.
The impact rollers are located in the center of to the turret plate.
a) Open the turret door.
b) Remove the two retaining rings (Fig. A and B) using a special pliers or a small screw-
driver.
c) Remove the impact rollers (Fig. C).
d) Replace the impact rollers with a new ones, code 7510.AF.07.
e) Position the new rollers and fasten them with the retaining rings.
X
X
X
A
B
C
X
Retaining
ring
Impact roller
(x2)
Retaining ring
(x2)
Impact roller
X
