CEAST 9340 - Instructions for Use and Maintenance 7510.000MN1r ed. 1 rev. 1 - Page 81
DISASSEMBLY
a) Open the front door of the turret accessing to the lifting system, using the
special key provided.
b) Remove the two screws fastening the striker extension.
c) Remove the striker extension from the striker holder.
d) Remove the two screws fastening the striker.
e) Remove the striker from the striker extension.
8.6.6 REPLACEMENT OF THE STRIKER EXTENSION
Authorized Personnel: Operator
The striker extension code 7510.028 (weight 0.5 kg) allows to increase of 60 mm the
penetration of the striker in the test specimen. It is normally used for tests on films and
it can be used with all strikers.
X
X
X
To the striker holder
X
X
ASSEMBLY
a) Open the front door of the turret accessing to the lifting system, using the
special key provided.
b) Place the striker against the striker extension making sure that the signal cable
is turned up as shown in the previous figure (check not required when install a
non-instrumented striker).
c) Fasten the striker to the striker extension with screws.
e) Place the striker extension against the striker holder.
f) Fasten the striker extension with screws.
X
X
X
X
Note:- The addition of the striker extension can cause interference between the striker
head and the special-purpose tooling installed on the adjustable height stand.
X

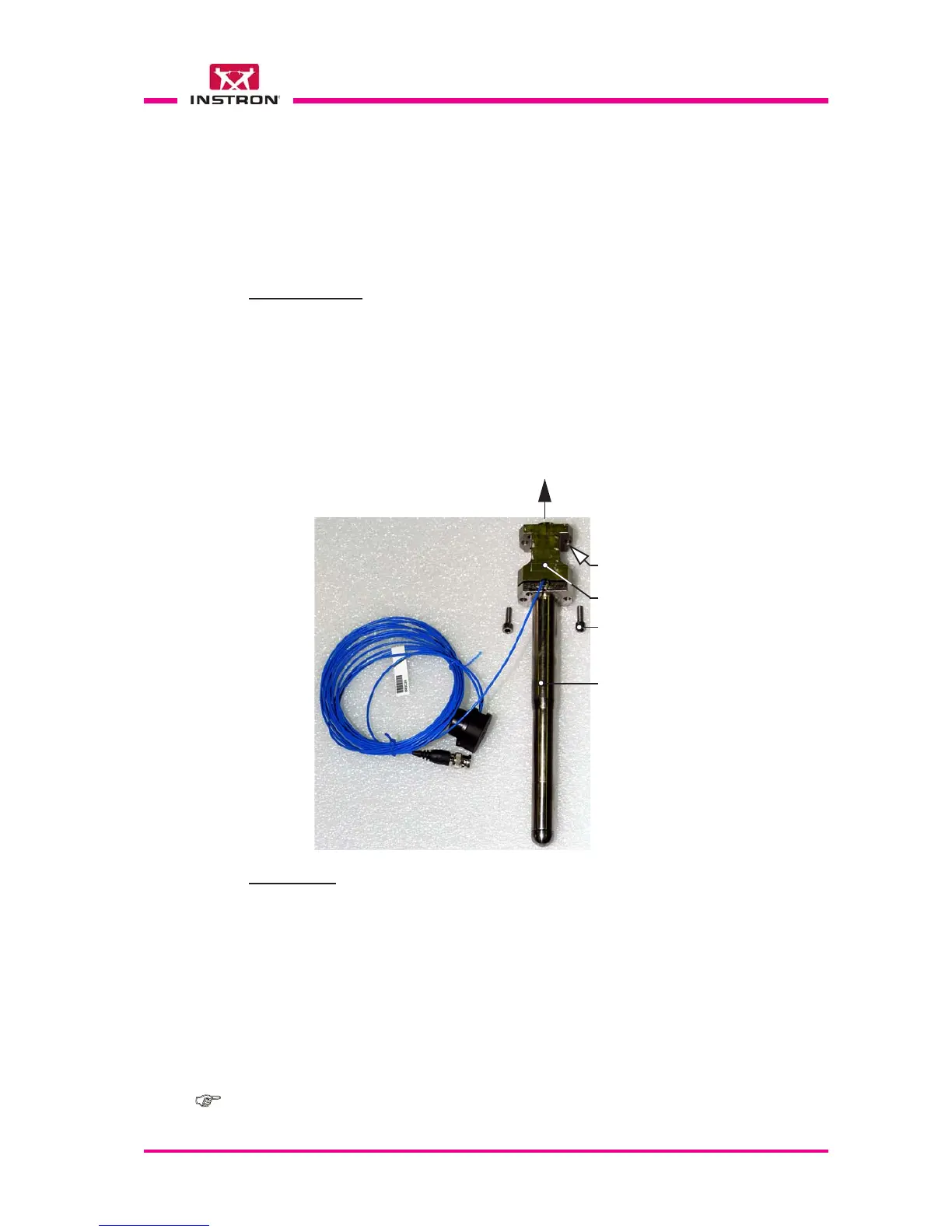

Striker, instrumented or
non-instrumented
Striker extension
Screw (x2)
Screw (x2)
