8.7.2 REPLACEMENT OF THE FIXED HEIGHT VICE SUPPORT STAND
Authorized Personnel: Operator
X
X
a) Disconnect the signal cable of the piezoelectric force sensor from the DAS (Fig. 1C).
b) Open the chamber door.
c) Remove the collecting box from the chamber (Fig. 2).
d) Remove the screws and notched washers fastening the insulator (Fig. 1B, D and E).
It passes through the wall of the chamber. One screw is placed inside the chamber
while the other is outside.
e) Remove the signal cable insulator (Fig. 1D) together with the cable from the wall of
the chamber and remove the cable from the insulator slot. The cable with connector
must be placed on the chamber floor.
f) Loosen and remove the Allen screws and flat washers (Fig. 1B).
g) Loosen and remove the shoulder screw (Fig. 1B).
h) Lift manually the stand for about 2 cm just to disengage it from the centering hub and
then remove (with precaution) the stand from the chamber using the handles.
X
X
DISASSEMBLY
X
X
X

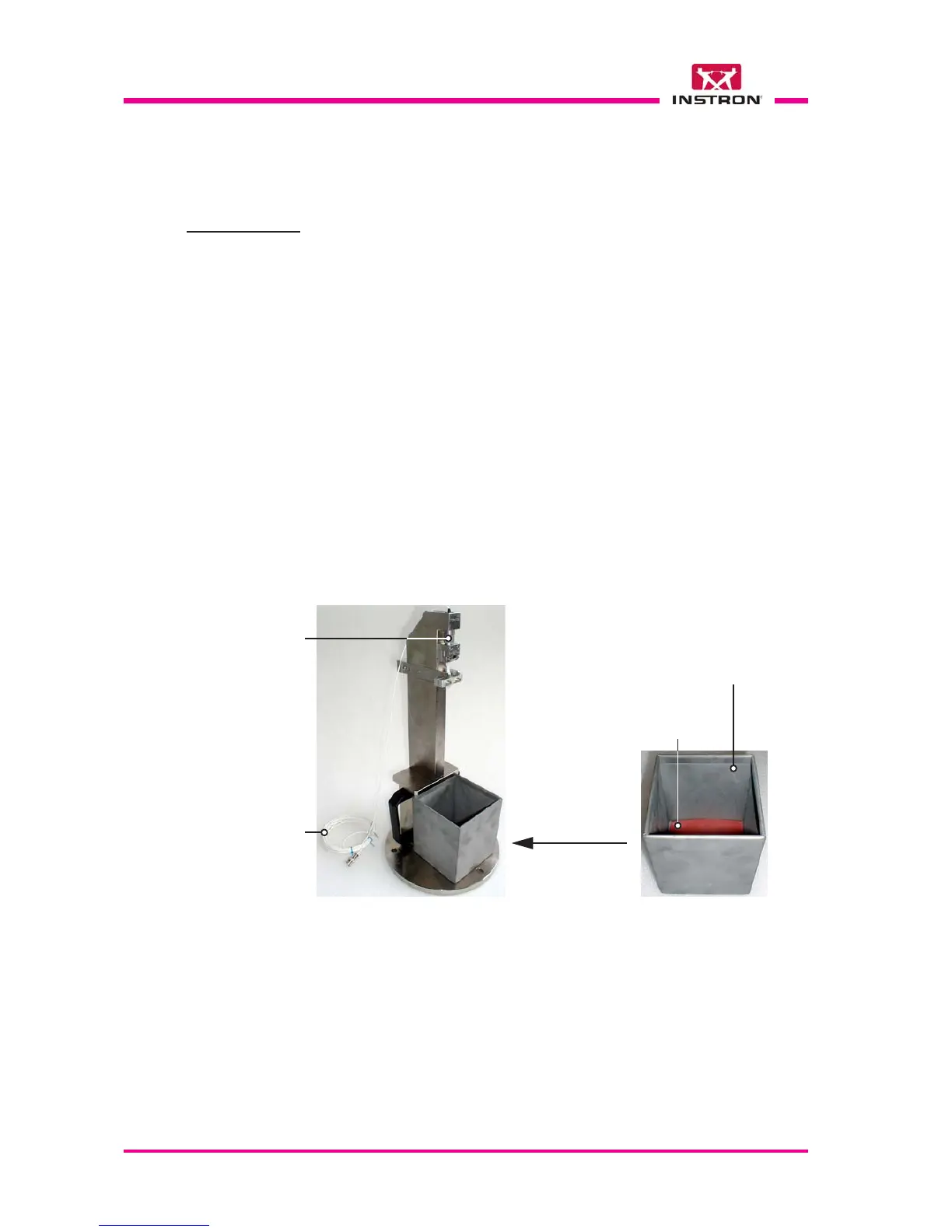

Fig. 2 - Fixed height vice support stand
Piezoelectric
force sensor
Position
of collecting
box during
tests
Collecting box for
broken specimens
and calibrated grip
Rubber
plate
Signal cable
