Instron CEAST 9340 - Page 87

CEAST 9340 - Instructions for Use and Maintenance 7510.000MN1r ed. 1 rev. 1 - Page 87

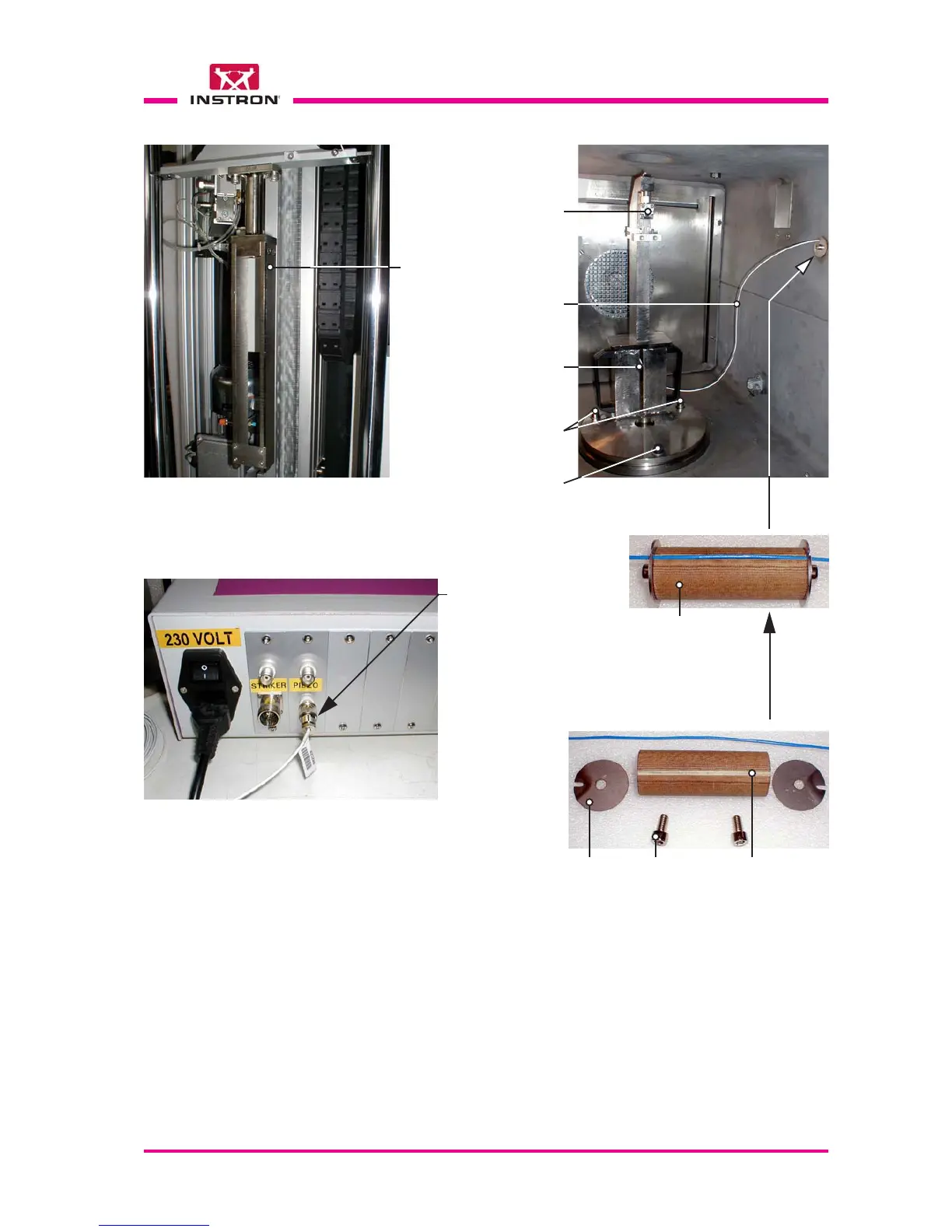

Fig. 1 - Instrument configured for Tensile-Impact test.
Striker
Fixed height vice
support stand
Instrumented vice
for Tensile-Impact
test
Piezoelectric force
sensor signal cable
Signal cable
insulator (placed
through the
chamber wall)
Piezoelectric
force sensor
signal cable
connected to
the DAS
(Data Acquisi-
tion System)
Allen screws and
flat washers
Shoulder screw
A
B
C
D
Slot for
cable
E
Notched
washer
(x 2)
Screw
(x 2)
