6.2.3 INSTALLATION PROCEDURE
X
Should the instrument be transported packaged in a crate, it is necessary to:
a) Transport the crate to the place of installation. The floor must be perfectly flat and
capable of support a weight of 1000 kg/m
2
(see para. 6.2.2).
b) Dismantling the packaging case following the instructions of para. 5.1.
c) Remove the screws (x 6) and brackets (x 6) fastening the instrument to the pallet
(Fig. 1 and detail).

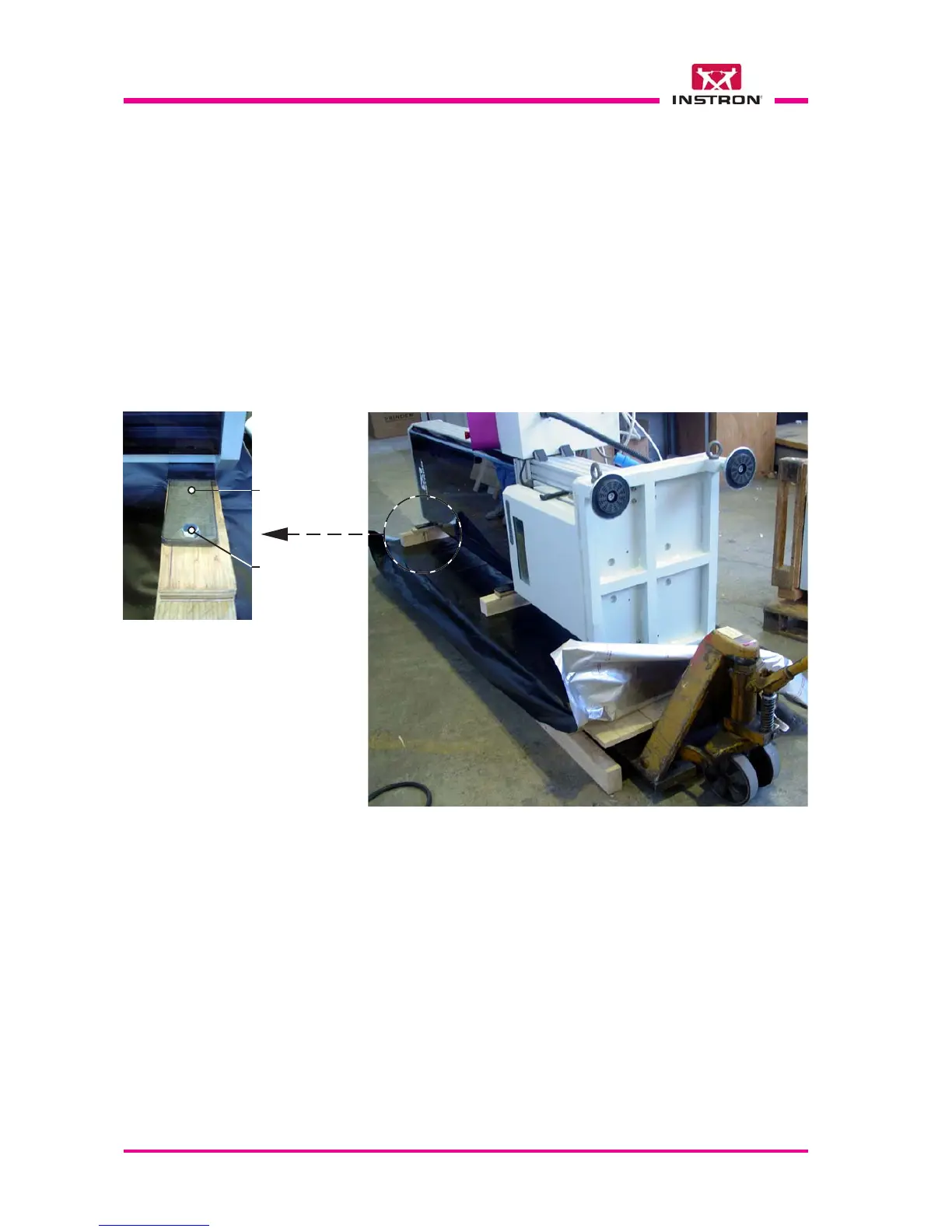

Fig. 1
Bracket (x 6)
Screw (x 6)
