5. MOUNTING AND DISMANTLING
X
X
X
X
X
The instrument is handled completely assembled.
Therefore there are no assembly and/or disassembly operations to carry out before
handling.
Should the USER need to dismantle one or more parts for which the procedure is not
included in this manual, it is imperative that ITW Test and Instrument Italia S.r.l. - INSTRON
CEAST Division be contacted for authorization and the procedure.
Every operation of mounting/dismantling done by the USER, not foreseen in this manual
nor authorized by ITW Test and Instrument Italia S.r.l. - INSTRON CEAST Division, will
be considered altering and will result in the compromise of the safety functions and
guarantee of the instrument.

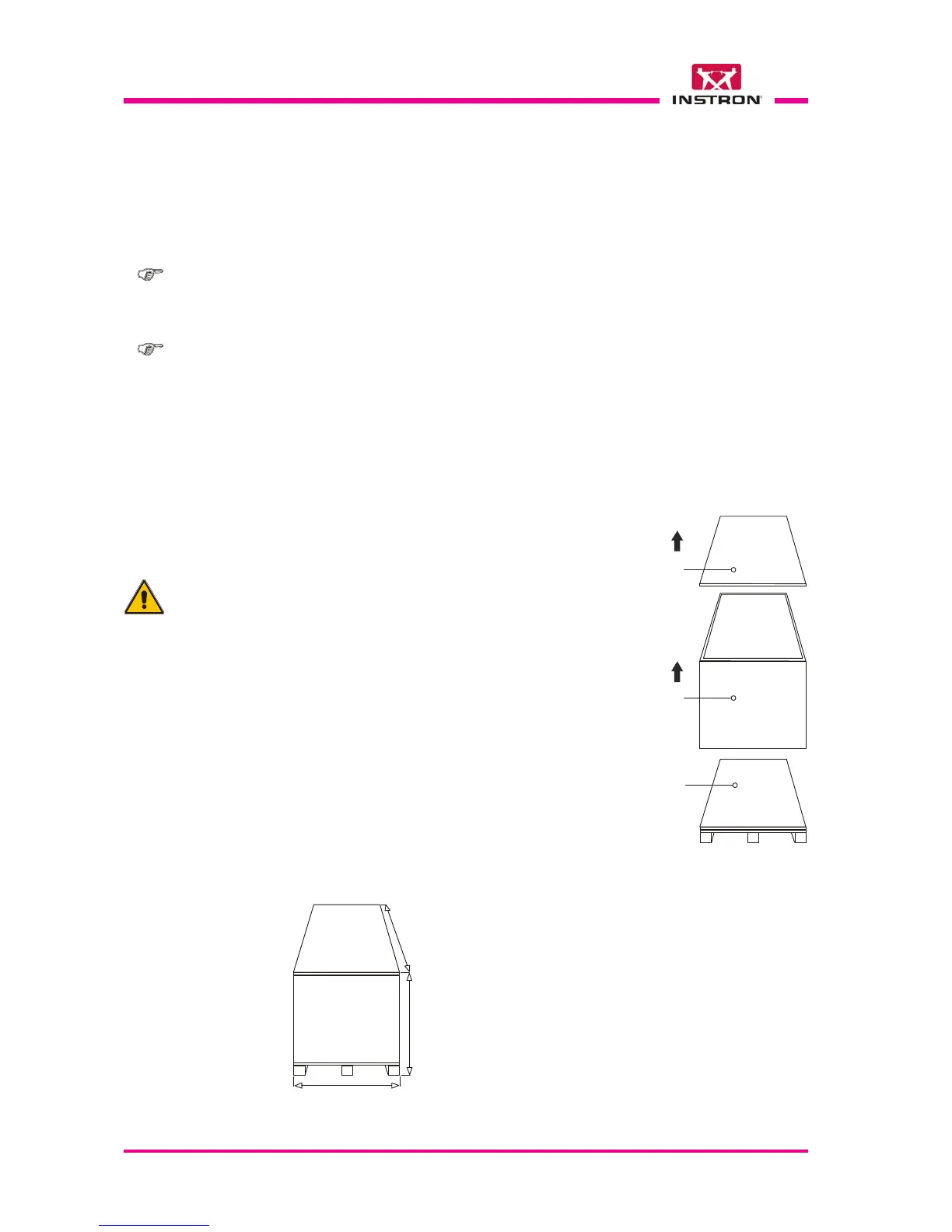

Should the instrument be transported packaged in a
crate, it is necessary to:
a) Transport the crate to the place of installation. The
floor must be perfectly flat and capable of support a
weight of 1000 kg/m
2
(see para. 6.2.2).
Note: put on protective glasses before removing
straps.
b) Cut the straps.
c) Remove the screws or nails of the lid and remove it.
d) Remove the screws or nails of the walls and remove
them.
e) Remove the packing material.
f) Unscrew the screws and nuts and remove the brack-
ets that fastening the instrument to the pallet (see
figures on para. 6.2.3).
g) Continue with the handling of the instrument accord-
ing to the instructions in chapter 4.1.2.
A
X
B
C
Crate overall dimensions [mm]
and gross weight [kg]
A = 130;
B = 277;
C = 87;
Weight = 550 kg approx.
Walls
Lid
Pallet
5.1 DISMANTLING THE PACKAGING CASE
