CEAST 9340 - Instructions for Use and Maintenance 7510.000MN1r ed. 1 rev. 1 - Page 95

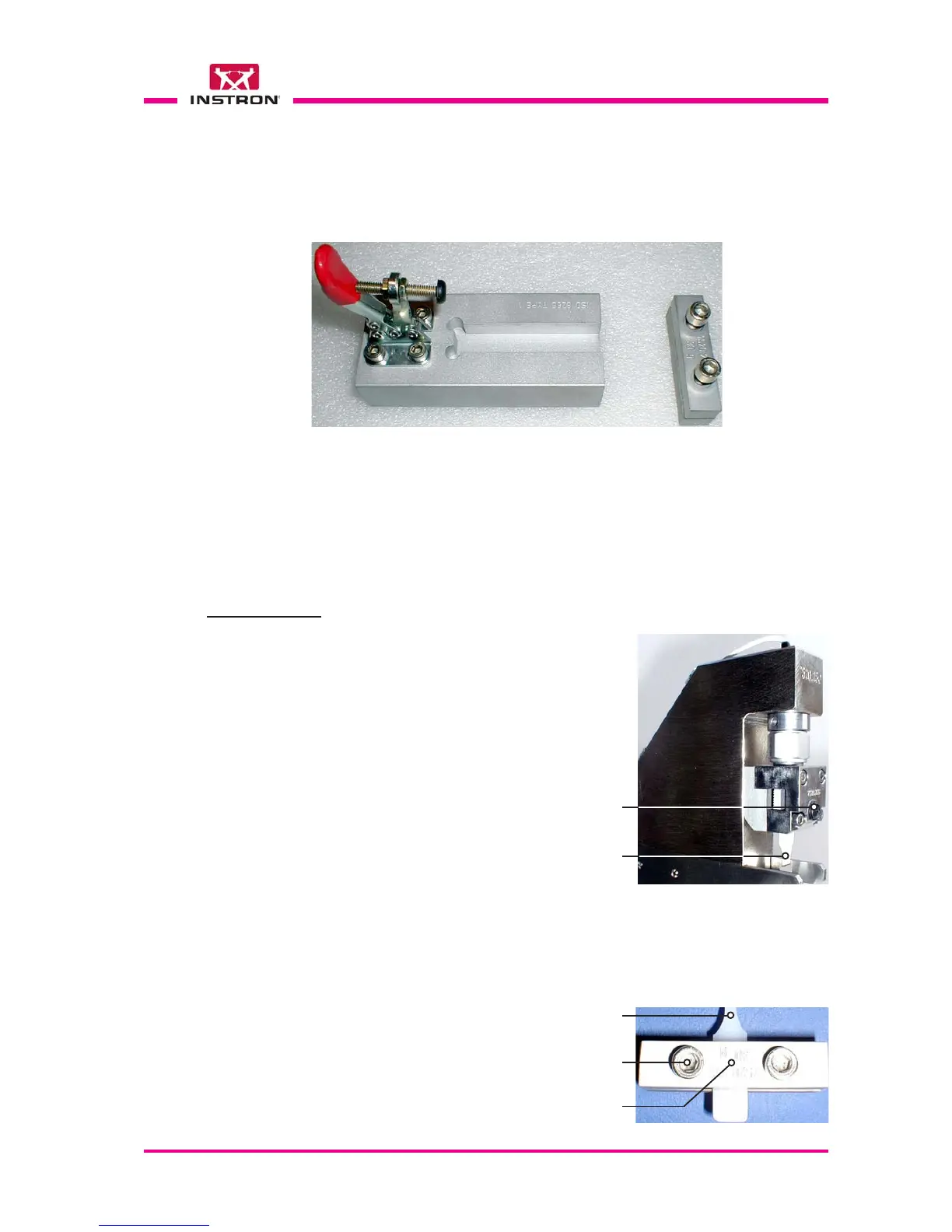

8.7.5 REPLACEMENT OF THE TENSILE-IMPACT SPECIMEN
Authorized Personnel: Operator
Fig. 1 - H: Specimen holding fixtures: one for specimens type 1, one for specimens
type 2 and 4 and one for specimens type 4.
- I: Calibrated free tensile grips, 30 g, for rigid specimens according to ISO
8256 standard, method A, type 1, 2, 3 and 4. Specimen thickness from 3
to 4 mm.
HI
X
X
a) After test, loosen the clamping screw
and remove the broken specimen from
downward.
DISASSEMBLY
Half broken
specimen
Clamping
screw
b) After test, pick up the calibrated free
tensile grip from the collecting box (see
Fig. 2, para 8.7.2).
c) Loosen the screws and remove the
broken specimen.
Half broken
specimen
Clamping
screw (x2)
Calibrated free
tensile grip
X
