CEAST 9340 - Instructions for Use and Maintenance 7510.000MN1r ed. 1 rev. 1 - Page 37

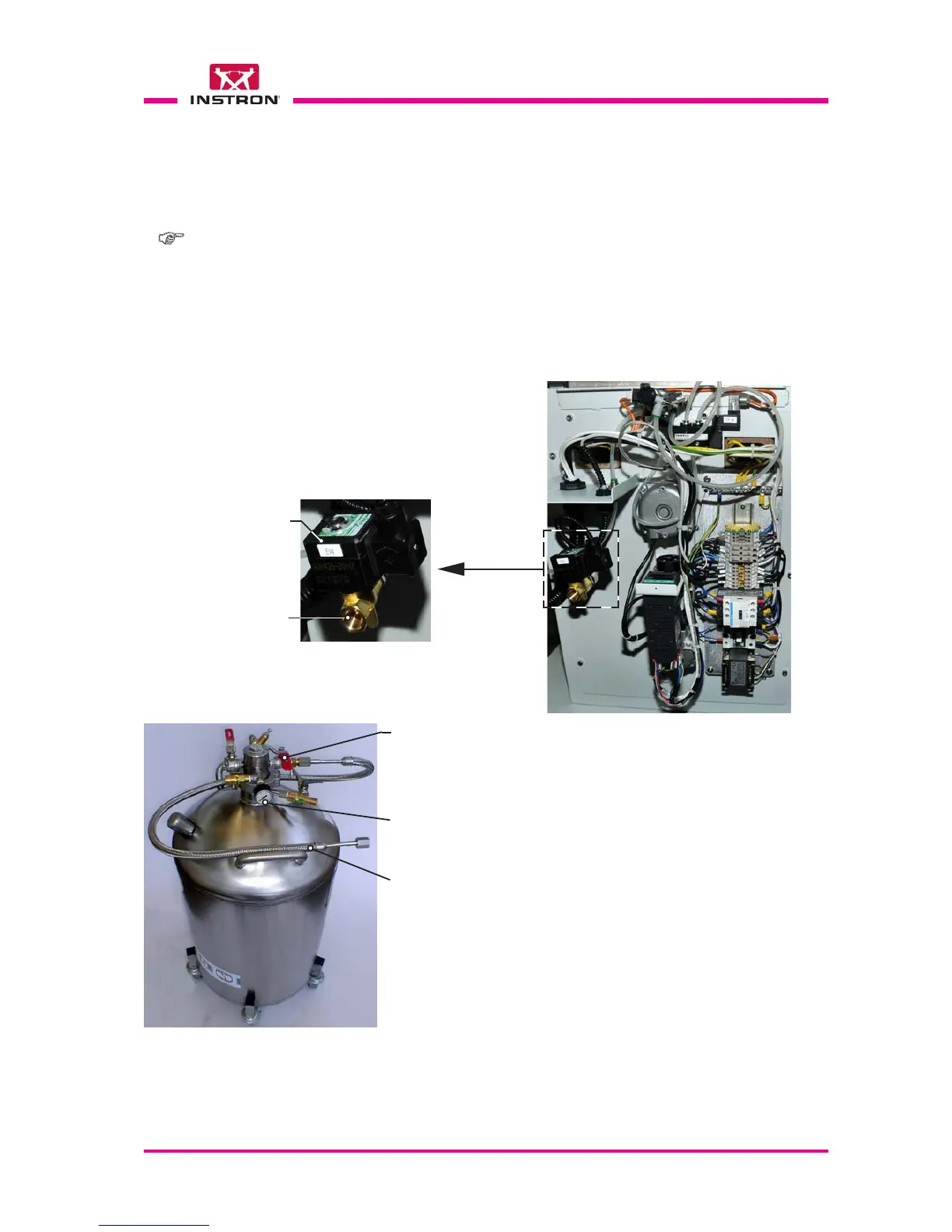

Solenoid
valve
Rear view of
environmental chamber
X
Liquid Nitrogen Supply:
- Pressure: 1.2 bar to 1.5 bar;
- Consumption at - 40 °C: 4 [kg/h];
- Consumption to cool the chamber from 23 to - 40 °C: 6 [kg].
Connect the nitrogen tank to the pipe fitting of the CEAST 9340 using the flexible hose
provided with the tank or connect the CEAST 9340 to the nitrogen line of the laboratory.
The delivery pressure must be set between 1.2 and 1.5 bar.
Note: the tank is provided with its own User's Instructions, which contain all the informa-
tion needed to operate it.
Nitrogen inlet.
Press.:1.2 to 1.5 bar.
Pipe fitting:
3/8” GAS - UNI 338
Flexible
hose
Nitrogen
flow
adjusting
valve
Insulated liquid nitrogen tank,
60 Lt (option)
Pressure
gauge
To Next Page
