200 Sprint™ Automated Urine Microscopy Analyzer Service Manual 300-4949 Rev A 01/2005 4-29
4. Adjustments
14. When blue dots appear at top and on the left corner you will need to
adjust the Vertical tilt adjustment screw counter clockwise to correct
this type of tilt and the Side adjustment screw clockwise.
15. When the tilt adjustment is complete, run a Focus tube.
16. After the Focus passes, run a Calibration rack.
17. After the Calibration rack passes, run a Control Rack.

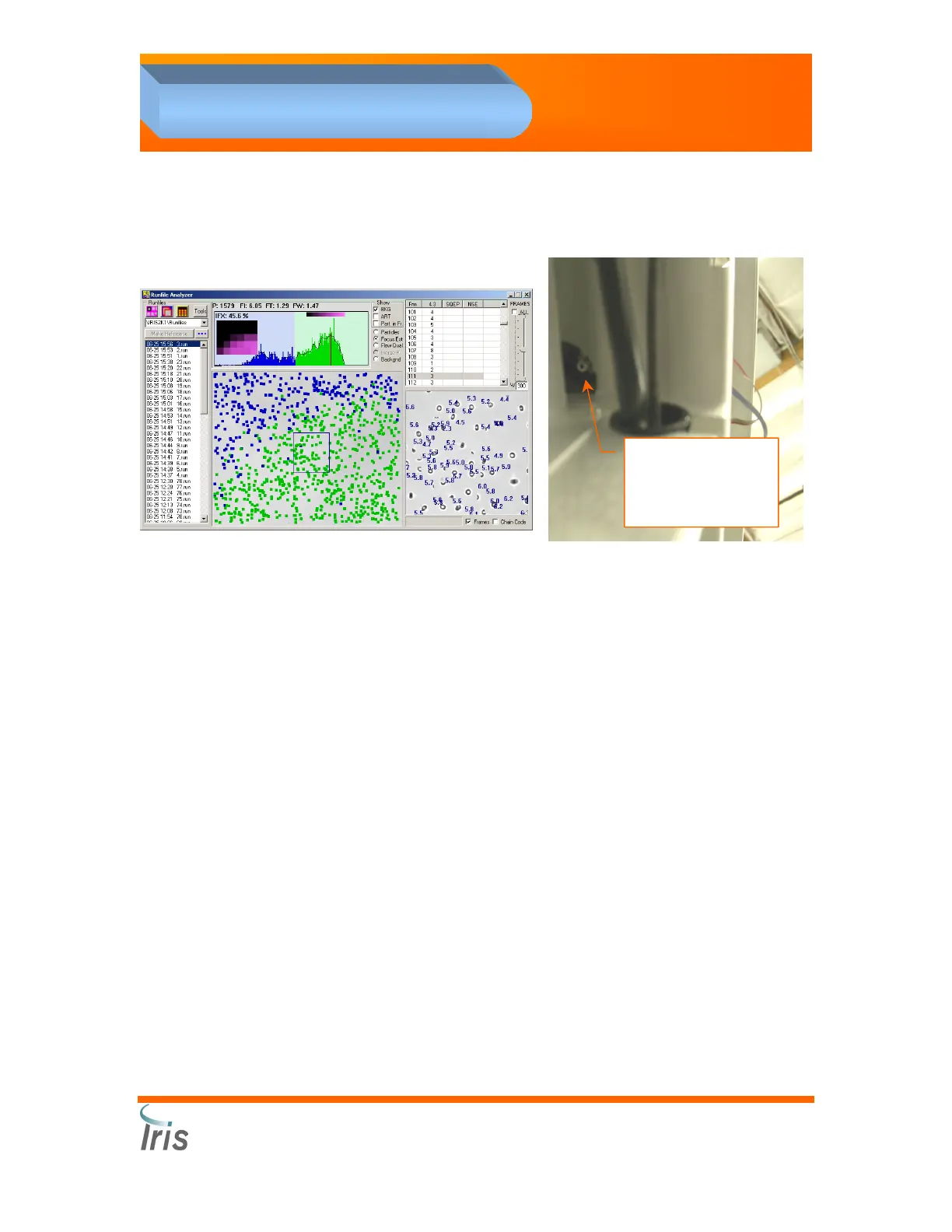

Vertical axis tilt
adjustment
screw under
o
tical bench.
