3 – 25
3.3

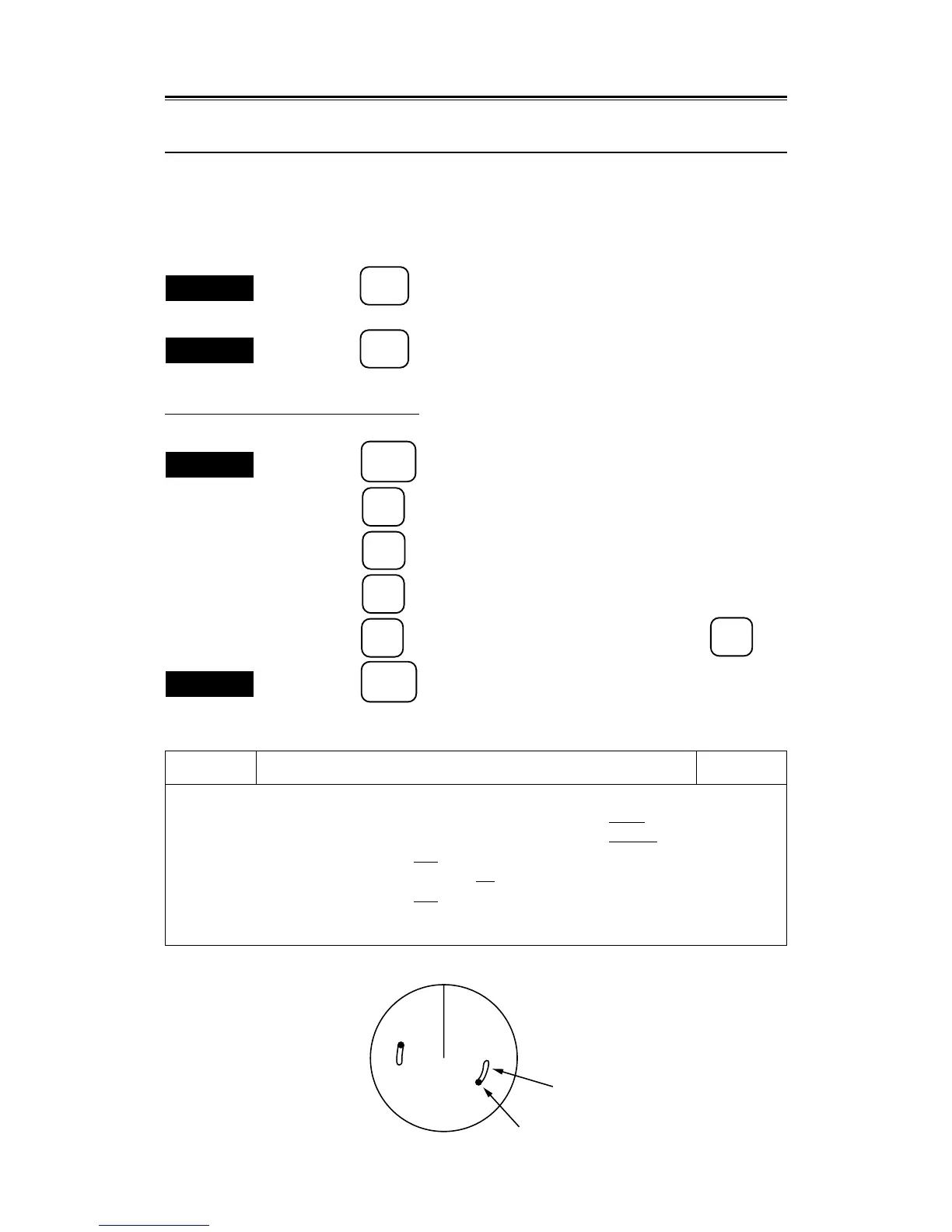

3.3.10 Displaying Other Ship's Trails [TRAILS]
Movements and speeds of other ships can be checked from lengths and directions of their trails as well as
synthetic afterglow, which helps avoid collisions of ships. Trail length can be changed over to eight levels
of 1min, 3min, 6min, 12min, 15min, 30min, 60min and continuous.
Procedures
Procedures
1. Press the
TRAILS
key to display the radar trail.
The trail length currently set appears on the upper right of the screen.
Exit
Exit
2. Press the
TRAILS
key.
To Change Radar Trail Interval
Procedures
Procedures
1. Press the
SUB
MENU
key to open the SUB MENU.
2. Press the
1
key to open the RADAR #1 menu.
3. Press the
3
key to open the RADAR TRAILS menu.
4. Press the
1
key to select "RADAR TRAILS INTERVAL".
5. Press the
1
key to select the trail interval and press the
ENT
key.
Exit
Exit
6. Press the
SUB
MENU
key.
Radar Trails
1. RADAR TRAILS INTERVAL 1MIN 3MIN 6MIN 10MIN
15MIN 30MIN 60MIN
CONT
2. RADAR TRAILS REF LEVEL LEVEL1 LEVEL2 LEVEL3
LEVEL4
3. RADAR TRAILS REDUCTION
OFF LEVEL1 LEVEL2 LEVEL3
4. RADAR TRAILS PROCESS OFF
ON
5. RADAR TRAILS SMOOTHING
OFF ON
HL
Trail
Other ship
RADAR
TRAILS
0. PREV
