4. Grasp each side of the switch or switches, li the switch or switches, and hang the brackets from the

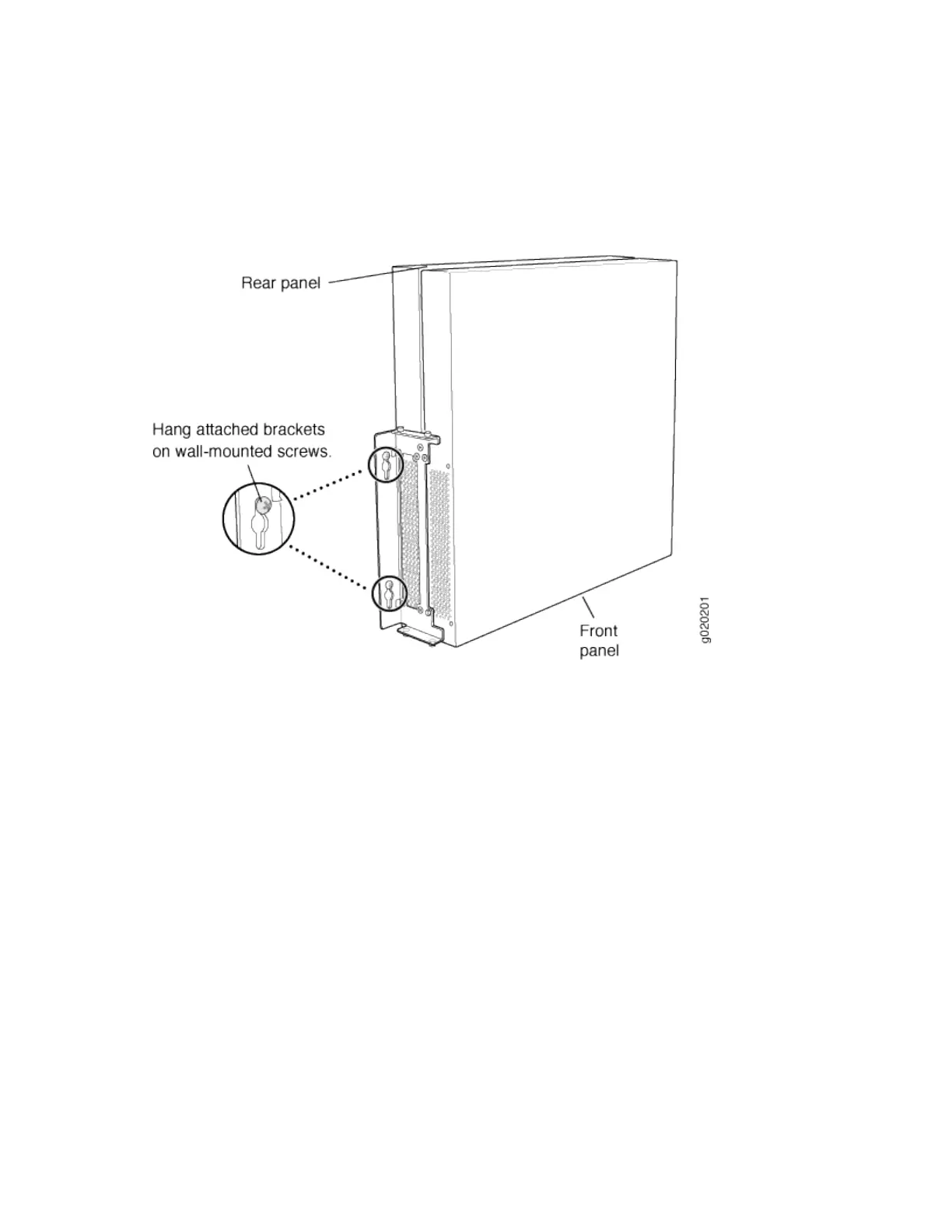

mounng screws (see the representaon in Figure 62 on page 183).

Figure 62: Mounng the Switch on a Wall

183
