2
Write the firmware.
The firmware is written after the programming cable is connected to Control Head 1.
1.
Start up KFL to open the firmware (Ver.1.62.00 or later) of the NX-5000 series.
Configure COM Port, and configure “Auto” in Baud Rate.

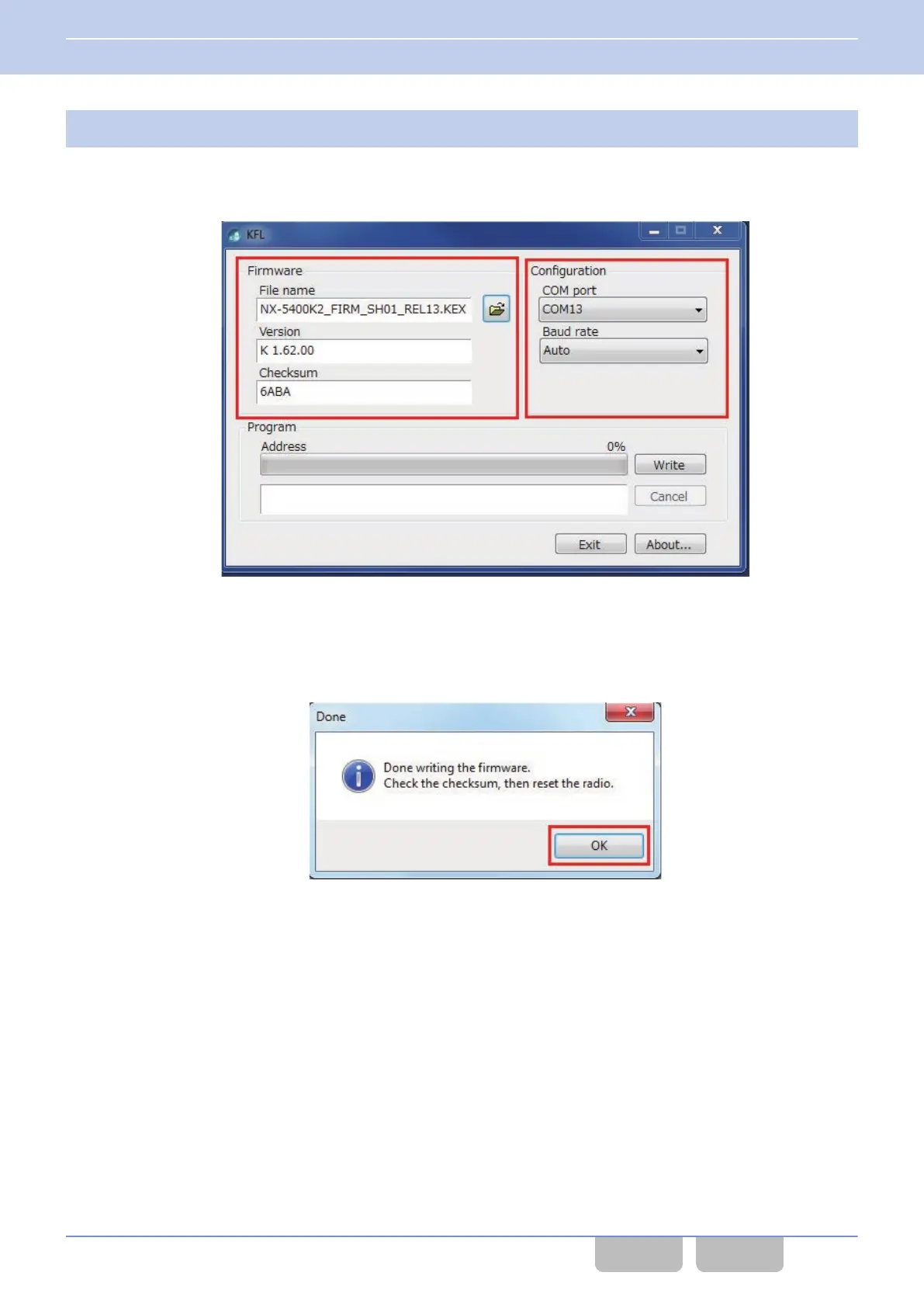

Figure 17-9 KFL
2.
Connect the transceiver to the PC by using KPG-46UM or KPG-46XM.
3. Click the “Write” button of KFL.
If the writing is successful, a message box appears.
4. Click the “OK” button.
Figure 17-10 Message Box
5.
Confirm the checksum of the firmware on the transceiver display.
Confirm that the appropriate firmware is written. If the checksum is incorrect, reexecute the operations from step
1 (Connect the RF Deck to the Control Head by using the KCT-71 cable, and turn the transceiver ON.).
6. Restart the transceiver.
17 STRUCTURING A MULTI RF DECK/ MULTI CONTROL HEAD
17.1 Initial Configuration for Multi RF Deck/ Multi Control Head
Common FUNC (K, F)/Ver 2.20 341
