234 8163A/B, 8164A/B, 8166A/B User’s Guide

8 Setting Attenuation and/or Power Levels

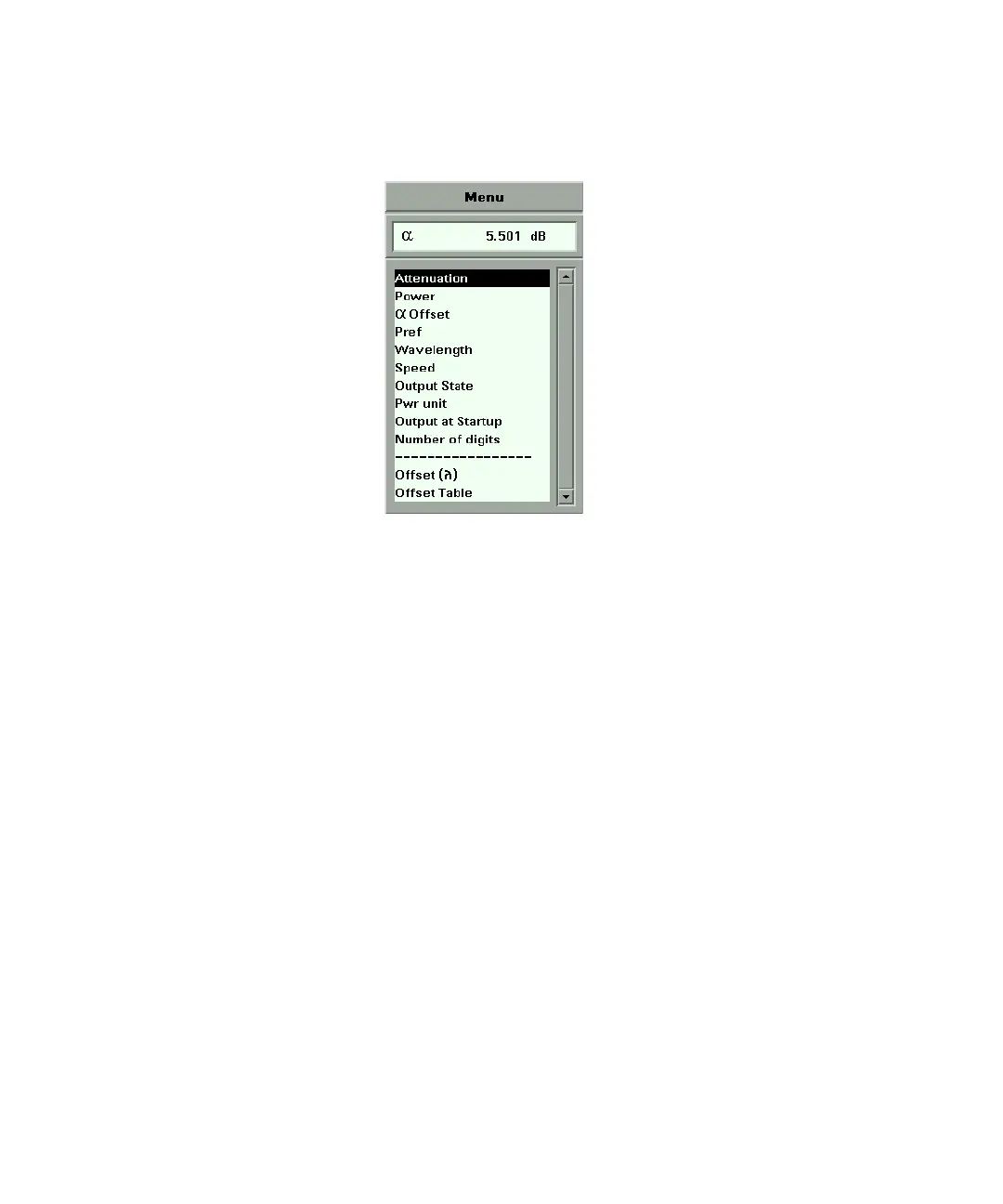

Figure 141 81570A/71A/73A Attenuator Menu Options

81576A/77A Menu Options

Press the [Menu] softkey to display the window shown in Figure 142 on

page -235:
