264 8163A/B, 8164A/B, 8166A/B User’s Guide
10 Applications

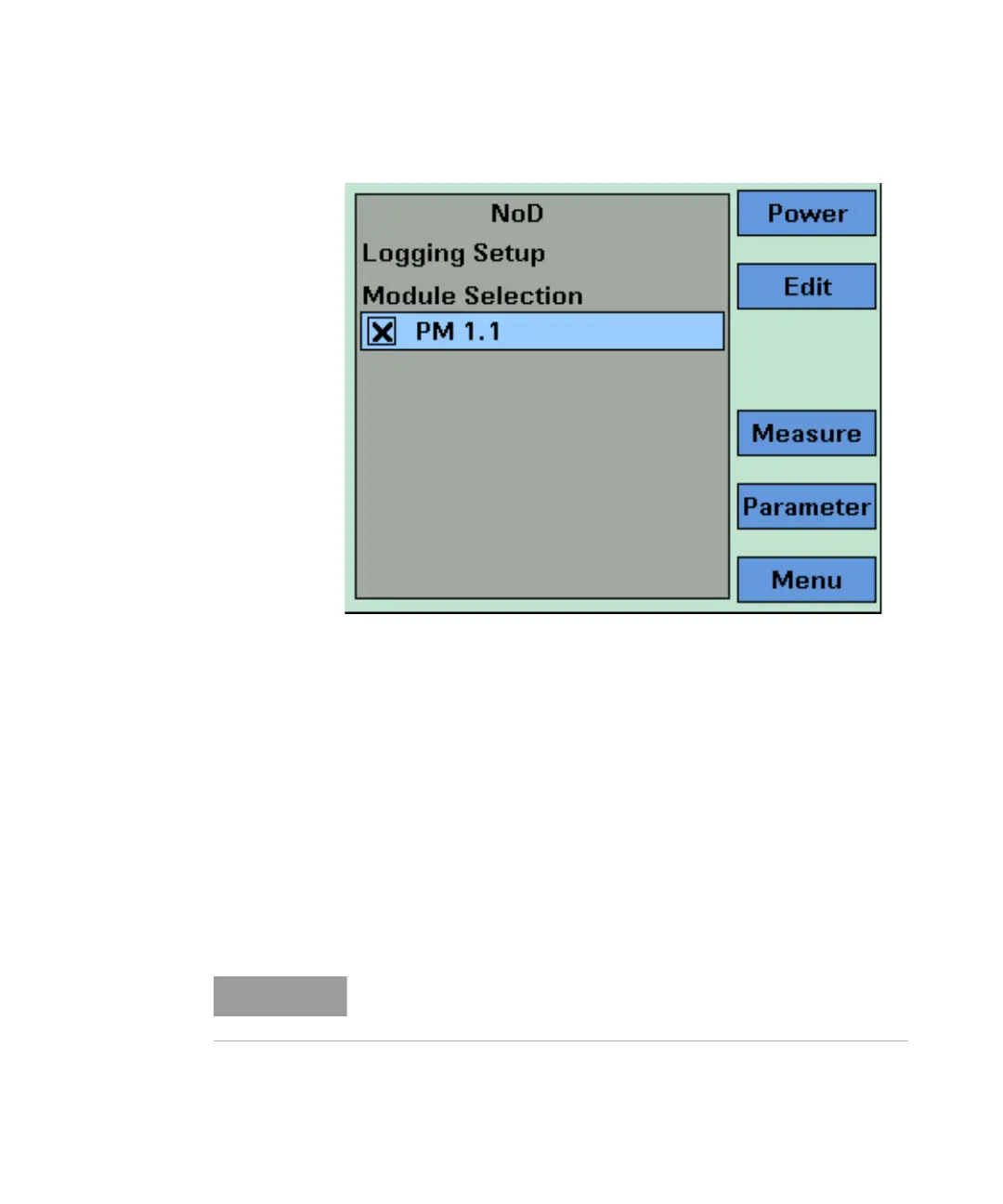

Figure 162 The Keysight 8163B Logging Modules Setup Screen
Selecting/Deselecting Power Meters
1 Move to the Module Selection box. As a default, all Power Meters are
selected, this means that all Power Meters will log power
measurements. Press [Edit].
2 To deselect a Power Meter channel, move to the Power Meter as
denoted by slot and channel numbers, see Slot and Channel Numbers
on page 39, press [Unset].
3 To select a Power Meter channel, press [Edit], move to the Power
Meter as denoted by slot and channel numbers, see Slot and Channel
Numbers on page 39, press [Set].
4 Perform steps until you have selected the required Power Meters for
your application and press Enter.
If no Power Meter channel is selected, you cannot ‘exit’ by pressing
Enter.
