8163A/B, 8164A/B, 8166A/B User’s Guide 265
Applications 10
Setting Power Meter Parameters

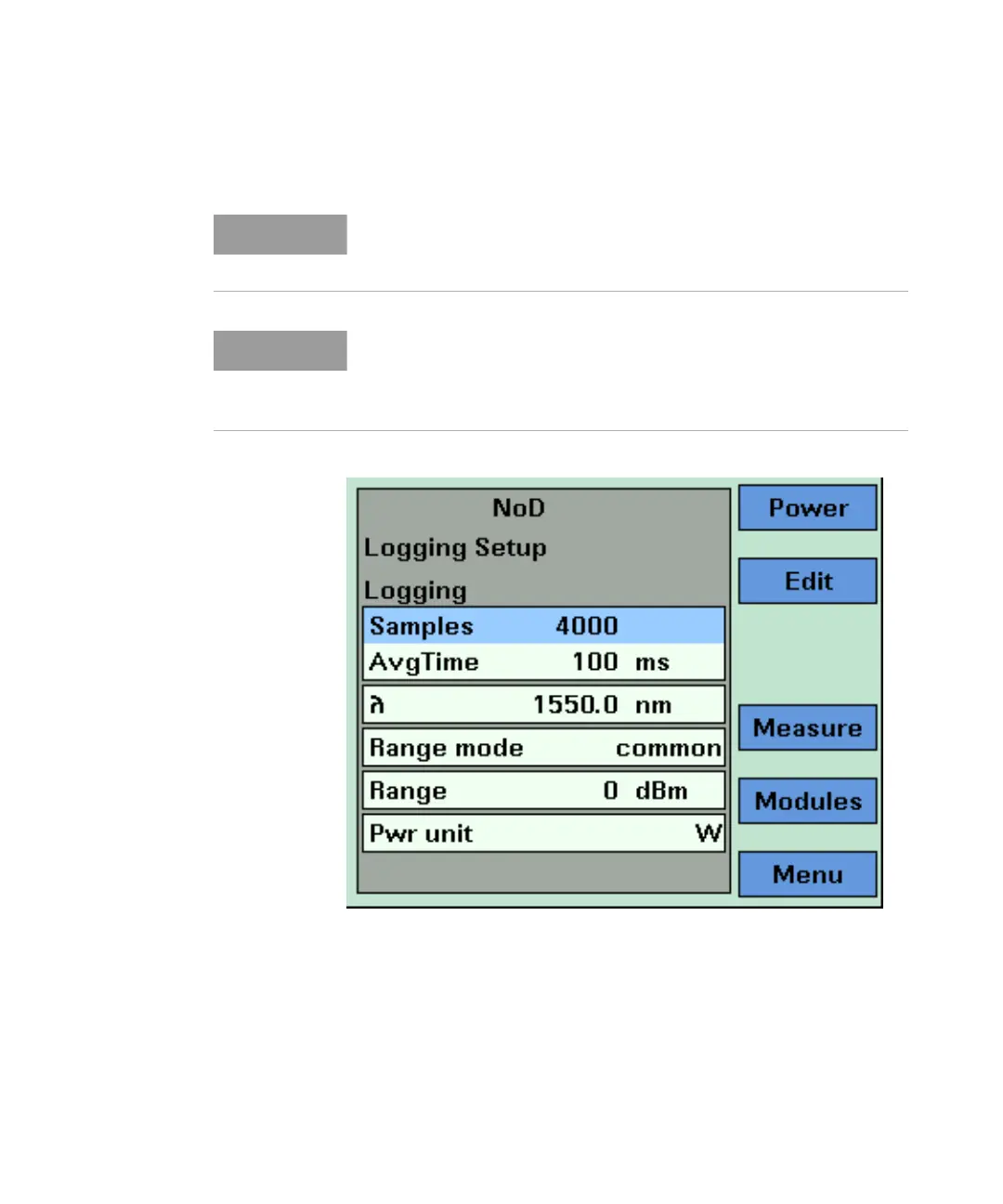

Figure 163 The Keysight 8163B Logging Parameter Setup Screen
1 Press [Menu] to access the Logging application menu screen.
2Move to <Pwr unit>, press Enter, move to <dBm>, <W>, or <dB>, and
press Enter. See What are the Power Units ? on page 101 for an
explanation of power units.
If you are using the 8164A/B Lightwave Multimeter, you may set all
Power meter parameters from the Logging Setup Screen, see
Figure 161
on page -263.
If you are using the 8163A/B Lightwave Multimeter, press [Parameter] to
access the Logging Parameter Setup Screen, as shown in
Figure 163 on
page -265. To return to the Logging Modules Setup Screen, press
[Modules].
