288 8163A/B, 8164A/B, 8166A/B User’s Guide
10 Applications

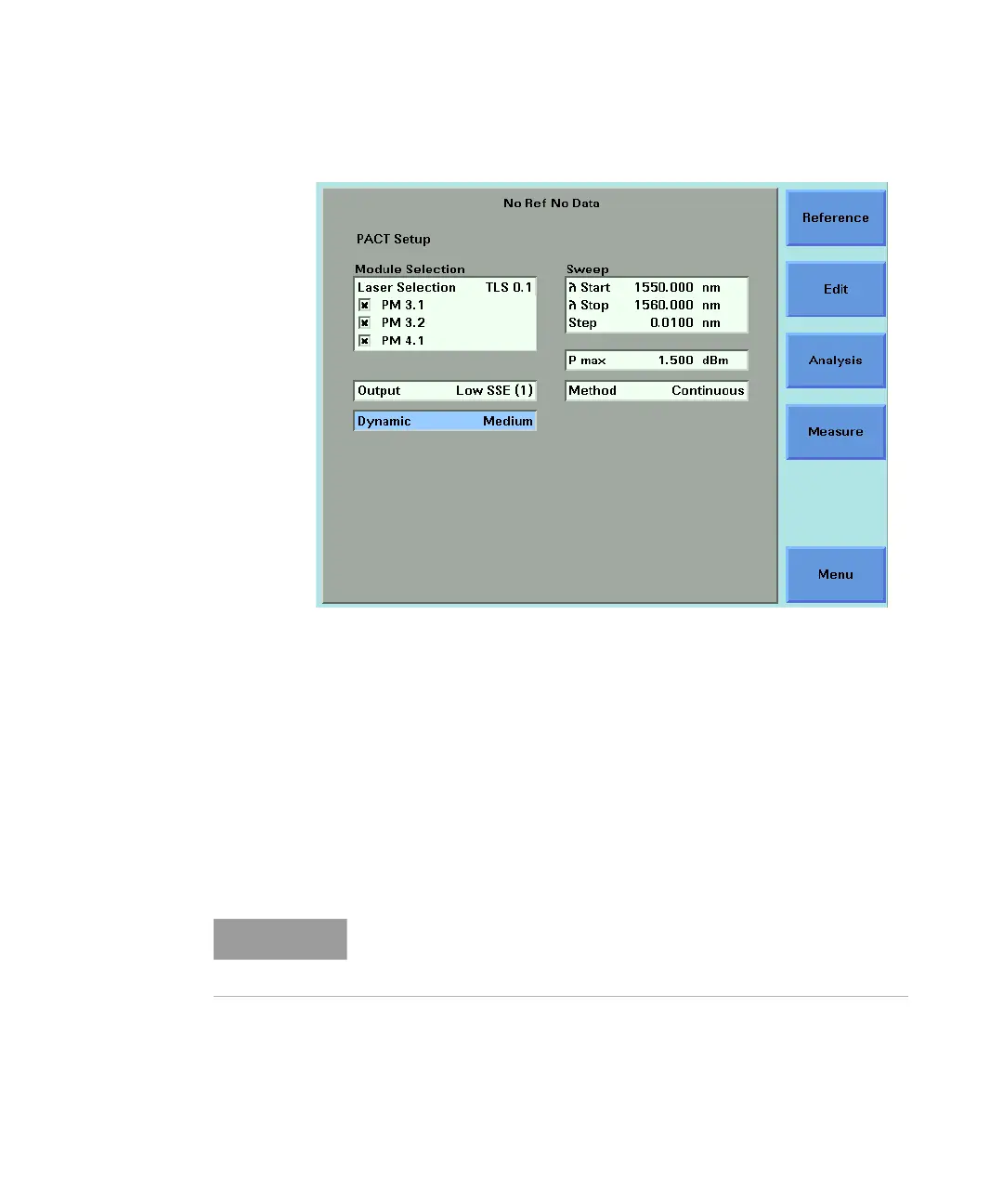

Figure 178 The PACT Setup Screen
Selecting a Tunable Laser Module
5 Move to the Module Selection box. As a default, the Tunable Laser
module with the lowest slot number is selected. Move to [Laser
Selection]. Press [Edit].
6 To select a Tunable Laser module, press [Edit], use the cursor key to
move to your preferred Tunable Laser module as denoted by slot and
channel numbers, see Slot and Channel Numbers on page 39, and
press Enter.
7 Perform steps until you have selected the required Tunable Laser
modules for your application and press Enter.
If no Tunable Laser module is selected, you cannot exit by pressing Enter.
PACT is not available for 81606A, 81607A, 81608A and 81609A. Instead
use the free N7700A IL Engine software for a PC.
