8163A/B, 8164A/B, 8166A/B User’s Guide 319

Installation and Maintenance 11

The AC power requirements are summarized on the rear panel of the

instrument.

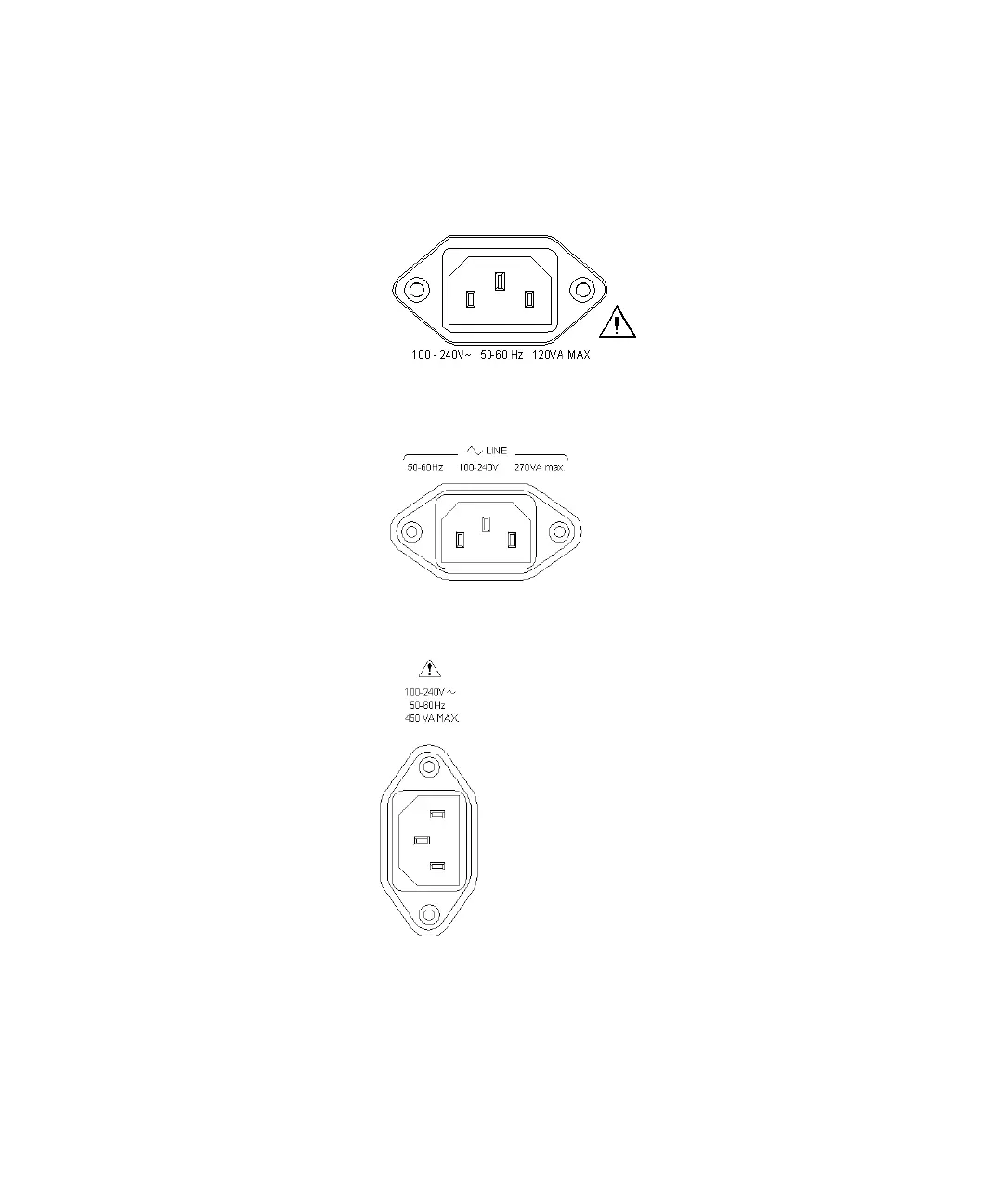

Figure 195 AC Power Requirement Markings - 8163A/B

Figure 196 AC Power Requirement Markings - 8164A/B

Figure 197 AC Power Requirement Markings - 8166A/B
