8163A/B, 8164A/B, 8166A/B User’s Guide 329
Installation and Maintenance 11

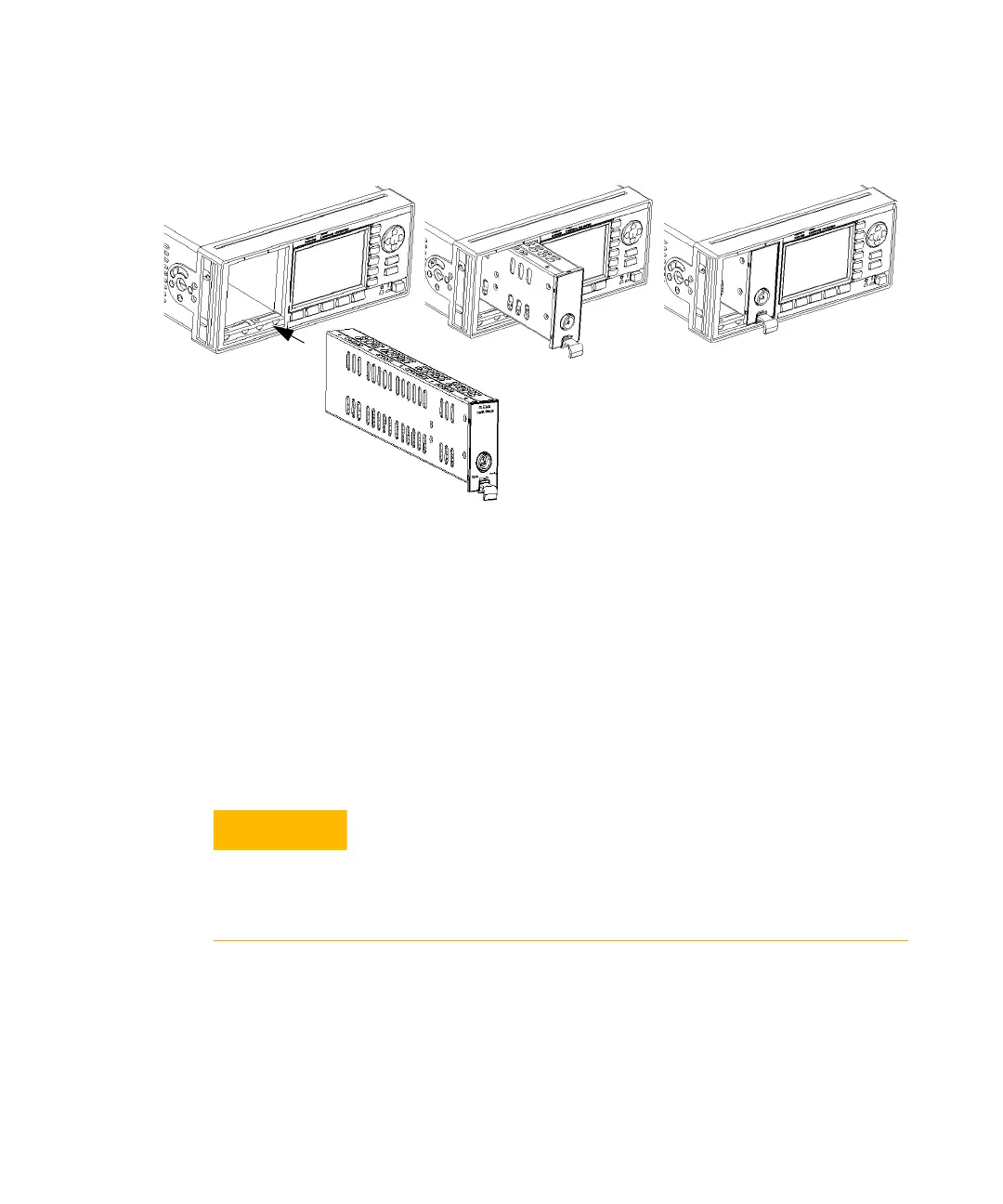

Figure 204 How to Insert a Front-Loadable Module
1 Position the module at an unoccupied slot, with the catch at the
bottom front of the module.
2 Insert the module into the slot and onto the tracks. If the module does
not slide in freely, check that you have correctly positioned and
correctly oriented it and that there is no obstruction to its movement.
3 Apply pressure to the front panel, and push the module as far as it
goes. You hear a small click when the module reaches its installed
position. This is the catch making contact.
How to Remove a Back-Loadable Module
Disconnect all electrical and optical connectors before you remove this
module from the instrument, as this can cause damage to the
connectors.
Make sure that the instrument is in stand-by mode, see page 55, before
you remove a module.
