8163A/B, 8164A/B, 8166A/B User’s Guide 41
Getting Started 1
Figure 9 on page -40 shows the overview screen for the 8164A/B
Lightwave Measurement System, this screen is shown immediately after
start-up. It shows the most important parameters of all installed modules

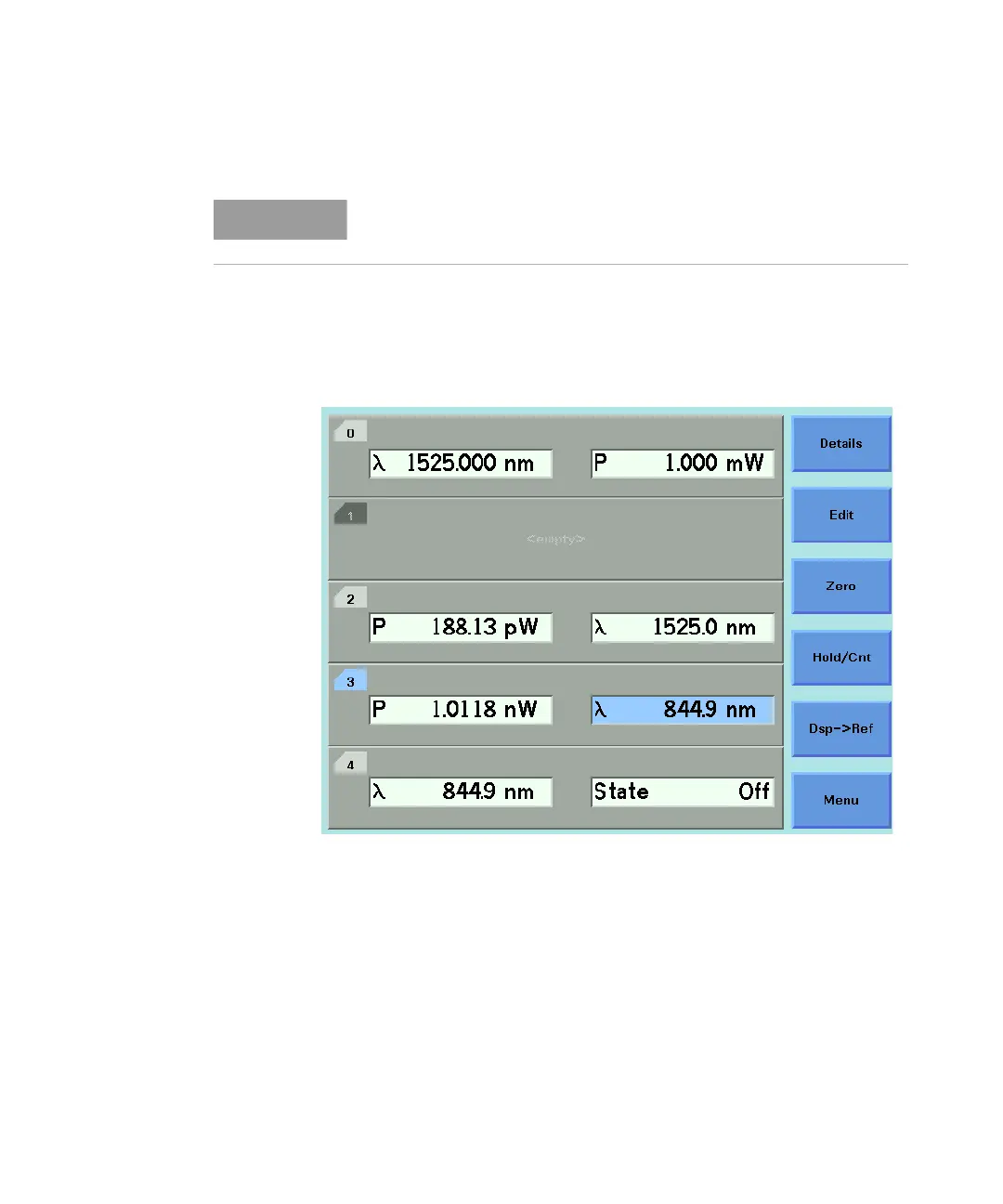

Figure 10 The 8164A/B’s Overview Screen
Figure 11 on page -42 shows the overview screen for the 8166A/B
Lightwave Multichannel System, this screen is shown immediately after
start-up. It shows the module slots that are occupied.
The display of the Keysight 8163A and the Keysight 8166A is
monochrome only.
