44 8163A/B, 8164A/B, 8166A/B User’s Guide
1 Getting Started
How to Change Channel
You can navigate between module channels by pressing the Channel
hardkey. You can use this key when either the overview screen or the
details screen is displayed.
How to Access the Details Screen
You can access the parameters of a module that are not shown on the
overview screen by pressing Channel to select the channel and pressing
the [Details] softkey. You should see the Details screen as shown in Figure
14 on page -44, Figure 15 on page -45, or Figure 16 on page -46.

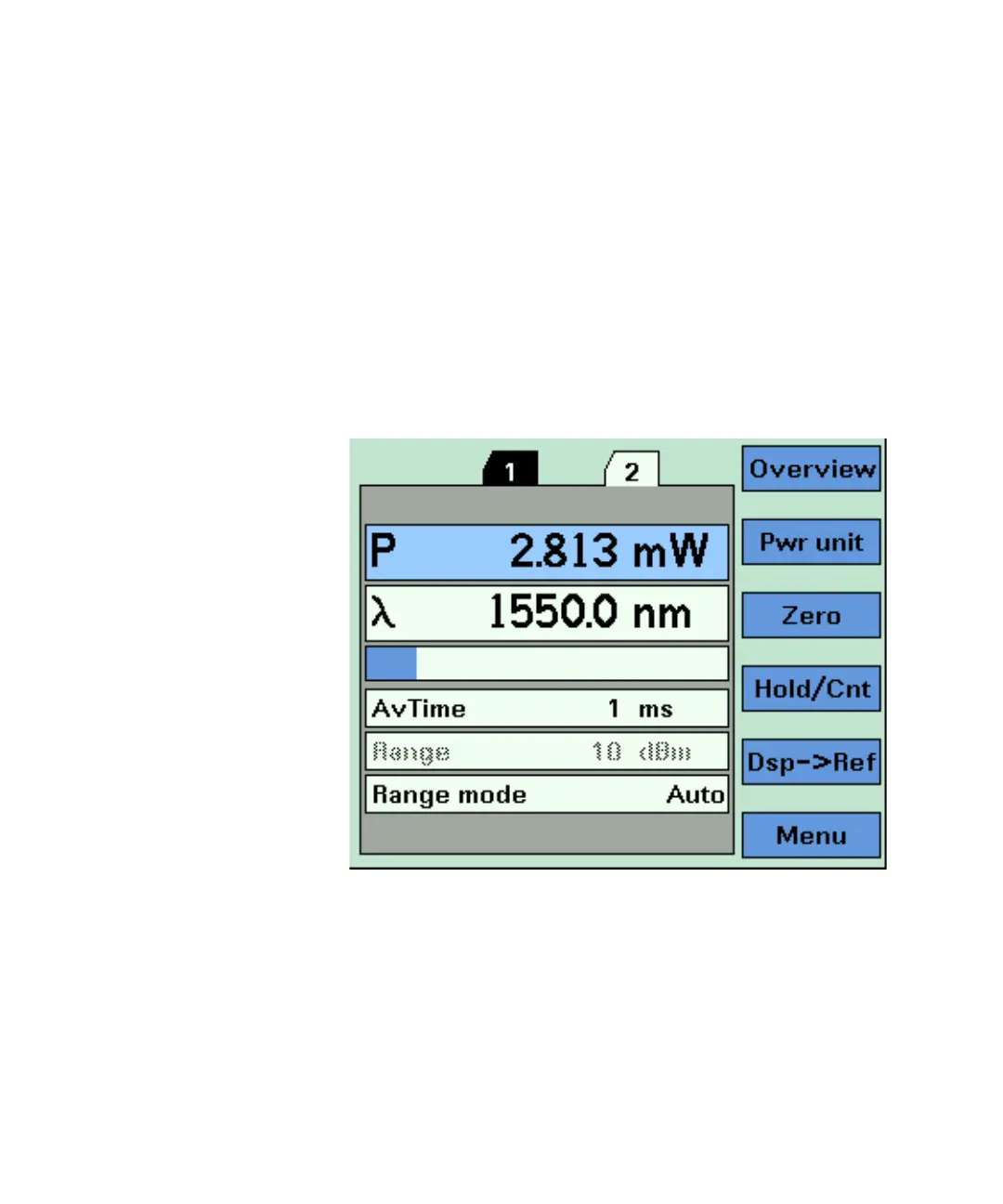

Figure 14 The 8163B’s Details Screen for a Power Sensor Channel
