76 8163A/B, 8164A/B, 8166A/B User’s Guide

2 Additional Information

Edit LAN Settings

Use the cursor keys (or the modify knob on the 8164B) to select “Edit LAN

Settings” in the “Configuration Menu”, then press the [OK] soft key.

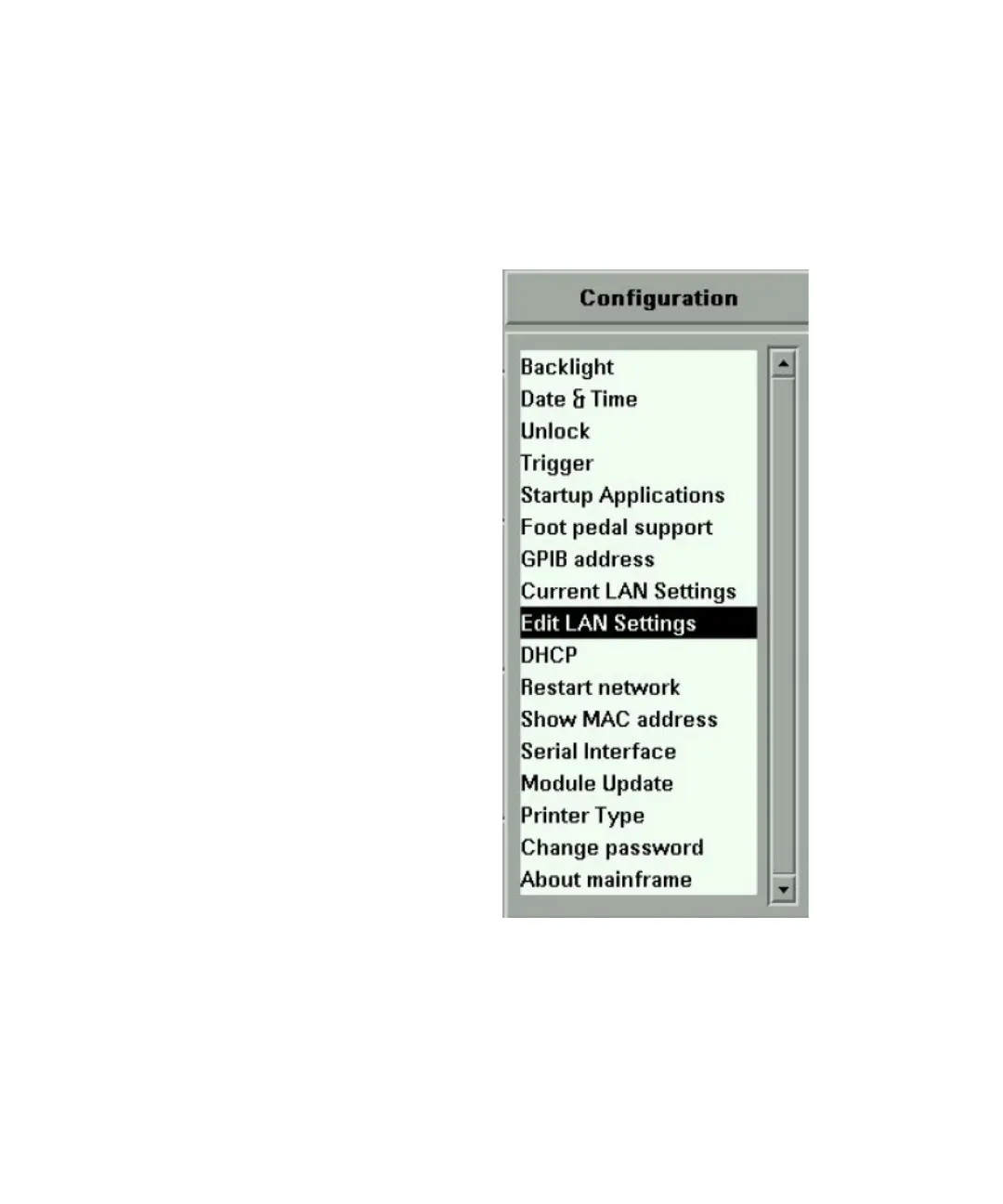

Figure 38 Configuration - Edit LAN Settings
