8163A/B, 8164A/B, 8166A/B User’s Guide 77

Additional Information 2

Edit the IP Address

Use the cursor keys (or the modify knob and the numeric keypad on

the 8164B) to edit the IP address.

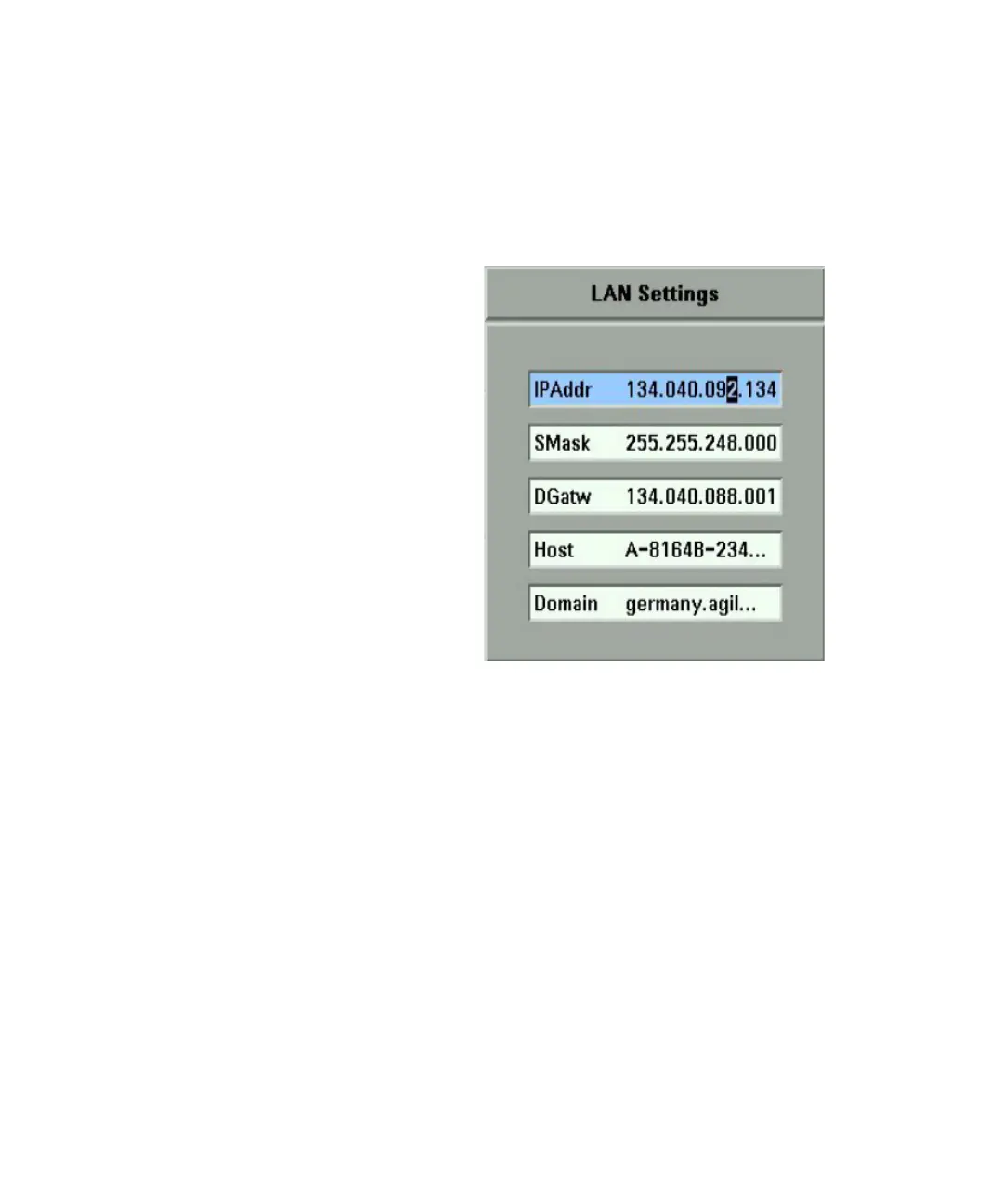

Figure 39 LAN Settings - IP Address
