78 8163A/B, 8164A/B, 8166A/B User’s Guide
2 Additional Information
Edit the Subnet Mask
You can edit the subnet mask with the cursor keys:
•
[up] – set one more bit
•
[down] – clear one more bit
•
[left] – clear the actual byte and jump one byte left
•
[right] set all bits in the actual byte, jump one byte right, and set the
first byte in it
The modify knob on the 8164B works like the [up] and [down] buttons.

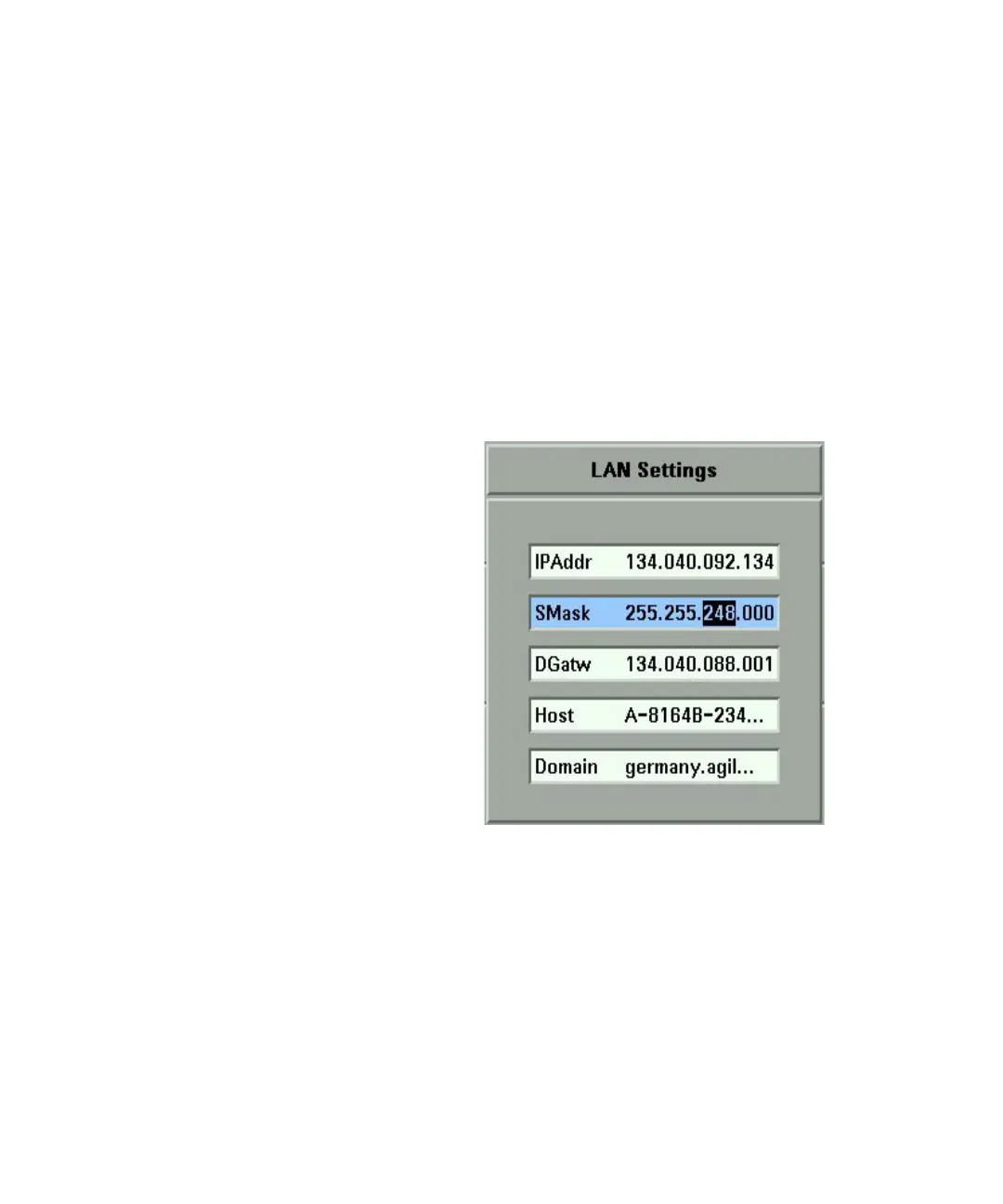

Figure 40 LAN Settings - Subnet Mask
