8163A/B, 8164A/B, 8166A/B User’s Guide 79

Additional Information 2

Edit the Default Gateway

Use the cursor keys (or the modify knob and the numeric keypad on the

8164B) to s edit the IP address.

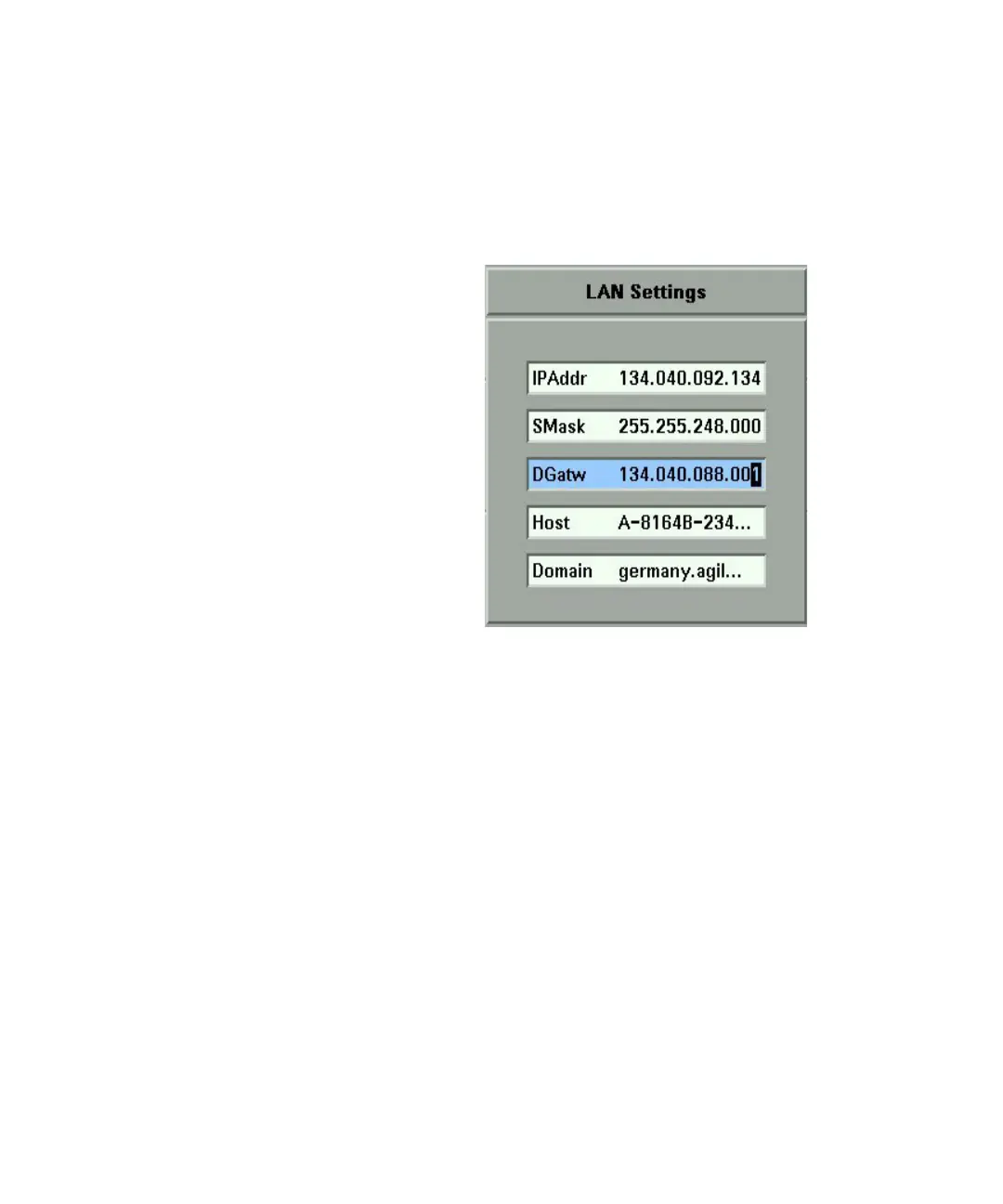

Figure 41 LAN Settings - DGatw
