Keysight EXG and MXG X-Series Signal Generators User’s Guide 143
Using Pulse Modulation for All Models with Options UNU, UNW, 320
Pulse Train (Option 320 – Requires: Option UNW)

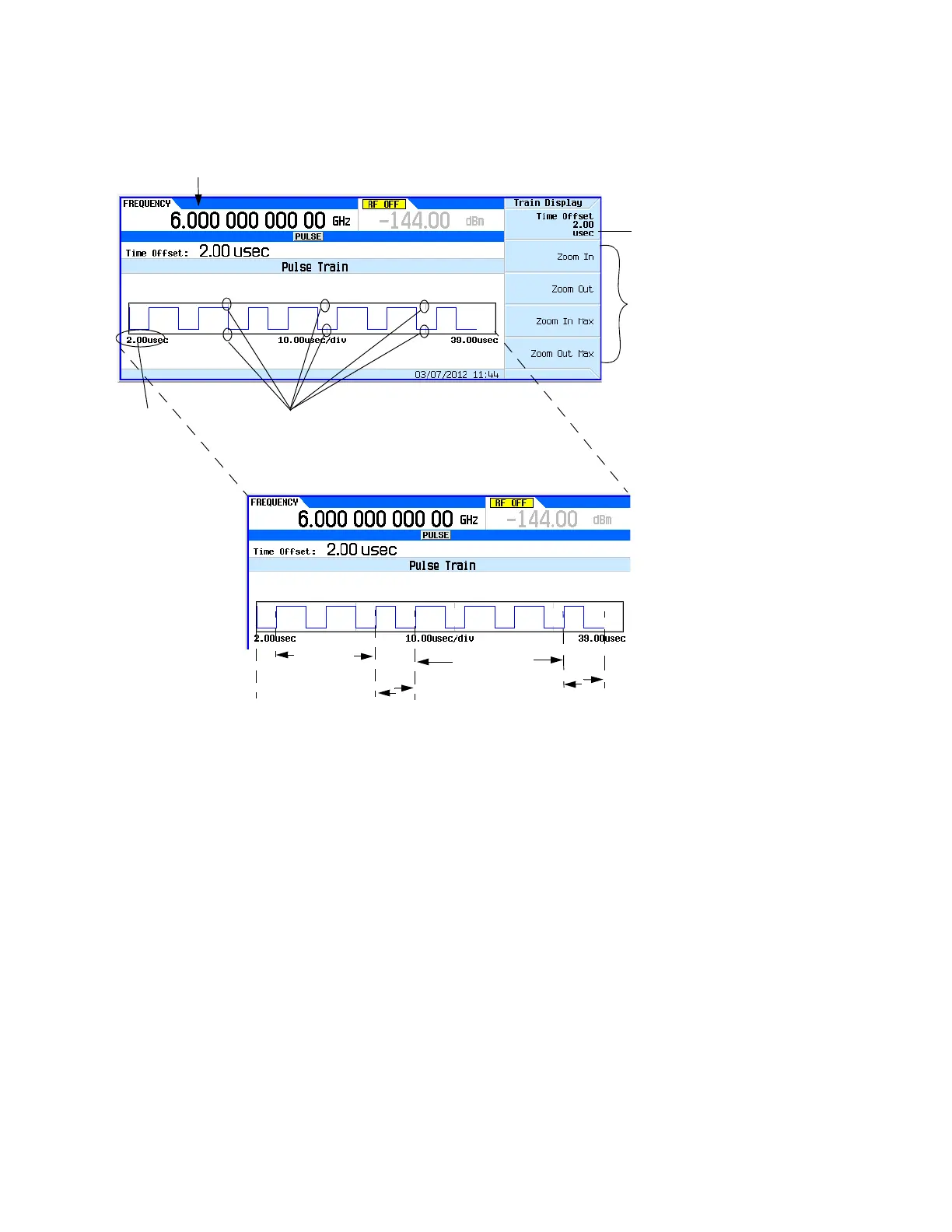

Figure 6-6 Display Pulse Train Menu Softkeys
Pulse > Pulse Source > More > Pulse Train > Edit Pulse Train > Display Pulse Train
Use these softkeys to optimize
the view of the different
characteristics of the pulse
train.
This softkey shifts the time
offset from the left hand side
of the display to the one
specified. Increments and
decrements are 1/20th of
the visible pulse train.
This value can be
adjusted with the
Time Offset softkey.
These are the division markers currently
set at 10.00 us/div for the currently
displayed view. Use the zoom softkeys
to change the time/div value.
This is the initial
pulse cycle (row 1)
note that the On
Time portion of this
pulse is not showing
due to the
2 us offset.
5th, 6th, and 7th
pulse cycles
(elements) or rows
Final pulse cycle
(element) in the
displayed pulse
train above. 8th
pulse cycle or row.
2nd and 3rd
pulse cycles
(elements) or
rows 2 and 3.
4th pulse cycle
(element) or row 4.
For details on each key, use key help as described on page56.
