Keysight EXG and MXG X-Series Signal Generators User’s Guide 283

Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657

Using the Arbitrary Waveform Generator

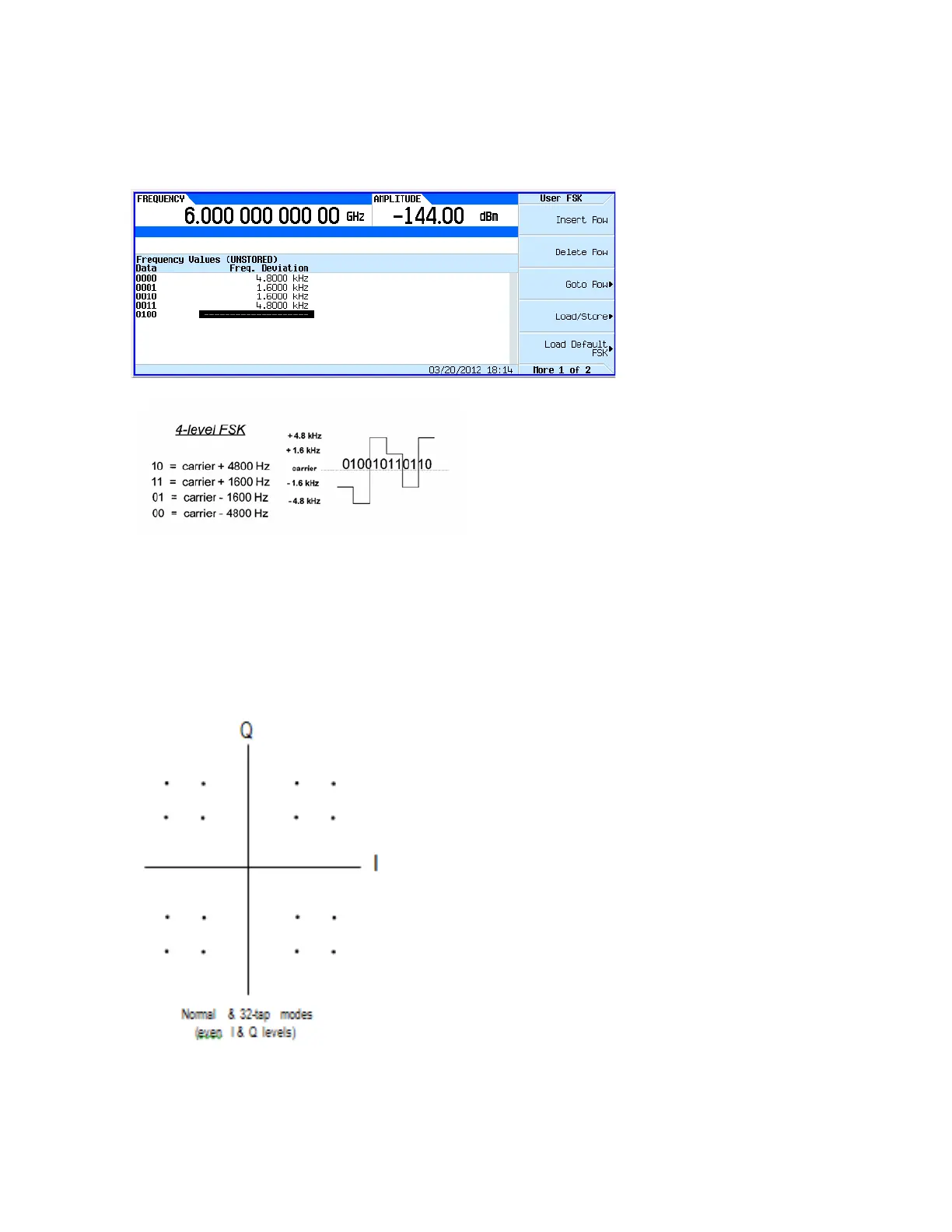

Figure 9-22 FSK Table Editor

Mapping I/Q Values with the I/Q Table Editor

In most digital radio systems, the frequency of the carrier is fixed so only phase and magnitude

need to be considered. The phase and magnitude of symbols can be represented as a discrete point

in the I/Q plane. I represents "in phase" and Q represents "quadrature".

Figure 9-23 I/Q Constellation Diagram

Mode > Real-Time Custom Modulation > Modulation Setup > Modulation Type > Define User FSK

For details on each key, use key

help as described on page56.
