Keysight EXG and MXG X-Series Signal Generators User’s Guide 307

Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657

Differential Encoding

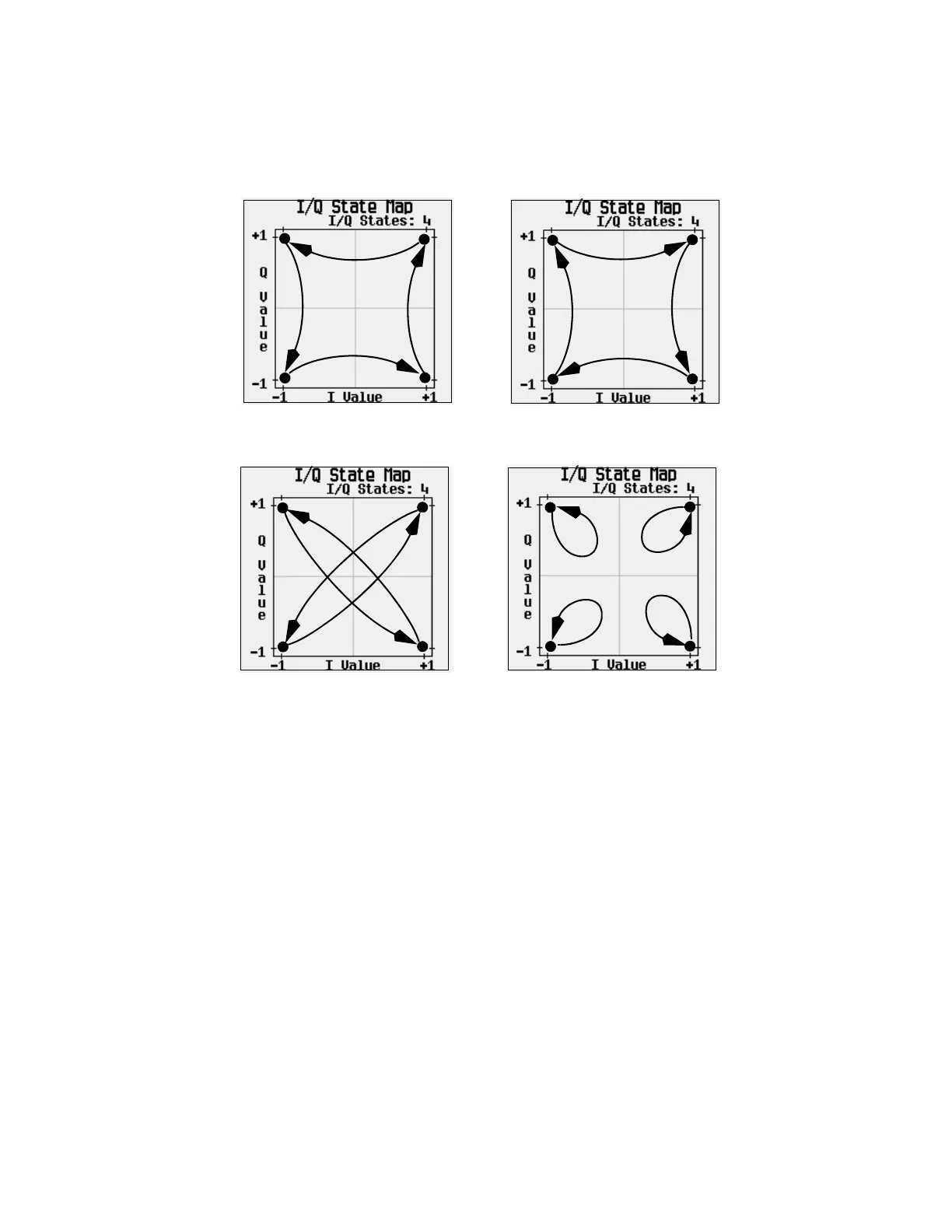

These symbol table offsets will result in one of the transitions, as shown.

Data Value 00000001

transition 1 state backward

with Symbol Table Offset –1

Data Value 00000010

transition 2 states forward

with Symbol Table Offset +2

Data Value 00000011

no transition

with Symbol Table Offset 0

Data Value 00000000

transition 1 state forward

with Symbol Table Offset +1
