408 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Using BERT for N5172B/82B with Option UN7

Bit Error Rate Test

In this example, synchronization occurs after receiving a trigger.

The reference data is generated by stored data bits. If the BERT measurement accepts data bits

immediately after receiving a trigger, set the trigger delay to On and the trigger delay count to a

value corresponding to the data format. For PN9 set the delay to 9. Refer to Figure 16-9.

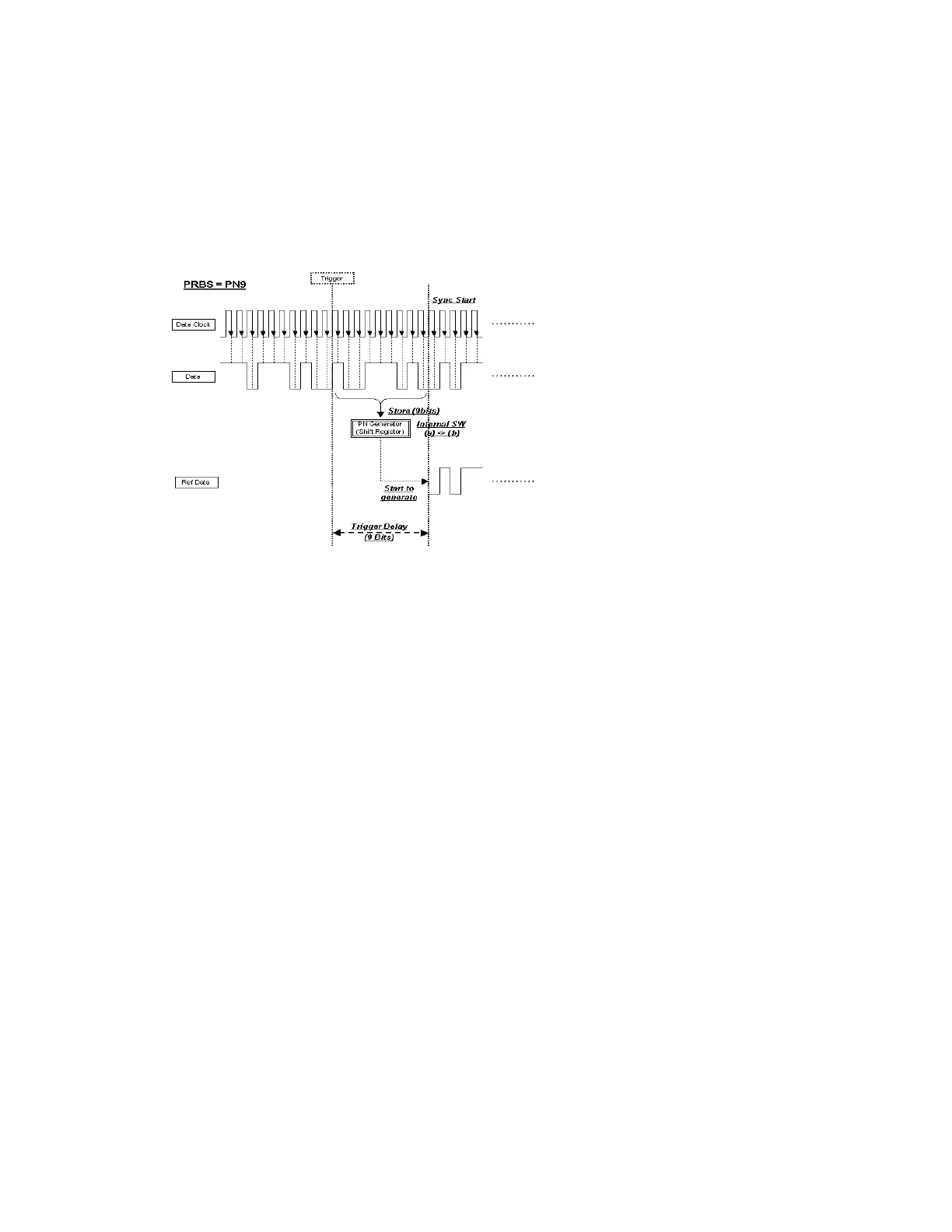

Figure 16-9

Default Chapter5
