438 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using the N5102A Digital Signal Interface Module for N5172B/82B with Option 003/004 and
653/655/656/657
Operating the N5102A Module in Output Mode

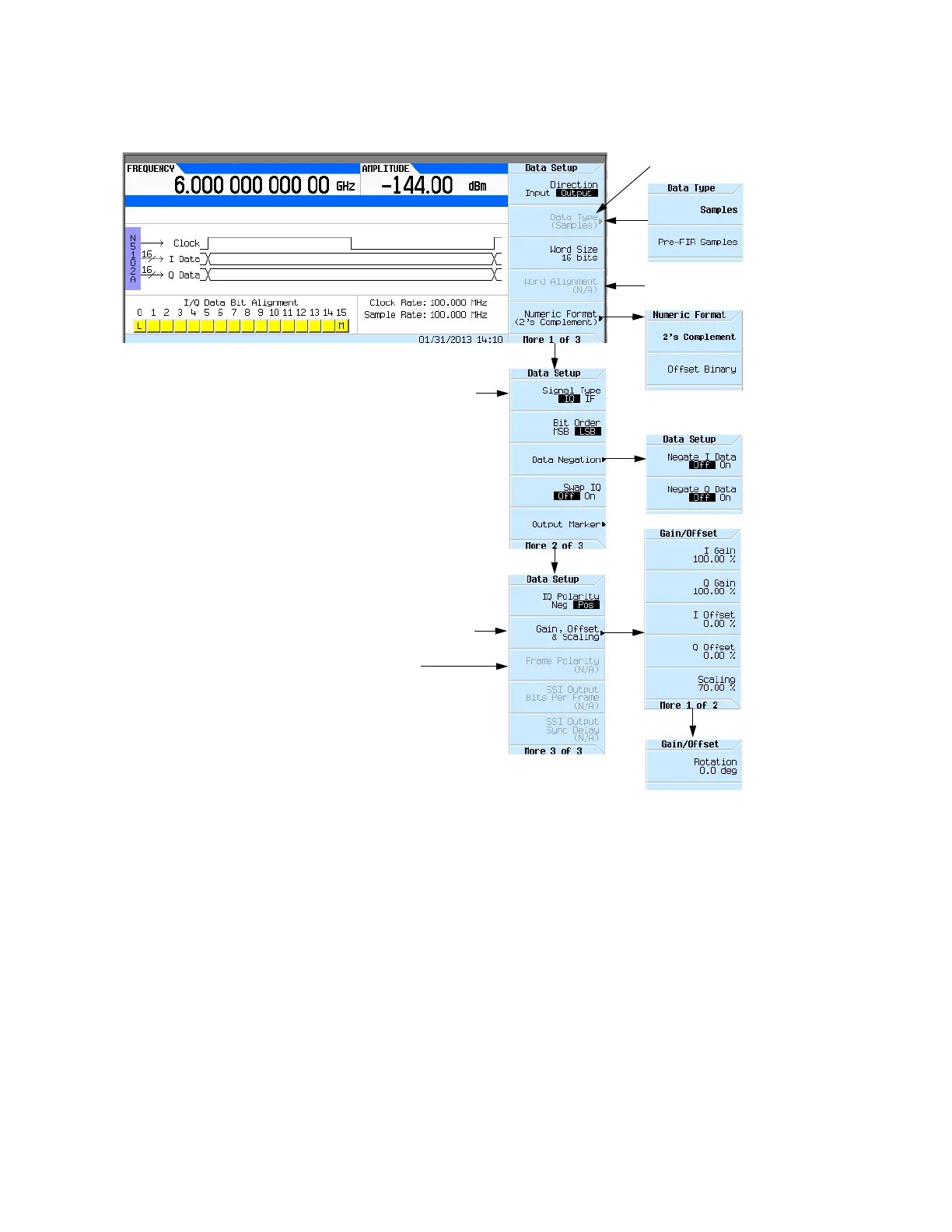

Figure 17-13 Data Setup Softkey Menu with Parallel Port Configuration
2. If a real-time modulation format or the real-time modulation filter feature in Dual ARB is being
used, press the Data Type softkey.
In this menu, select whether the real-time baseband data from the signal generator is either
filtered (Samples) or unfiltered (Pre-FIR Samples). The selection is dependent on the test
needs. The Samples selection provides FIR filtered baseband samples according to the
communication standard of the active modulation format. This is the preset selection and the
one most commonly used. However if the device being tested already incorporates FIR filters,
the Pre-FIR Samples selection should be used to avoid double filtering.
3. Select the data type that is appropriate for the test.
4. Press the Numeric Format softkey.
From this menu, select how the binary values are represented. Selecting 2’s complement
allows both positive and negative data values. Use the Offset Binary selection when
components cannot process negative values.
Inactive for a serial port
Frame polarity is active
configuration
for a serial port configuration
Inactive for ARB formats
Inactive for word
size = 16 bits
Available only while in
output mode
To Next Page
