Keysight B2980B User’s Guide, Edition 1 143
Front Panel Reference
Display and Assist/Function Keys
3. The following sub-panel or condensed graph can be displayed.
You can switch them using Show/Hide XXXX assist keys.
• Range setup sub-panel
• Source function sub-panel
• Trigger setup sub-panel

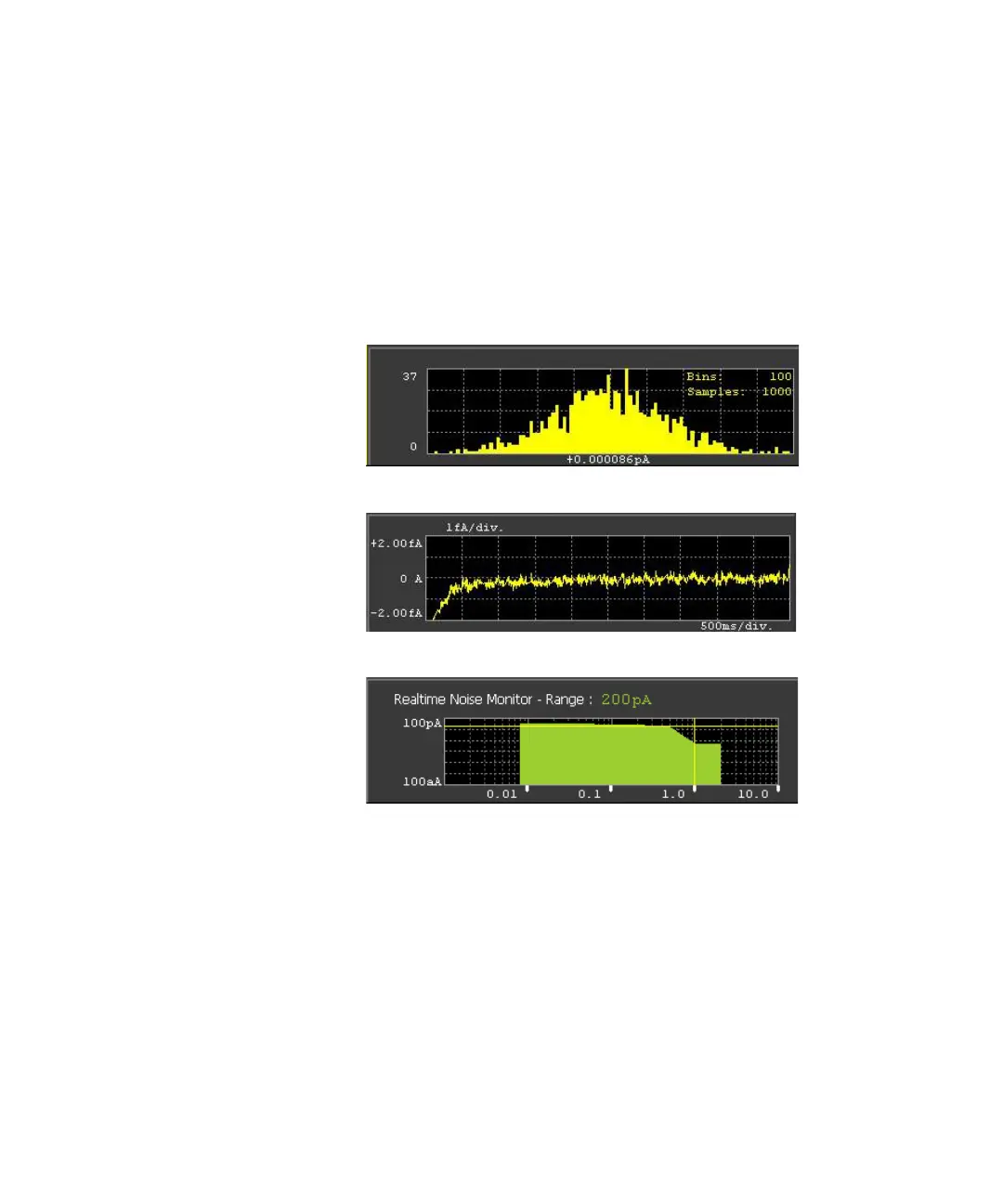

• Condensed histogram
• Condensed roll graph (time-domain graph, standard display)
• Real-time noise monitor
4. Function keys
See “Function Keys” on page 144.
5. Assist keys
See “Assist Keys” on page 149.
6. Voltage Source: Output voltage of the voltage source
7. Source shape indicator. DC, staircase sweep, list sweep, or square wave. DC
does not show the indicator.
