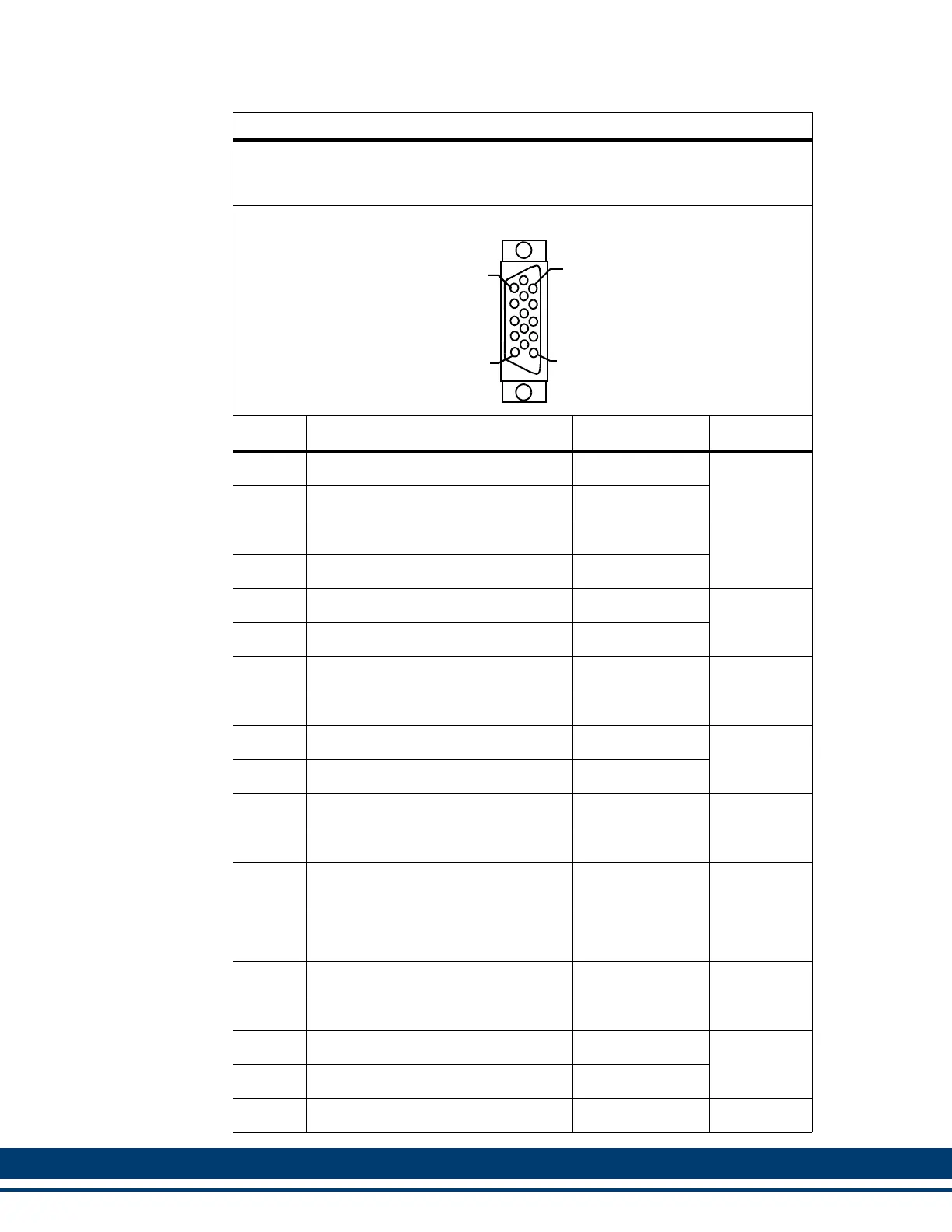

MMC Smart Drive Hardware Manual - S200-DLS DRIVE
Table 8-7: Aux Feedback Port to Flying Lead Cable
Part Numbers: 1 M (3.3 ft): M.3000.0805 3 M (9.8 ft): M.3000.0806
6 M (19.7 ft): M.3000.0807 9 M (19.5 ft): M.3000.0808
Cable type: 28 AWG (pins 6 & 14 16 AWG), shielded, twisted pair, 16 conductor.
15-Pin HD male D-sub (to Aux Feedback Port, face view)
Pin Signal Color Notes
1 A1 White Twisted
2 A1/ White/Yellow Pair
3 B1 Blue Twisted
4 B1/ White/Blue Pair
5 I1, RS-485 Data+ Black Twisted
10 I1/, RS-485 Data- White/Black Pair
8 Commutation Track S3 Red Twisted
Not Connected White/Red Pair
14 +5V source Gray Twisted
6 Common White/Gray Pair
11 Temperature Green Twisted
Not Connected White/Green Pair
12
Commutation Track S1, RS-485
Clock+
Violet Twisted
13
Commutation Track S2, RS-485
Clock-
White/Violet Pair
Not Connected Orange Twisted
Not Connected White/Orange Pair
7 Not Used Brown Twisted
Not Connected White/Brown Pair
Shell Drain N/A
5
1
15
11
