MMC Smart Drive Hardware Manual - RESOLVER INTERFACE OPTION MODULE

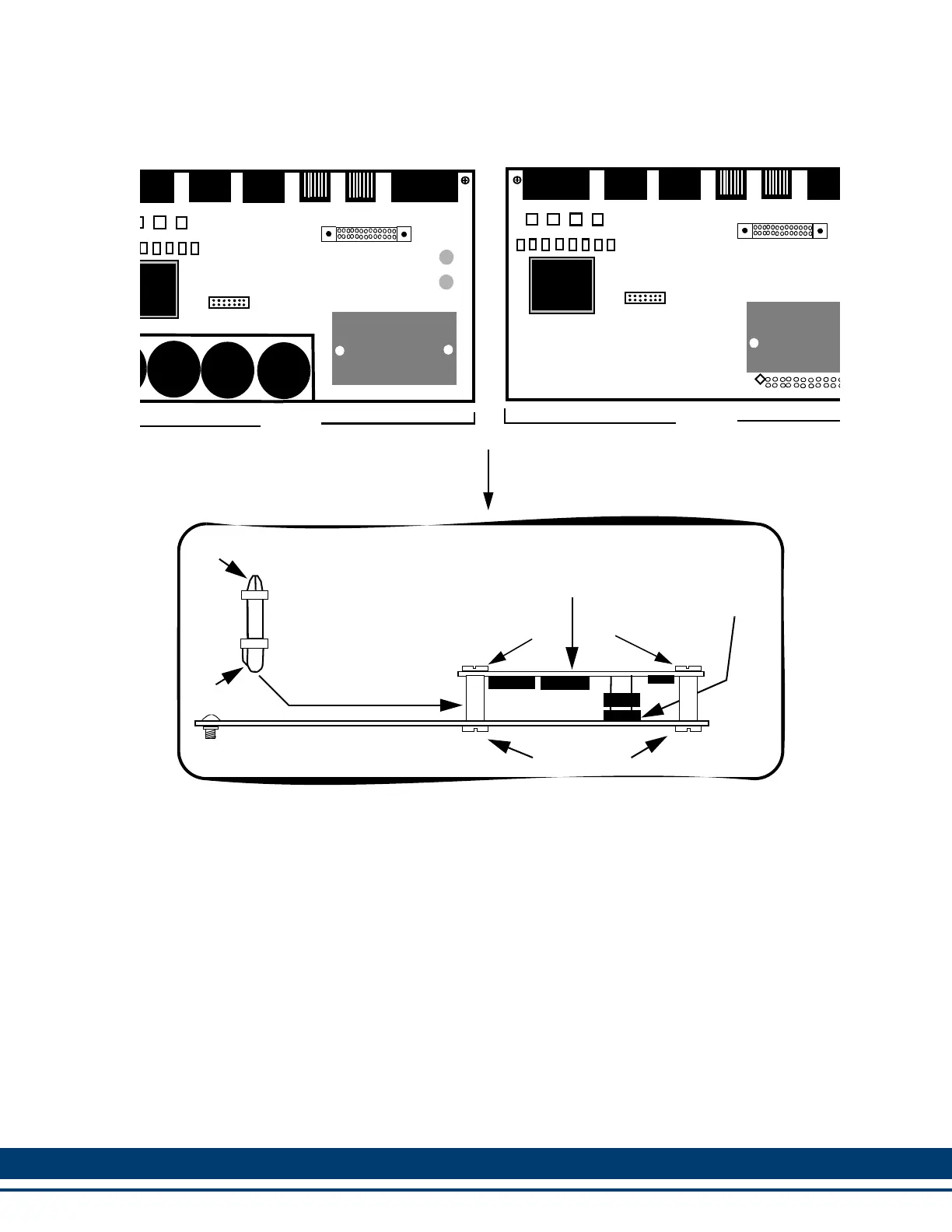

Figure 11-2: : Shunt Removed and Resolver Module Installed
Resolver
Module
230V MMC Smart
Drive Board
View A
Resolver
Module
460V MMC Smart
Drive Board
Connector side of Board
View A
MMC Smart Drive Board
Resolver
Nylon Screw
24 PIn
Dip Socket
Module
(Shunt Removed)
View A
Nylon Screw
Locking Tab
Slotted Tip
Orientation of one-piece
snap-in standoff (if threaded
standoff is not installed)
