MMC Smart Drive Hardware Manual - DRIVE RESIDENT DIGITAL MMC CONTROL

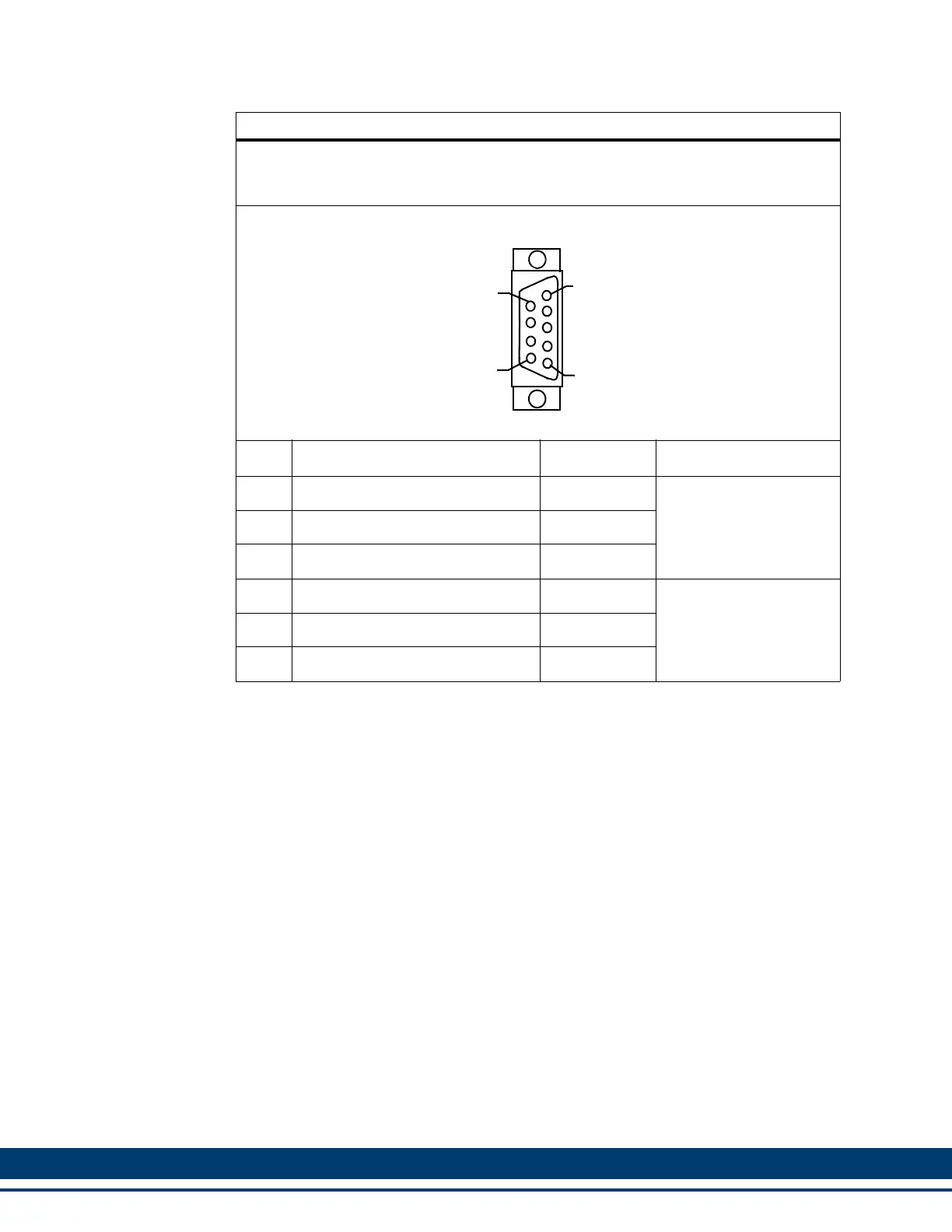

Table 12-5: Block I/O Port to Flying Lead Cable
Part Number: M.1016.2568
Length: 3 M (10 ft)
Cable type: 24 AWG, twisted pair (individually shielded), 4 conductor.
9-Pin male D-sub (to Block I/O Port, face view)
Pin Signal Color Notes
3 Transmit Data + White Twisted
4 Transmit Data - Black Pair
7 Shield N/A with Shield
5 Receive Data + Red Twisted
6 Receive Data - Black Pair
7 Shield N/A with Shield
1
9
5
6
