GETTING STARTED MANUAL

WRXi-A-GSM-E Rev A 105

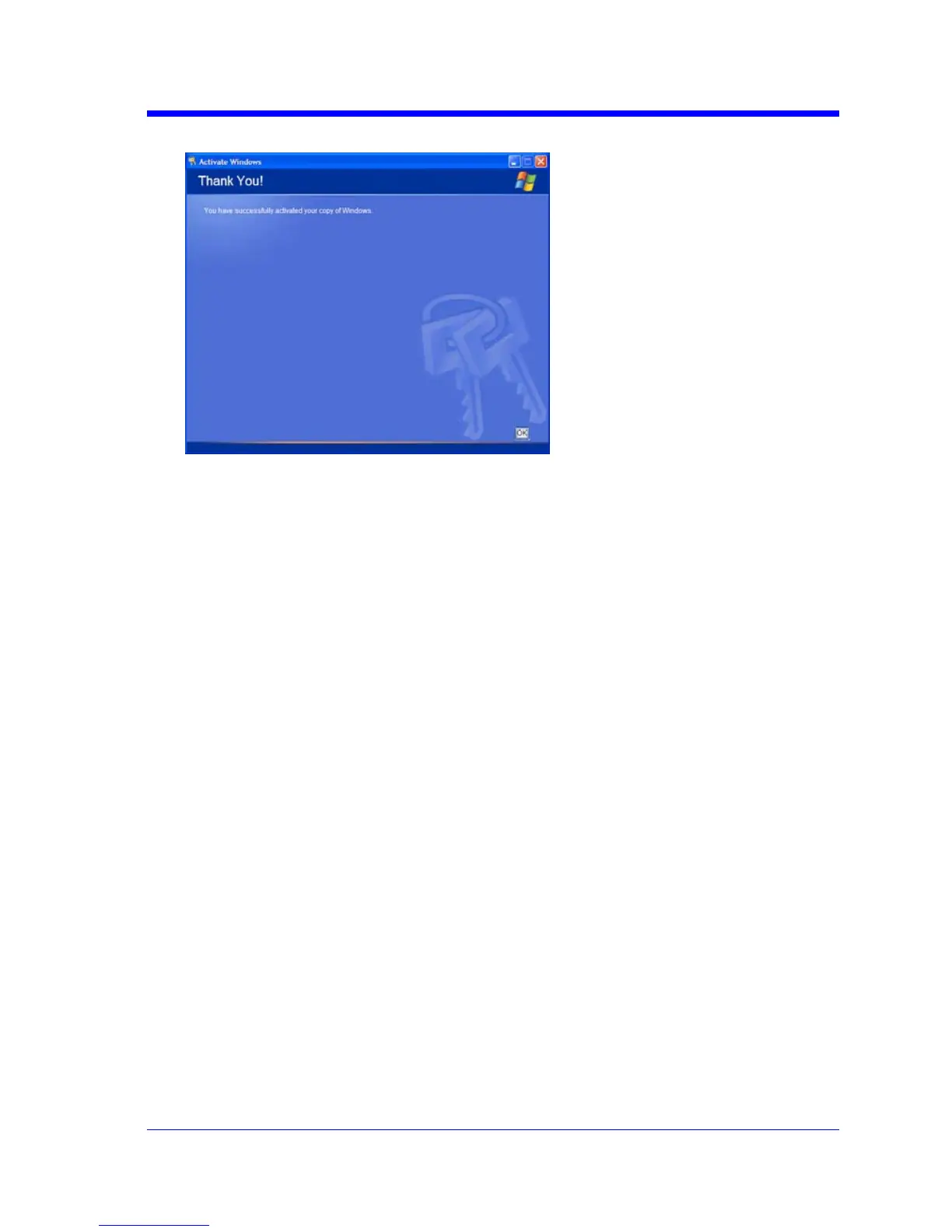

5. Whenactivationiscompleted,theThankYou!screenisshown.ClickOK.

6. ChecktherevisionlevelsoftheX‐Streamsoftware,virusdefinitions,and

Windowsupdates.Visitthevendors’Websitesanddownloadallnecessary

updates.
