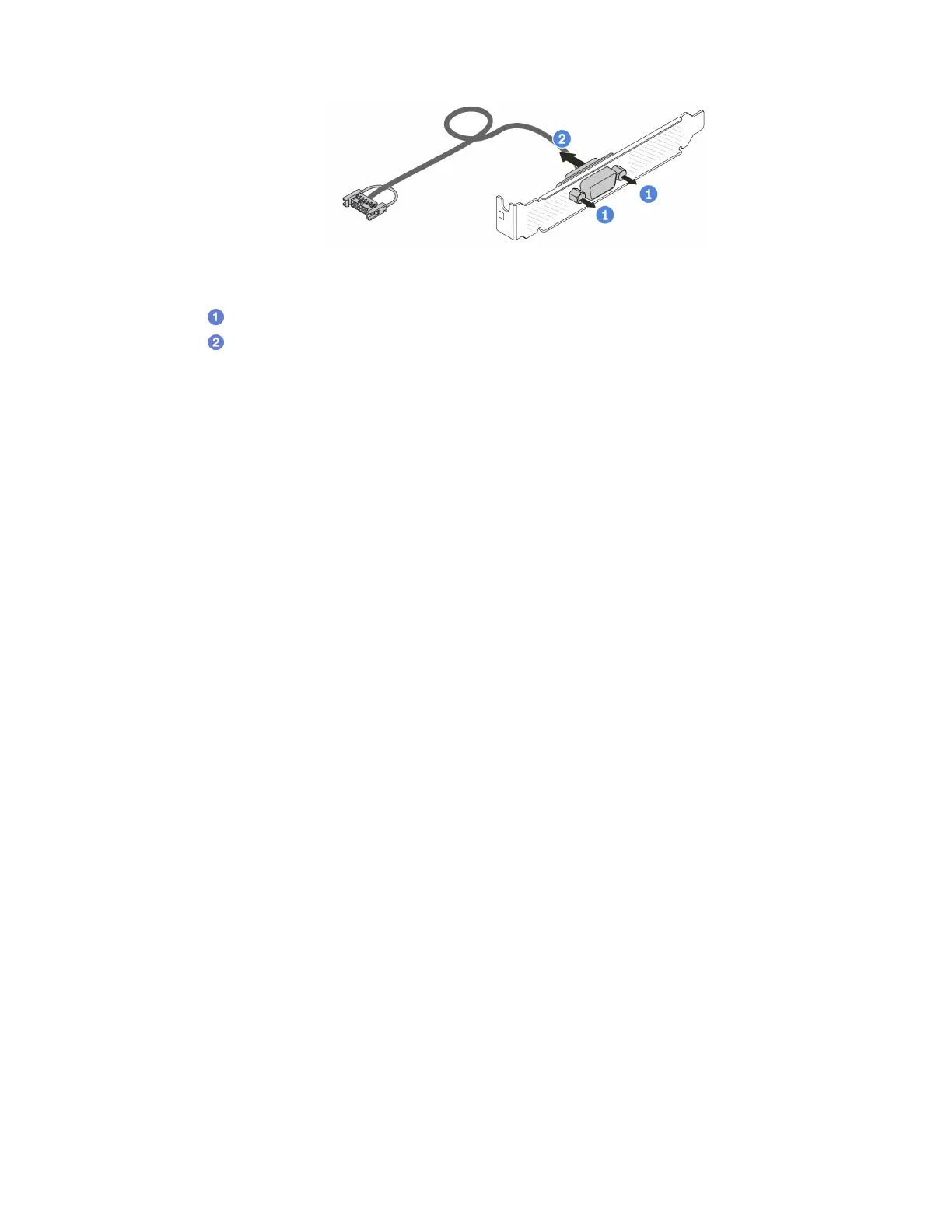

Figure 186. Disassembling the serial port module
a.
Loosen the two screws.
b.
Pull out the serial port cable from the bracket.
After you finish
1. Install a new serial port module, a PCIe adapter, or a PCIe slot bracket to cover the place. See
“Install a
serial port module” on page 219
and “Install a PCIe adapter” on page 171.
2. If you are instructed to return the component or optional device, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Install a serial port module
Use this information to install a serial port module.
About this task
Attention:
• Read
“Installation Guidelines” on page 51 and “Safety inspection checklist” on page 52 to ensure that you
work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See
“Power off the server” on page 68.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding systems.
• Read the
“PCIe slots and adapters” on page 61 to ensure that you install the serial port module to a
correct PCIe slot.
Watch the procedure
A video of this procedure is available on YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-
CfNsWy-689CRZHExrZEi9I
.
Procedure
Step 1. Touch the static-protective package that contains the component to any unpainted surface on the
outside of the server. Then, take the component out of the package and place it on a static-
protective surface.
Step 2. Use a 5 mm wrench to install the serial port cable into the bracket.
Chapter 5. Hardware replacement procedures 219
