Motor control (MCTRL)
Motor selection/Motor data
5.1 Motor selection/Motor data
The motor data term comprises all parameters that only depend on the motor and that
only characterise the electrical behaviour of the machine. The motor data are independent
of the application in which the controller and the motor are used.

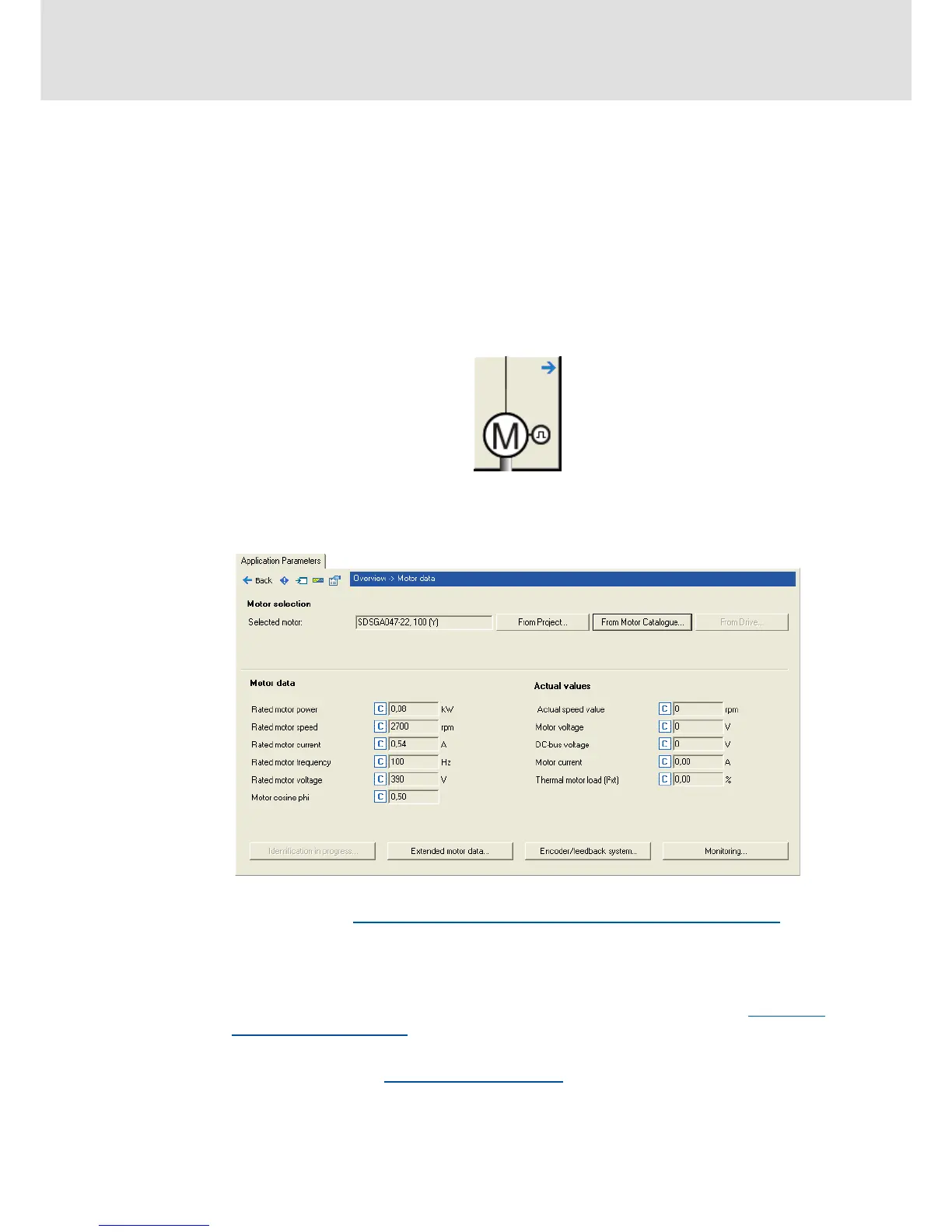

Proceed as follows to open the dialog for parameterising the motor data:
1. »Engineer« Go to the Project view and select the 8400 StateLine controller.
2. Go to Workspace and change to the Application parameters tab.
3. Go to the Overview dialog level and click the following button:
Parameterisation dialog in the »Engineer«
Via the From Motor Catalogue button, the motor catalogue can be opened to select
another motor.
Selecting a motor from the motor catalogue in the »Engineer« ( 110)
Via the From drive... button, the motor data set in the controller can be copied to the
»Engineer« when an online connection has been established.
When an online connection has been established to the controller, the Identification in
progress... button serves to automatically identify different motor data. Automatic
motor data identification ( 112)
The Encoder/feedback system... serves to get to the settings for the encoder/feedback
system, if available.Encoder/feedback system
( 217)
