Lenze 8400 StateLine C

Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011 L 349
8400 StateLine C | Reference manual
Technology applications
"GeneralPurpose" functions

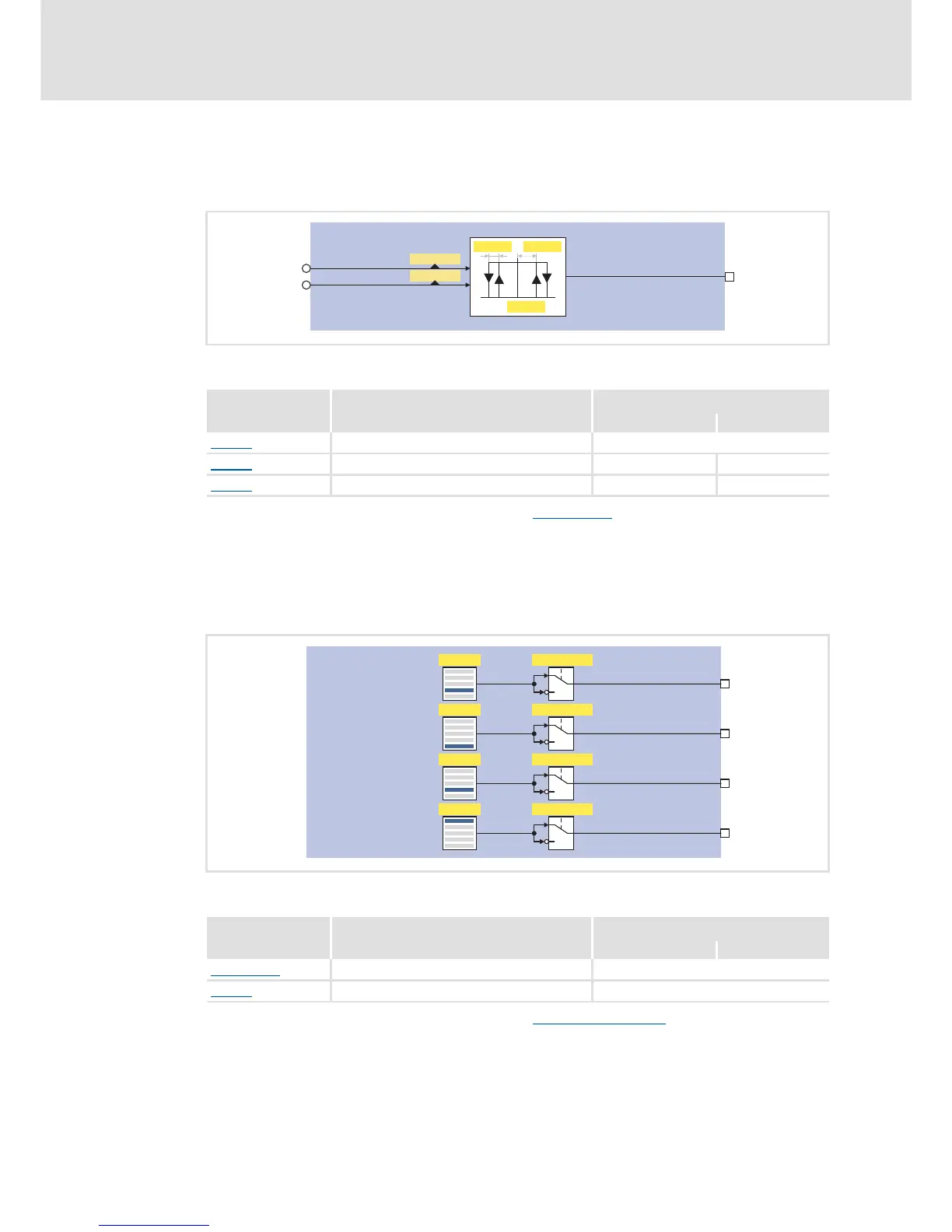

7.4.6 Analog comparison
This function compares two analog signals and can be used e.g. to realise a trigger. The
comparison operation, hysteresis and window size can be parameterised.
[7-10] GeneralPurpose function "Analog comparison"
 For a detailed functional description see FB L_Compare.
7.4.7 Binary signal monitor
This function serves to output four binary signals selected from a list of all binary output
signals available in the drive controller. You can set an inversion of the output signals.
[7-11] GeneralPurpose function "Binary signal monitor"
 For a detailed functional description see FB L_SignalMonitor_b.
bGPCompareOut
nGPCompareIn1_a
nGPCompareIn2_a
f
=
C00680
C00682C00681
C00830/16
C00830/17
Parameter Info Lenze setting
Value Unit
C00680 L_Compare_1: Fct. 6: |In1| < |In2|
C00681
L_Compare_1: Hysteresis 0.50 %
C00682
L_Compare_1: Window 2.00 %
bGPSignalOut1
C00411/1 C00412 - Bit 0
0
1
C00411/2
C00411/3
C00411/4
bGPSignalOut2
C00412 - Bit 1
0
1
bGPSignalOut3
C00412 - Bit 2
0
1
bGPSignalOut4
C00412 - Bit 3
0
1
Parameter Info Lenze setting
Value Unit
C00411/1...4 L_SignalMonitor_b: Signal 1 ... 4 0: Not connected
C00412
L_SignalMonitor_b: Inversion Bit coded
