8400 StateLine C | Reference manual
Working with the FB Editor
Using the FB Editor as "Viewer"
736 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011
15.3 Using the FB Editor as "Viewer"
The main purpose of the FB Editor is the individual configuration of the selected
technology application. However, you can also use the FB Editor to
make a diagnosis of the application (when an online connection has been established),
get a better understanding for the operating mode of the application,
use the interconnection as an alternative parameterisation access.
Diagnostics of the application

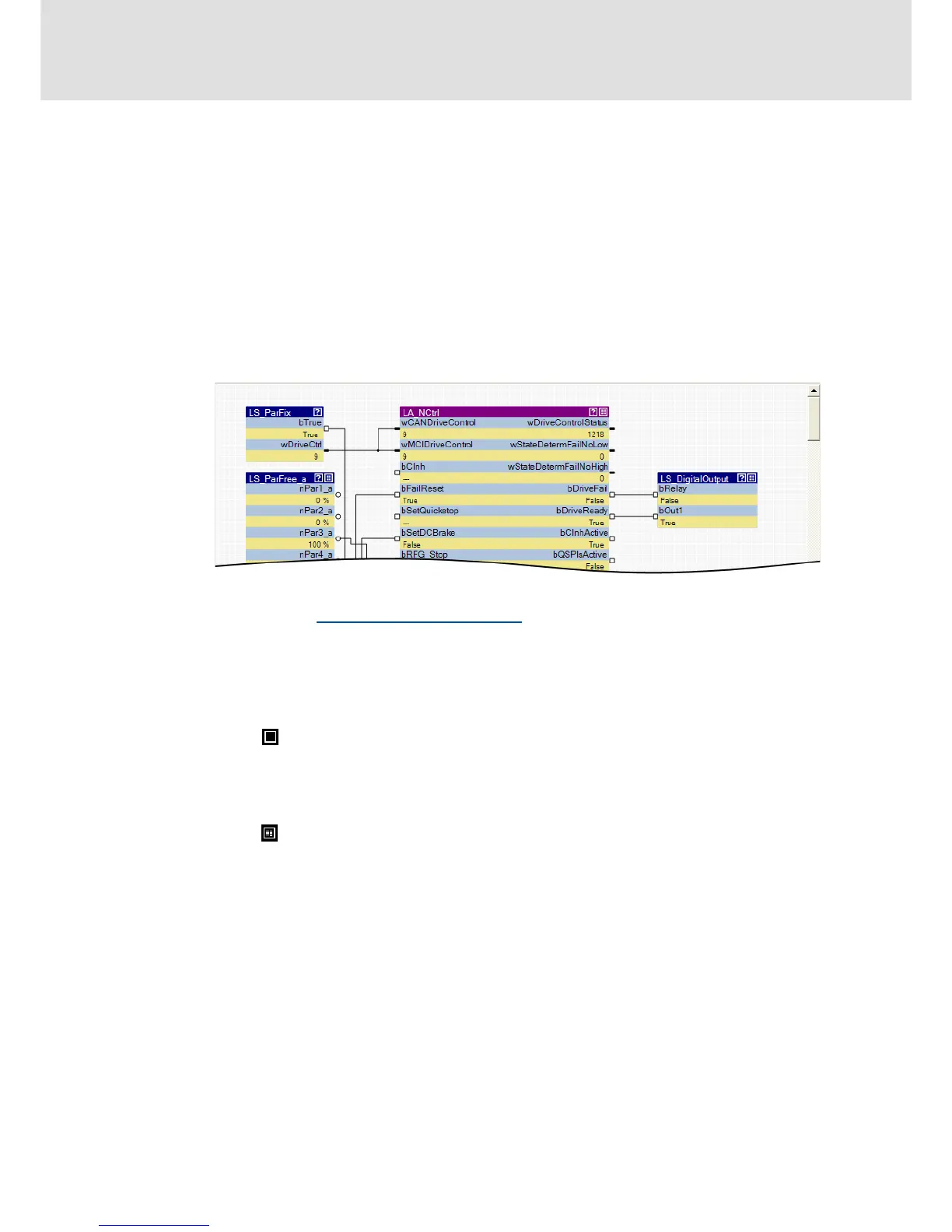

When an online connection to the controller has been established, the current values are
displayed at the inputs and outputs of the objects.
Process-scaled signals can be scaled in a "user-defined" way for easy diagnostics in the
FB Editor. Change online display format
( 739)
Getting a better understanding for the operating mode of the application
Make yourself familiar with the signal flow of the interconnection to get a better
understanding of the operating mode of the application or individual functional areas.
The symbol in the head of the block or the Help command in the context menu for
the block serve to open the online help for the block.
Using the interconnection as an alternative parameterisation access
The icon in the head of the module, a double-click on the module, or the Parameter...
command in the Context menu of the module serve to open the parameterisation
dialog or the parameter list for the module.
