Lenze 8400 StateLine C

8400 StateLine C | Reference manual
Technology applications
TA "Switch-off positioning"
330 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011

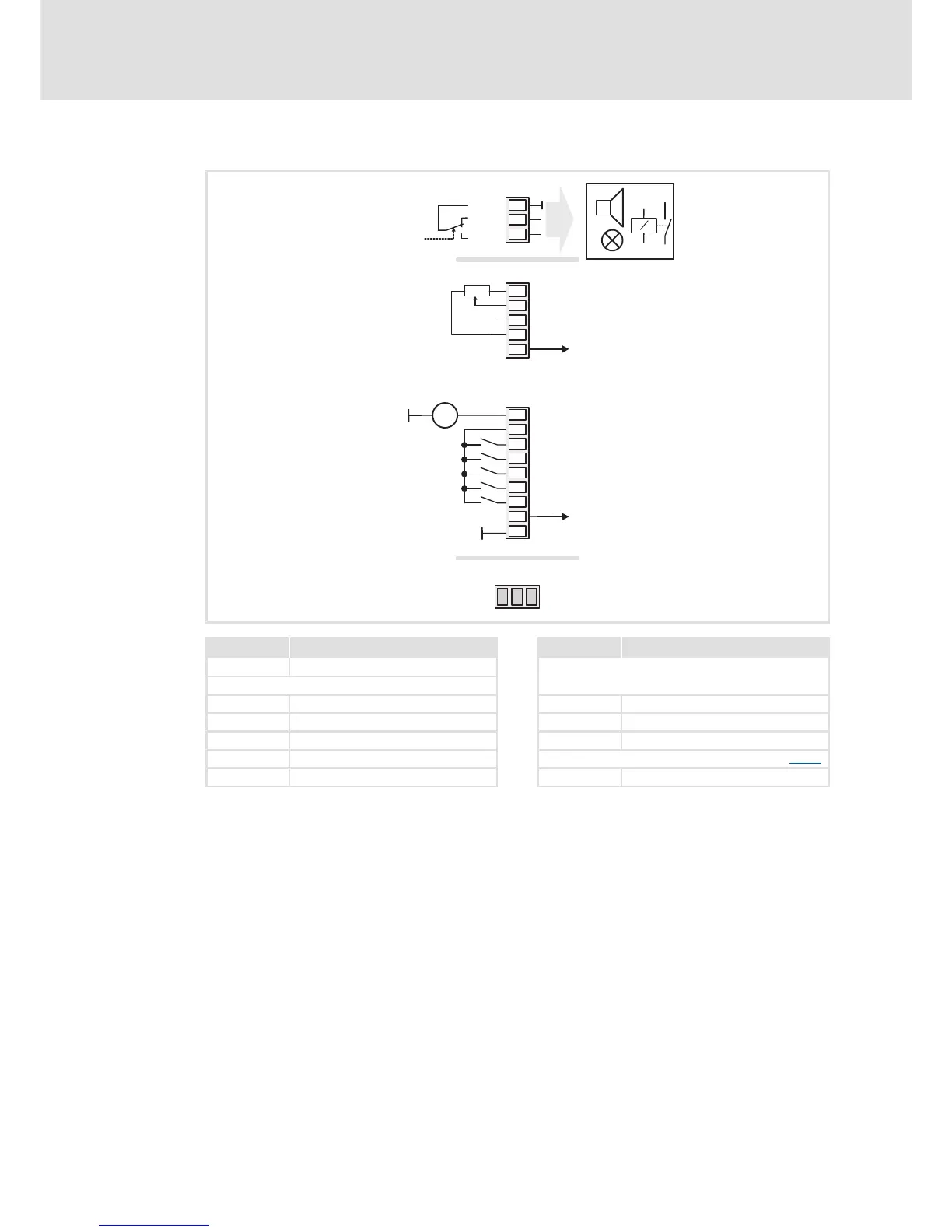

7.3.3.1 Terminals 0
Connection Assignment Connection Assignment
X101/NC-NO LA_SwitchPos.bDriveFail
X4/RFR - X3/A1U LA_SwitchPos.nMainSetValue_a *
X4/DI1 LA_SwitchPos.bJogCtrlJog1 X3/A1I -
X4/DI2 LA_SwitchPos.bJogCtrlJog2 X3/O1U -
X4/DI3 LA_SwitchPos.bFailReset * 10 V ≡ 100 % reference speed (C00011
)
X4/DI4 LA_SwitchPos.bSetSpeedCcw X4/DO1 LA_SwitchPos.bDriveReady
X4
X3
DI3
DI2
DI4
GIO
24I
DI1
RFR
AR
A1U
GA
A1I
24E
+
=
DO1
O1U
COM
NC
NO
X101
CG
CL
CH
X1
Fixed setpoint 1/3
Fixed setpoint 2/3
Reset error
Change of direction of rotation
External
supply
24 V DC
Speed setpoint
Controller enable
